    Fluke Corporation · 其他测试附件

    PVA-1500HE2 + TiS75+ 光伏测试组合套件

    PVA-1500HE2 · 20 to 1500V DC · 0 to 30A DC · 0 to 10A DC；0 to 30A DC
    PVA-1500HE2
    PVA-1500T2
    20 to 1500V DC
    Voltage Range (Voc)
    0 to 30A DC
    Module Efficiency < 19%
    0 to 10A DC；0 to 30A DC
    Module Efficiency ≥19%
    ±(0.5% ±0.25V)
    Voltage Accuracy (0 °C to 45 °C)
    ±(0.5% ±0.04A)
    Current Accuracy (0 °C to 45 °C)
    产品定位

    Fluke offers a variety of training related to PV test and measurement. Training can either be delivered as a virtual on-demand course or as a live online presentation/discussion format with a product expert (may differ regionally).

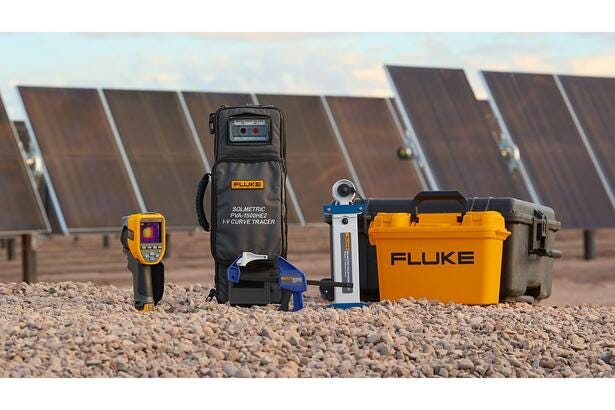

    Featuring the PVA-1500HE2 I-V Curve Tracer and the TiS75+ Thermal Camera,

    this toolkit is designed to streamline the inspection process and ensure optimal performance of solar arrays. The PVA-1500HE2 offers an array of advanced features,

    including high throughput I-V curve tracing,

    providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis,

    allowing for immediate identification of potential issues. Complementing this,

    the TiS75+ Thermal Camera provides precise thermal imaging to detect anomalies like hot spots and faulty connections. From commissioning and troubleshooting to routine inspections and performance optimization,

    this toolkit empowers solar professionals to maximize the efficiency and reliability of solar installations. Using a thermal camera such as the Fluke TiS75+ at a solar PV site can help improve system performance,

    reduce maintenance costs,

    and extend the life of the solar panels and related components. Thermal inspections with the Ti75+ can assist in:

    核心参数
    技术规格
    · PVA-1500T2：PVA-1500HE2
    · Voltage Range (Voc)：20 to 1500V DC
    Maximum Current Range (Isc)
    · Module Efficiency < 19%：0 to 30A DC
    · Module Efficiency ≥19%：0 to 10A DC；0 to 30A DC
    · Voltage Accuracy (0 °C to 45 °C)：±(0.5% ±0.25V)
    · Current Accuracy (0 °C to 45 °C)：±(0.5% ±0.04A)
    · Power Accuracy (0 °C to 45 °C)
    – ±(1.7 % + 1.0 W) (current ≥3 A, module efficiency < 19 %)
    · Voltage Resolution：25 mV
    功能与特点
    · This product is eligible for a promotion. Learn more
    · Measures and displays I-V curves up to 1500V and 30A, including on high efficiency modules
    · Advanced built-in PV model provides immediate PV performance checking
    · Wireless interfaces for faster setup, safer work environment, and freedom of movement during PV troubleshooting
    · Automates data management, analysis, and reporting
    · Identify hotspots that may indicate damaged or underperforming cells
    典型应用
    · 测试连接
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 pva-1500-thermography-kit-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 其他测试附件

    PVA-1500HE2 + TiS75+ 光伏测试组合套件 · 详细指标

    PVA-1500HE2 · 20 to 1500V DC · 0 to 30A DC · 0 to 10A DC；0 to 30A DC
    产品简介

    Fluke offers a variety of training related to PV test and measurement. Training can either be delivered as a virtual on-demand course or as a live online presentation/discussion format with a product expert (may differ regionally).

    完整技术指标
    技术规格
    · PVA-1500T2：PVA-1500HE2
    · Voltage Range (Voc)：20 to 1500V DC
    Maximum Current Range (Isc)
    · Module Efficiency < 19%：0 to 30A DC
    · Module Efficiency ≥19%：0 to 10A DC；0 to 30A DC
    · Voltage Accuracy (0 °C to 45 °C)：±(0.5% ±0.25V)
    · Current Accuracy (0 °C to 45 °C)：±(0.5% ±0.04A)
    · Power Accuracy (0 °C to 45 °C)
    – ±(1.7 % + 1.0 W) (current ≥3 A, module efficiency < 19 %)
    · Voltage Resolution：25 mV
    · Current Resolution：2 mA
    Measurement Throughput
    · Sweep-to-sweep delay (@VOC ≤ 1350V)：< 9 seconds
    · Max number of I-V sweeps per hour (@VOC ≤ 1350V)：400 sweeps/hr
    · Max megawatts measured per hour：3.5 MW/hr
    Thermal Capacity
    · # sweeps at 18 s sweep-to-sweep delay
    – unlimited (25 °C, 77 °F ambient) 550 (45 °C, 113 °F ambient)
    · # sweeps at 9s sweep-to-sweep delay
    – unlimited (25 °C, 77 °F ambient) 330 (45 °C, 113 °F ambient)
    · I-V Trace Points：100 or 500 (selectable)
    · I-V Sweep Duration
    – 0.05 to 2 seconds (typically 0.2 seconds for PV strings)
    · Operating Temperature Range：0 °C to 45 °C, 32 °F to 113 °F
    · Storage Temperature Range：-20 °C to 65 °C, -4 °F to 149 °F
    · Operating Humidity
    – < 90 % RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used.
    · Altitude：2000 m max
    · Battery Charging Time：6 hr
    · Battery Run Time Approx. 8 hr：Approx. 7 hr
    · Safety and Regulatory：CAT III 1500V IEC 61010-1: Pollution Degree 2
    · Warning Features
    – Over-voltage, over-current, over-temperature, reverse polarity
    · PV Connector Staubli MC4-EVO2：Banana Jacks
    · Charging/Charged LED：Yes
    · In-the-field firmware update-ready：Yes
    · Interface to Tablet/Laptop
    – Wi-Fi interface between user tablet or laptop, I-V unit and SolSensor
    · Weight：6.6 kg, 14.55 lb；7.3 kg, 16.09 lb
    · Height
    – 43.2 cm, 1.41 ft (including test lead and strain reliefs)；53.3 cm, 1.74 ft
    · Width：21.6 cm, 8.50 in
    · Depth：15.2 cm, 5.98 in
    PVA-1500 Test Lead and Clip Specifications
    · Voltage Range：0 to 1500V DC
    · Current Range：0 to 30A DC
    · Temperature：0 °C to 45 °C, 32 °F to 113 °F
    · Humidity
    – Maximum relative humidity of 80% for temperatures up to 31 °C (87.8 °F) decreasing linearly to 50% relative humidity at 40 °C (104 °F)
    · Pollution Degree：2
    · Altitude：2000 m, 6561 ft maximum
    · Lead Length：152 cm, 59.84 in
    · Lead Colors：Positive=red, negative=black
    · Manufacturer (Test Leads and Alligator Clips)：Staubli
    Irradiance
    · Measurement Range：100 W/m² to 1500 W/m²
    · Accuracy
    – ±2 % when used to predict the performance of well characterized poly- and monocrystalline PV modules with direct irradiance >600W/m²
    · Resolution：1 W/m²
    · Measurement Interval：Typically, 3.5 s
    温度
    · Sensor Type：Type K thermocouple, two inputs
    · Measurement Range：0 °C to 100 °C, 32 °F to 212 °F
    · Accuracy
    – ±2 °C, 35.6 °F (not including limits of error of thermocouple)
    · Resolution：0.1 °C, 32.18 °F
    · Measurement Interval：Typically, 3.5 s
    Tilt
    · Sensor Type：Electronic
    · Measurement Range：0 to 90° from horizontal
    · Accuracy：±2° typical (0 to 45°)
    一般规格
    · Measurement Synchronization with I-V Curve：Typically, < 1 s
    · Wireless Range (open line of sight)：100 m, 328 ft
    · Operating Temperature Range：0 ºC to 45 ºC, 32 ºF to 113 ºF
    · Storage Temperature Range：-20 ºC to 65 ºC, -4 ºF to 149 ºF
    · Operating Humidity
    – < 90% RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used.
    · Battery Charging Time：6 hr
    · Battery Run Time：>16 hr typical use
    · Infrared resolution：384 x 288 (110, 592 pixels)
    · IFOV：1.91 mRad
    · Field of view：42° x 30°
    · Minimum focus distance：0.15 m
    · Focus system：Manual focus
    · Wireless connectivity
    – Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi and LAN (where available)
    · Fluke Connect app compatible
    – Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    · Fluke Connect Assets optional software
    – Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location
    · Asset Tagging
    – Scan a QR code to automatically organize and file thermal images with Fluke Connect
    · IR-Fusion technology
    – AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image
    · Picture-InPicture (PIP)：Yes
    · Display
    – 3.5" (8.9 cm landscape) touchscreen 640 x 480 LCD
    · Ergonomic design：Designed for one-handed use
    · Thermal sensitivity：40mk
    · Level and span：Smooth auto and manual scaling
    · Fast auto-rescale in manual mode：Yes
    · Minimum span (in manual mode)：3° °C (4.5 °F)
    · Minimum span (In auto mode)：5°C (9.0 °F)
    · Built-in digital camera (visible light)：640 x 480
    · Frame rate：9 Hz or 27 Hz models
    · Dew point calculation：Yes
    · Color alarms
    – Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
    · Operating temperature：-10 °C to 50 °C (14 °F to 122 °F)
    · Storage temperature
    – -20 °C to 50 °C (-4 °F to 122 °F) without batteries
    · Relative humidity：10 % to 95 % non-condensing
    · Spot temperature：Center spot (unmovable)
    · User-definable spot markers
    – Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
    · User defined measurement boxes
    <
