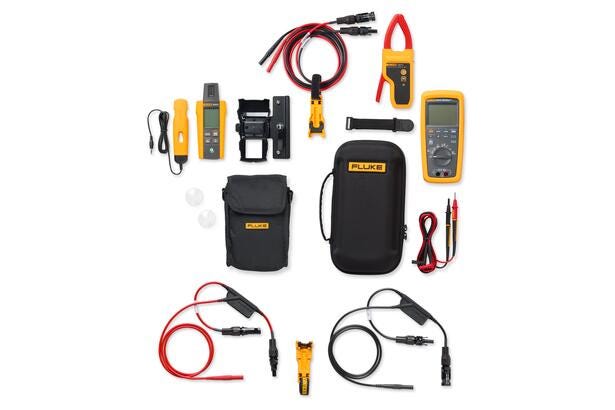

    Product overview: 283 FC/PV Solar Kit with IRR2-BT, TLPV1 and TLPV2 Test Leads The FLK-283FC-IRR-TLPV Solar Diagnostic Kit delivers a complete solution for photovoltaic (PV) commissioning, troubleshooting, and performance verifica。

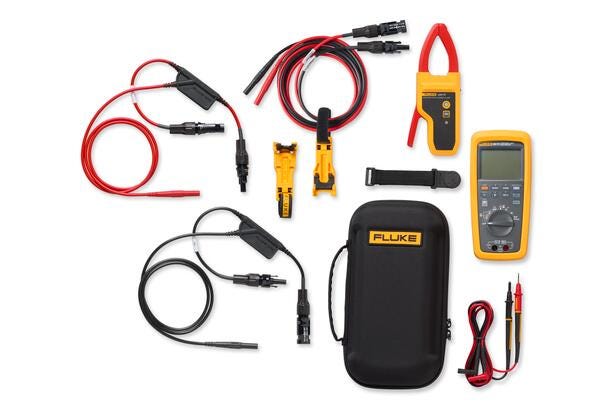

    The FLK-283FC-TLPV Solar Digital Multimeter Kit is designed for solar professionals who need advanced electrical troubleshooting capability on high-voltage photovoltaic (PV) systems. Built around the Fluke 283 FC/PV Solar Digital 。
    Fluke offers a variety of training related to PV test and measurement. Training can either be delivered as a virtual on-demand course or as a live online presentation/discussion format with a product expert (may differ regionally)。
    • «
    • 1

    SMFT-1000 多功能光伏测试仪|福禄克 (在产)

    All-in-one test solution to verify PV system performance and safety, expedite client reporting. Test that PV systems are performing to their optimal power output as well as operating safely with the Fluke SMFT-1000 multifunction t。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 其他测试附件

    SMFT-1000 多功能光伏测试仪

    4 V DC … 10 V DC · Yes · Up to 3 Ω · Yes · Yes (Automatic) · Yes
    4 V DC … 10 V DC
    Test voltage
    Yes
    Polarity reversing
    Up to 3 Ω
    Test lead zero (Rcomp)
    Yes
    Polarity test
    Yes (Automatic)
    Detection AC/DC
    Yes
    + / - polarity check
    产品定位

    All-in-one test solution to verify PV system performance and safety, expedite client reporting.

    Test that PV systems are performing to their optimal power output as well as operating safely with the Fluke SMFT-1000 multifunction tester with I-V curve tracing. Designed for PV professionals that provide installation,

    commissioning and maintenance services to systems that operate at 1000 V DC or under,

    the SMFT-1000 provides a complete PV testing solution that conforms to IEC 62446-1 standards. Through Fluke’s TruTest Software,

    measurement data from solar site installation and commissioning testing can be easily imported,

    organized and analyzed for effortless reporting without having to bring a laptop on-site.

    核心参数
    Protective conductor resistance (R Lo)
    · 0.00 Ω - 19.99 Ω
    – Measuring range：0.20 Ω - 19.99 Ω
    – 分辨率：0.01 Ω
    – 精度：± (2 % + 2 Digit)
    · 20.0 Ω- 199.9 Ω
    – Measuring range：20.0 Ω - 199.9 Ω
    – 分辨率：0.1 Ω
    – 精度：± (2 % + 2 Digit)
    · 200 Ω - 2000 Ω
    – Measuring range：200 Ω - 2000 Ω
    – 分辨率：1 Ω
    – 精度：± (5 % + 2 Digit)
    · Test current：≥ 200 mA (≤ 2Ω + Rcomp)
    · Test voltage：4 V DC … 10 V DC
    · Polarity reversing：Yes
    · Test lead zero (Rcomp)：Up to 3 Ω
    PV module/PV string, open-circuit voltage (Voc)
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    功能与特点
    · This product is eligible for a promotion. Learn more
    · For testing systems with rated module efficiencies over 19%, the PVA-1500HE2 is recommended. Please review this application note for details
    · All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
    · Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
    · Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
    · On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen, accurately measures modules with an efficiency of up to approximately 19%
    · Compatible with Fluke TruTest data management software
    典型应用
    · 测试连接
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 smft-1000-pv-tester-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 其他测试附件

    SMFT-1000 多功能光伏测试仪 · 详细指标

    4 V DC … 10 V DC · Yes · Up to 3 Ω · Yes · Yes (Automatic) · Yes
    产品简介

    All-in-one test solution to verify PV system performance and safety, expedite client reporting.

    完整技术指标
    Protective conductor resistance (R Lo)
    · 0.00 Ω - 19.99 Ω
    – Measuring range：0.20 Ω - 19.99 Ω
    – 分辨率：0.01 Ω
    – 精度：± (2 % + 2 Digit)
    · 20.0 Ω- 199.9 Ω
    – Measuring range：20.0 Ω - 199.9 Ω
    – 分辨率：0.1 Ω
    – 精度：± (2 % + 2 Digit)
    · 200 Ω - 2000 Ω
    – Measuring range：200 Ω - 2000 Ω
    – 分辨率：1 Ω
    – 精度：± (5 % + 2 Digit)
    · Test current：≥ 200 mA (≤ 2Ω + Rcomp)
    · Test voltage：4 V DC … 10 V DC
    · Polarity reversing：Yes
    · Test lead zero (Rcomp)：Up to 3 Ω
    PV module/PV string, open-circuit voltage (Voc)
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · 0.0 V - 99.9 V
    – Measuring range：5.0 V - 99.9 V
    – 分辨率：0.1 V
    – 精度：± (0.5 % + 2 Digit)
    · 100 V - 1000 V
    – Measuring range：100 V - 1000 V
    – 分辨率：1 V
    – 精度：± (0.5 % + 2 Digit)
    · Polarity test：Yes
    PV module/PV string, short-circuit current (Is/c)
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · 0.0 A - 20.0 A
    – Measuring range：0.2 A - 20.0 A
    – 分辨率：0.1 A
    – 精度：± (1 % + 2 Digit)
    Insulation resistance (R INS)
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · 0.00 M Ω - 99.99 MΩ
    – Measuring range：0.20 M Ω - 99.99 MΩ
    – 分辨率：0.01 M Ω
    – 精度：± (5 % + 5 Digit)
    · 100.0 M Ω - 199.9 MΩ
    – Measuring range：100.0 M Ω - 199.9 MΩ
    – 分辨率：0.1 M Ω
    – 精度：± (10 % + 5 Digit)
    · 200 M Ω - 999 MΩ
    – Measuring range：200 M Ω - 999 MΩ
    – 分辨率：1 M Ω
    – 精度：± (20 % + 5 Digit)
    ·
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · Test voltage @ no load
    – Measuring range：50 V / 100 V / 250 V up to 199.9 M Ω 500 V / 1000 V up to 999 MΩ
    – 分辨率：1 V
    – 精度：0 % to + 20 %
    · Test voltage @ ≥ 1 mA
    – Measuring range：250 V @ 250 k Ω 500 V @ 500 kΩ 1000 V @ 1 MΩ
    – 分辨率：1 V
    – 精度：0 % to + 10 %
    · Testing current
    – Min. 1 mA (@ 250 kΩ / 500 kΩ / 1 MΩ) Max. 1.5 mA (short circuit)
    Blocking diode checking (Vbd)
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · 0.00 V DC - 6.00 V DC
    – Measuring range：0.50 V DC - 6.00 V DC
    – 分辨率：0.01 V DC
    – 精度：± (5 % + 10 Digit)
    Surge protection device (SPD)
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · 0 V DC - 1000 V DC
    – Measuring range：50 V DC - 1000 V DC
    – 分辨率：1 V DC
    – 精度：± (10 % + 5 Digit)
    AC/DC voltage measurement via 4 mm test sockets
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy
    · 0.0 V AC - 99.9 V AC
    – Measuring range：5.0 V AC - 99.9 V AC
    – 分辨率：0.1 V
    – 精度：± (2.5 % + 2 Digit)
    · 100 V AC - 700 V AC
    – Measuring range：100 V AC - 700 V AC
    – 分辨率：1 V
    – 精度：± (2.5 % + 2 Digit)
    · 0.0 V DC - 99.9 V DC
    – Measuring range：5.0 V DC - 99.9 V DC
    – 分辨率：0.1 V
    – 精度：± (2.5 % + 2 Digit)
    · 100 V DC - 1000 V DC
    – Measuring range：100 V DC - 1000 V DC
    – 分辨率：1 V
    – 精度：± (2.5 % + 2 Digit)
    · Detection AC/DC：Yes (Automatic)
    · + / - polarity check：Yes
    AC/DC current with i100 clamp
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Resolution
    – 精度：Accuracy (DC, AC 50 Hz/60 Hz)
    · 0.0 A DC – 100 A DC
    – Measuring range：1.0 A DC – 100 A DC
    – 分辨率：0.1 A
    – 精度：± (5 % + 2 Digit) *
    · 0.0 A AC – 100 A AC TRMS
    – Measuring range：1.0 A AC – 100 A AC TRMS
    – 分辨率：0.1 A
    – 精度：± (5 % + 2 Digit) *
    技术规格
    · Display range
    – Measuring range：Measuring range
    – 分辨率：Output signal
    – 精度：Accuracy (DC, AC 50 Hz/60 Hz)
    · N/A
    – Measuring range：1 A - 100 A DC or AC < 1 kHz
    – 分辨率：10 mV/A AC/DC
    – 精度：± (1.5 % + 0.1 A)
    AC/DC Power measurement (with i100 clamp)
    · Display range
    – Measuring range：Measuring range
    <span style="color:#C880
