VXT PXI 矢量收发器
模块化 PXI 射频矢量收发器
产品简介

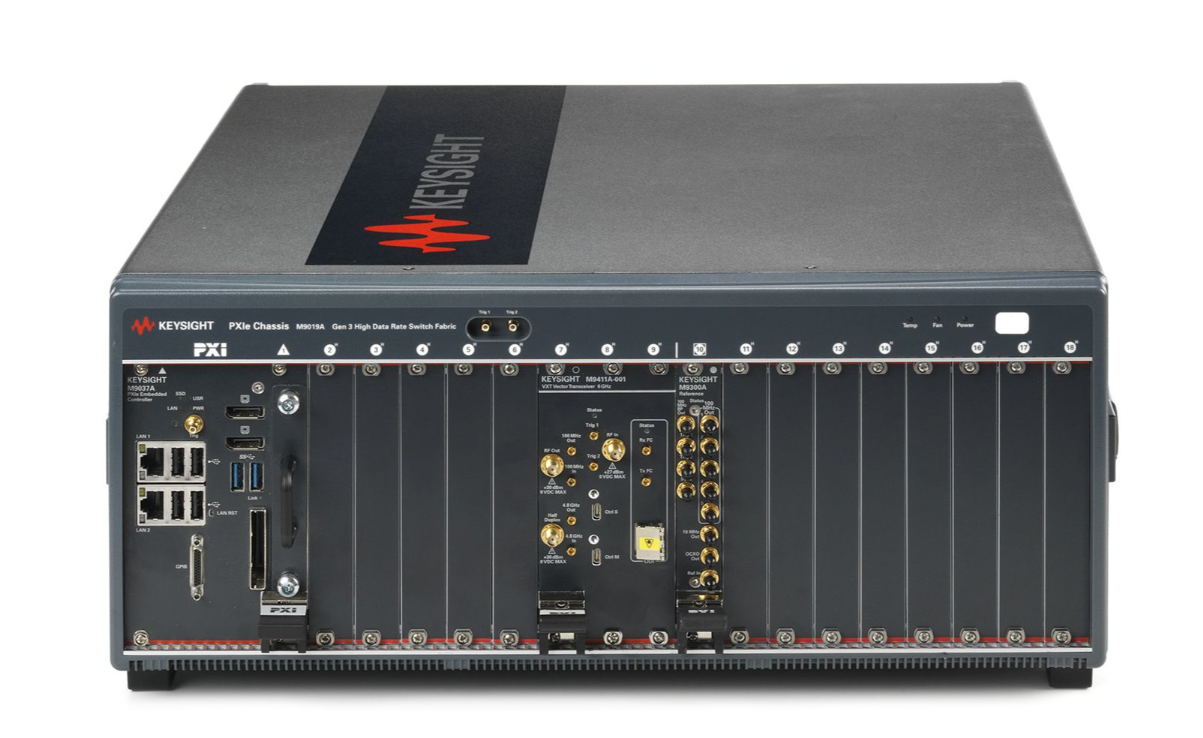

M9411A PXI 矢量收发器（VXT）是一款 3 插槽 PXI 模块，它集成了 VSG 和 VSA 的功能，并具有 1.2 GHz 的瞬时带宽、定制 FPGA 以及光纤 I/O 接口。
核心参数
• 基带发生器存储容量：256MSa, 512MSa
• 1 GHz 显示平均噪声电平：-163 dBm
• 频率：6 GHz
• 发生器/分析仪带宽：1.2 GHz
• 1 GHz 谐波：<-44 dBc
• 1 GHz 非谐波：<-75 dBc
• 1 GHz 输出功率：-120 dBm 至 +20 dBm
• 带宽选件：300 MHz, 600 MHz, 1.2 GHz
• 频率选件：6 GHz
• 性能等级：◆◆◆◆◇◇
• 波形播放存储：512 MSa
• 最高频率：6 GHz
• 插槽数：3
• 形态：PXI module
• 类型：矢量收发信机
• 平台：PXIe
• 模块类型：矢量收发信机
• 最大带宽：1.2 GHz
功能特性
• 产品亮点
VXT PXIe 矢量收发器将 6 GHz 矢量信号发生器和矢量信号分析仪集成于一个 3 插槽 PXIe 模块中。
信号生成与分析带宽最高可达 1.2 GHz，可满足 5G 先进测试的需求
在同类产品中拥有更出色的射频性能，包括输出功率、相位噪声和幅度精度，可为设计验证和生产测试提供更大的测试裕度
使用与台式仪器相同的测量应用软件，包括PathWave 信号生成软件、X系列测量应用软件和矢量信号分析软件，能够支持广泛的应用
可在设计验证和生产阶段执行多通道（MIMO）和多站点测试
使用 S9101A 5G 多频段矢量收发机，可将频率范围扩展至毫米波（FR2）
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
VXT系列M9411A 1MHz 至6 GHz矢量收发信机0.3/0.6/1.2GHz带宽 详细指标
模块化 PXI 射频矢量收发器
一、技术规格
术语定义和条件
条件：this document are specifications under the following conditions unless otherwise noted.
module, and 20 to 35 °C for environment temperature unless otherwise noted
• Specifications describe the warranted performance of calibrated instruments. Data represented in
• Specifications are valid from 45 to 75 °C for individual module temperature, as reported by the
• Calibrated instrument has been stored for a minimum of 2 hours within the allowed operating range
• If instrument has previously been stored at a temperature range inside the allowed storage range, but
outside the allowed operating range, instrument must have been stored for a minimum of 2 hours
within the allowed operating range before turn-on
• 45-minute warm-up time with the Modular TRX application running
• 校准周期 maintained
条件：Typical describes additional product performance information that is not covered by the product warranty.
(approximately 25 °C) after alignment within the stated alignment time and temperature limits.
Nominal values indicate expected performance or describe product performance that is useful in the
application of the product but are not covered by the product warranty.
• When used with Keysight M9300A frequency reference and Keysight interconnect cables
• An “All Alignment” has been run within the previous
7 days
• A “Fast Alignment” has been run: o Within the previous 8 hours o If the environmental temperature has changed more than
5°C from the previous Fast Alignment
It is performance beyond specifications that 95 percent of the units exhibit with a
95 percent confidence
level. This data does not include measurement uncertainty and is valid only at room temperature
Recommended best practices in use
• Use slot blockers and EMC filler panels in empty module slots to ensure proper operating
temperatures. Keysight chassis and slot blockers optimize module temperature performance and
reliability of test
• Set chassis fan to high at environmental temperatures above
35 °C.
Capture depth
Standard (Option M02)
256 MSa of IQ data
Option M05
512 MSa of IQ data
Standard (Option F06)
380 MHz to 6 GHz
Option M9411A-LFE
1 to 380 MHz
Accuracy, aging rate, stability Refer to M9300A specifications
CW ± (marker frequency x frequency reference accuracy + 0.10% x span +
5% x RBW +
2 Hz +
0.5 x horizontal resolution)
Demodulation ± (center frequency × frequency reference accuracy +
1 Hz)
Resolution
1 Hz
Center frequency Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Standard (Option B3X)
380 to 550 MHz 100 MHz
100 MHz
550 to 1310 MHz 200 MHz
200 MHz
1310 to 5930 MHz 300 MHz
300 MHz
5930 to 6000 MHz (6080 MHz – center
frequency) × 2
300 MHz
Option B6X
380 to 550 MHz 100 MHz
100 MHz
550 to 1310 MHz 200 MH
200 MHz
1310 to 5780 MHz 600 MHz
600 MHz
5780 to 6000 MHz (6080 MHz – center
frequency) × 2
600 MHz
适用型号选件 B12
380 to 550 MHz 100 MHz
100 MHz
550 to 1310 MHz 200 MHz
200 MHz
1310 to 1900 MHz 600 MHz
600 MHz
1900 to 2000 MHz 600 MHz
1200 MHz
2000 to 5480 MHz 1200 MHz
1200 MHz
5480 to 6000 MHz (6080 MHz – center
frequency) × 2
1200 MHz
IQ analyzer Free run, External 1, External
2, RF burst, Video, Periodic, PXI, Internal
Trigger delay range
–150 to 500 ms
Resolution
1/sample rate
平均功率输入
RF input port
+27 dBm
Option HDX, Half duplex port
+27 dBm
DC volts
RF input port
30 Vdc
Option HDX, Half duplex port
30 Vdc
Serial prefix < MY6020
1
RF 输入端口
Frequency range
–70 dBm ≤ Input level
< –30 dBm
–30 dBm ≤ Input level
≤ –8 dBm
–8 dBm < Input level
≤ +27 dBm
380 to 680 MHz < ± 0.45 dB < ± 0.45 dB <
± 0.45 dB
< ± 0.20 dB typical < ± 0.20 dB typical <
± 0.20 dB typical
680 to 910 MHz < ± 0.45 dB < ± 0.45 dB <
± 0.50 dB
< ± 0.25 dB typical < ± 0.20 dB typical <
± 0.25 dB typical
910 to 1310 MHz < ± 0.55 dB < ± 0.55 dB <
± 0.60 dB
< ± 0.30 dB typical < ± 0.30 dB typical <
± 0.35 dB typical
1310 to 2000 MHz < ± 0.60 dB < ± 0.65 dB <
± 0.65 dB
< ± 0.35 dB typical < ± 0.35 dB typical <
± 0.35 dB typical
2000 to 3500 MHz < ± 0.70 dB < ± 0.80 dB <
± 0.60 dB
< ± 0.40 dB typical < ± 0.45 dB typical <
± 0.30 dB typical
3500 to 4500 MHz < ± 0.65 dB < ± 0.70 dB <
± 0.75 dB
< ± 0.35 dB typical < ± 0.35 dB typical <
± 0.35 dB typical
4500 to 5400 MHz < ± 0.90 dB < ± 0.95 dB <
± 0.85 dB
< ± 0.45 dB typical < ± 0.45 dB typical <
± 0.45 dB typical
5400 to 6000 MHz < ± 1.20 dB < ± 1.15 dB <
± 1.05 dB
< ± 0.60 dB typical < ± 0.60 dB typical <
± 0.55 dB typical
Half duplex 端口, 选件 HDX
条件：1. Signal is measured at 100 kHz offset from the center frequency, Otherwise, an IF flatness error must be added.
Frequency range
–70 dBm ≤ Input level
< –30 dBm
–30 dBm ≤ Input level
≤ –8 dBm
–8 dBm < Input level
≤ +27 dBm
380 to 910 MHz < ± 0.50 dB < ± 0.35 dB <
± 0.45 dB
< ± 0.25 dB typical < ± 0.20 dB typical <
± 0.25 dB typical
910 to 1310 MHz < ± 0.60 dB < ± 0.45 dB <
± 0.55 dB
< ± 0.35 dB typical < ± 0.25 dB typical <
± 0.30 dB typical
1310 to 3500 MHz < ± 0.75 dB < ± 0.70 dB <
± 0.65 dB
< ± 0.40 dB typical < ± 0.35 dB typical <
± 0.30 dB typical
3500 to 4500 MHz < ± 0.95 dB < ± 0.80 dB <
± 0.80 dB
< ± 0.50 dB typical < ± 0.40 dB typical <
± 0.35 dB typical
4500 to 5400 MHz < ± 1.15 dB < ± 0.95 dB <
± 1.00 dB
< ± 0.65 dB typical < ± 0.50 dB typical <
± 0.55 dB typical
5400 to 6000 MHz < ± 1.35 dB < ± 1.10 dB <
± 1.05 dB
< ± 0.75 dB typical < ± 0.55 dB typical <
± 0.55 dB typical
最大安全输入电平
条件：Absolute amplitude accuracy (CW mode) 1. Signal is measured at 1.1 MHz offset from the center frequency, Otherwise, an IF flatness error must be added. 2. nominal, when us ed with M9300A -S01
Serial prefix ≥ MY6020, with Opt. EP6
1
RF 输入端口, Half duplex 端口 (选件 HDX)
Frequency range –70 dBm ≤ Input level < –30 dBm –30 dBm ≤ Input level ≤
+27 dBm
1 to 10 MHz < ± 0.15 dB typical <
± 0.15 dB typical
10 to 150 MHz < ± 0.95 dB, < ± 0.40 dB typical < ± 0.40 dB, <
± 0.15 dB typical
150 to 380 MHz < ± 0.70 dB, < ± 0.25 dB typical < ± 0.45 dB, <
± 0.15 dB typical
Frequency range –70 dBm ≤ Input level ≤
+27 dBm
380 to 680 MHz < ± 0.45 dB, <
± 0.20 dB typical
680 to 1900 MHz < ± 0.60 dB, <
± 0.30 dB typical
1900 to 2700 MHz < ± 0.70 dB, <
± 0.30 dB typical
2700 to 4700 MHz < ± 0.85 dB, <
± 0.40 dB typical
4700 to 5200 MHz < ± 0.80 dB, <
± 0.35 dB typical
5200 to 6000 MHz < ± 0.85 dB, <
± 0.45 dB typical
Input Voltage Standing Wave Ratio (VSWR)
条件：Serial prefix < MY6020 RF input port, nominal Half Duplex Port, nominal
Figure 1. Nominal phase noise from 1 kHz to 5 MHz offset at 1 and 5.8 GHz
1. –50 dBc for frequencies from 5100 to 5930 MHz.
380 to 1310 MHz < 1.7:1 <
1.4:1
1310 to 2000 MHz < 1.8:1 <
1.4:1
2000 to 3500 MHz < 1.6:1 <
1.4:1
3500 to 4500 MHz < 1.7:1 <
1.7:1
4500 to 5200 MHz < 1.7:1 <
1.6:1
5200 to 6000 MHz < 2.1:1 <
1.6:1
Serial prefix ≥ MY6020,
with Opt. EP6 RF input port Half Duplex Port
1 to 380 MHz < 2.8:1, < 2.5:1 typical <2.4:1, <
2.2:1 typical
380 to 1310 MHz < 1.9:1, < 1.7:1 typical < 1.6:1, <
1.5:1 typical
1310 to 2000 MHz < 1.7:1, < 1.5:1 typical < 1.5:1, <
1.4:1 typical
2000 to 3500 MHz < 2.0:1, < 1.8:1 typical < 1.7:1, <
1.5:1 typical
3500 to 4500 MHz < 1.9:1, < 1.7:1 typical < 1.8:1, <
1.6:1 typical
4500 to 5200 MHz < 1.6:1, < 1.4:1 typical < 1.6:1, <
1.4:1 typical
5200 to 6000 MHz < 2.0:1, < 1.7:1 typical < 2.1:1, <
1.8:1 typical
Phase noise sidebands (CF =
1 GHz)
Frequency offset Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Used with M9300A or M9300A-S01
1 kHz –110 dBc/Hz, typical 2 –100 dBc/Hz
–110 dBc/Hz typical
10 kHz –129 dBc/Hz, typical 2 –123 dBc/Hz
–129 dBc/Hz typical
100 kHz –132 dBc/Hz, typical 2 –126 dBc/Hz
–132 dBc/Hz typical
1 MHz –134 dBc/Hz, typical 2 –129 dBc/Hz
–134 dBc/Hz typical
5 MHz –137 dBc/Hz, typical 2 –133 dBc/Hz
–137 dBc/Hz typical
RF input port; Option HDX, half duplex port; with analyzer ranged to 0 dBm
Serial prefix < MY6020
1 to 380 MHz <
–81 dBm typical
380 to 6000 MHz <
–81 dBm typical, offset from 10 MHz to ½ × analysis bandwidth
Serial prefix ≥ MY6020, with Opt. EP6
1 to 380 MHz < –75 dBm, <
–81 dBm typical
380 to 6000 MHz < –75 dBm, <
–81 dBm typical, offset from 10 MHz to ½ × analysis bandwidth
Maximum bandwidth Center frequency Serial prefix < MY6020
100 MHz 380 to 550 MHz
–57 dBc
200 MHz 550 to 1310 MHz
–59 dBc
300 MHz 1310 to 5930 MHz –56 dBc
1
600 MHz 1310 to 5780 MHz
–48 dBc
1200 MHz 2000 to 5480 MHz
–49 dBc
Image responses, typical
条件：1. – 57 dBc for frequencies from 1300 to 1310 MHz.
2. dBr is LO feedthrough power relative to the range level of the receiver .
Maximum bandwidth Center frequency Serial prefix ≥ MY6020, with Opt. EP6
100 MHz
380 to 460 MHz
–53 dBc
460 to 550 MHz
–57 dBc
200 MHz
550 to 650 MHz
–60 dBc
650 to 1310 MHz –63 dBc
1
300 MHz 1310 to 6000 MHz
–55 dBc
600 MHz 1310 to 6000 MHz
–54 dBc
1200 MHz 1900 to 6000 MHz
–54 dBc
Frequency range Offset 1 to 10 MHz 1 to 250 kHz –85 dBc 10 to 20 MHz 1 kHz to 2.5 MHz –85 dBc 20 to 60 MHz 1 kHz to 5 MHz
–85 dBc
60 to 6000 MHz 1 kHz to 10 MHz
–85 dBc
Serial prefix < MY6020 RF input port, with analyzer ranged
from –10 to +27 dBm
Option HDX, half duplex port, with analyzer ranged from 0 to +27 dBm 380 to 450 MHz –58 dBr, typical –58 dBr, typical 450 to 550 MHz –56 dBr, typical
–53 dBr, typical
550 to 680 MHz –53 dBr, typical
–54 dBr, typical
680 to 910 MHz –55 dBr, typical
–57 dBr, typical
910 to 1310 MHz –53 dBr, typical
–55 dBr, typical
1310 to 2000 MHz –52 dBr, typical
–53 dBr, typical
2000 to 3500 MHz –50 dBr, typical
–49 dBr, typical
3500 to 4500 MHz –50 dBr, typical
–52 dBr, typical
4500 to 5100 MHz –47 dBr, typical
–45 dBr, typical
5100 to 6000 MHz –44 dBr, typical
–42 dBr, typical
Serial prefix ≥ MY6020, with Opt. EP6 RF input port, with analyzer ranged
from –10 to +27 dBm
Option HDX, half duplex port, with analyzer ranged from 0 to +27 dBm 380 to 450 MHz –35 dBr, –46 dBr typical –35 dBr, –46 dBr typical 450 to 4600 MHz –41 dBr, –53 dBr typical –41 dBr
–53 dBr typical
4600 to 6000 MHz –41 dBr, –51 dBr typical –41 dBr
–51 dBr typical
Sideband spurs, nominal
条件：380 to 4000 MHz +27 dBm, nominal
4000 to 6000 MHz +23 dBm, nominal
1. Input terminated, log power average, and normalized to 1 Hz bandwidth.
2. DANL in dBm/Hz relative to the range level of the receiver
LO feedthrough (dBr
2)
Serial prefix < MY6020
Frequency range RF input port, with analyzer ranged to –70 dBm
Half duplex port, Option HDX, with analyzer ranged to –70 dBm 380 to 680 MHz –157 dBm/Hz, –160 dBm/Hz typical –151 dBm/Hz, –154 dBm/Hz typical 680 to 910 MHz –160 dBm/Hz, –163 dBm/Hz typical –154 dBm/Hz
–157 dBm/Hz typical
910 to 1310 MHz –156 dBm/Hz, –159 dBm/Hz typical –151 dBm/Hz
–154 dBm/Hz typical
1310 to 2000 MHz –162 dBm/Hz, –165 dBm/Hz typical –156 dBm/Hz
–159 dBm/Hz typical
2000 to 3500 MHz –158 dBm/Hz, –162 dBm/Hz typical –153 dBm/Hz
–156 dBm/Hz typical
3500 to 4500 MHz –158 dBm/Hz, –162 dBm/Hz typical –151 dBm/Hz
–154 dBm/Hz typical
4500 to 6000 MHz –152 dBm/Hz, –155 dBm/Hz typical –145 dBm/Hz
–148 dBm/Hz typical
Serial prefix ≥ MY6020, with Opt. EP6
Frequency range RF input port, with analyzer ranged to –70 dBm
Half duplex port, Option HDX, with analyzer ranged to –70 dBm 1 to 10 MHz –157 dBm/Hz, –162 dBm/Hz typical –156 dBm/Hz, –161 dBm/Hz typical 10 to 380 MHz –160 dBm/Hz, –164 dBm/Hz typical –158 dBm/Hz
–163 dBm/Hz typical
380 to 680 MHz –159 dBm/Hz, –162 dBm/Hz typical –157 dBm/Hz
–160 dBm/Hz typical
680 to 1310 MHz –160 dBm/Hz, –163 dBm/Hz typical –158 dBm/Hz
–161 dBm/Hz typical
1310 to 2000 MHz –162 dBm/Hz, –166 dBm/Hz typical –161 dBm/Hz
–164 dBm/Hz typical
2000 to 3500 MHz –161 dBm/Hz, –164 dBm/Hz typical –158 dBm/Hz
–161 dBm/Hz typical
3500 to 4500 MHz –160 dBm/Hz, –163 dBm/Hz typical –157 dBm/Hz
–160 dBm/Hz typical
4500 to 6000 MHz –158 dBm/Hz, –161 dBm/Hz typical –154 dBm/Hz
–157 dBm/Hz typical
Serial prefix ≥ MY6020, with Opt. EP6, RF input port, half duplex port
0 to +20 dBm range
380 to 6000 MHz –139 dBr 2, –143 dBr
2 typical
Serial prefix < MY6020
Serial prefix ≥ MY6020, with Opt. EP6
10 to 380 MHz +19 dBm
+22 dBm typical
380 to 4000 MHz +19 dBm
+25 dBm typical
4000 to 6000 MHz +17dBm
+21 dBm typical
Maximum bandwidth Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
100 MHz ± 1.10 dB, ± 0.80 dB typical ± 0.75 dB
± 0.40 dB typical
200 MHz ± 1.35 dB, ± 1.00 dB typical ± 0.80 dB
± 0.40 dB typical
300 MHz ± 1.25 dB, ± 0.90 dB typical ± 0.80 dB
± 0.45 dB typical
600 MHz ± 1.45 dB, ± 0.90 dB typical ± 1.20 dB
± 0.70 dB typical
1200 MHz ± 1.80 dB, ± 1.00 dB typical ± 1.20 dB
± 0.70 dB typical
Displayed Average Noise Floor (DANL)
1
Third-order Intermodulation distortion (TOI, with analyzer ranged to 0 dBm)
任意波形 sample 存储 (存储 capacity)
Standard (Option M02)
256 MSa of IQ data
Option M05
512 MSa of IQ data
Center frequency Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Standard (Option B3X)
380 to 550 MHz 100 MHz
100 MHz
550 to 1310 MHz 200 MHz
200 MHz
1310 to 5930 MHz 300 MHz
300 MHz
5930 to 6000 MHz (6080 MHz – center
frequency) × 2
300 MHz
Option B6X
380 to 550 MHz 100 MHz
100 MHz
550 to 1310 MHz 200 MHz
200 MHz
1310 to 5780 MHz 600 MHz
600 MHz
5780 to 6000 MHz (6080 MHz – center
frequency) × 2
600 MHz
适用型号选件 B12
条件：1. Switching speed depends highly upon the hardware and controller that is used. Measurements were made with the M9410A in
an M9018B chassis with the M9037A embedded controller , Windows 10 Operating Sys tem .
380 to 550 MHz 100 MHz
100 MHz
550 to 1310 MHz 200 MHz
200 MHz
1310 to 1900 MHz 600 MHz
600 MHz
1900 to 2000 MHz 600 MHz
1200 MHz
2000 to 5480 MHz 1200 MHz
1200 MHz
5480 to 6000 MHz (6080 MHz – center
frequency) × 2
1200 MHz
Standard (Option F06)
380 MHz to 6 GHz
Option M9411A-LFE
1 to 380 MHz
Accuracy, aging rate, stability Refer to M9300A specifications ± (output frequency × frequency reference accuracy +
0.001 Hz)
SCPI mode ≤
14 ms nominal
IVI mode ≤
10 ms nominal
频率参考
Frequency switching speed
1
RF output port 1 to 20 MHz –120 to 0 dBm 20 MHz to 6 GHz
–120 to +5 dBm
Option HDX, half duplex port (configured to output mode) 380 MHz to 6 GHz
–120 to +5 dBm
RF output port, Option
1EA
60 MHz to 6 GHz –120 to +20 dBm
+25 dBm settable
最大值 reverse 功率
条件：1. Switching speed depends highly upon the hardware and controller that is used. Measurements were made with the M9410A in an
M9018B chassis with the M9037A embedded controller, Windows 10 Operating System.
Average power input
+27 dBm
DC volts
30 Vdc
SCPI mode ≤
14 ms nominal
IVI mode ≤
10 ms nominal
Figure
2. Measured relative level accuracy at 1 GHz
输出电平范围 (CW 模式)
Amplitude switching speed
1
RF output port
1 to 20 MHz
Level ≤ 0 dBm to –15 dBm <
± 0.70 dB typical
Level ≤ –15 dBm to –80 dBm <
± 0.50 dB typical
Level ≤ –80 dBm to –120 dBm <
± 0.50 dB typical
20 to 60 MHz
Level ≤ +5 dBm to –15 dBm < ± 0.40 dB, <
± 0.25 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.55 dB, <
± 0.35 dB typical
Level ≤ –80 dBm to –120 dBm < ± 0.55 dB, <
± 0.35 dB typical
60 to 380 MHz
Level ≤ +20 dBm to –15 dBm < ± 0.45 dB, <
± 0.25 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.50 dB, <
± 0.30 dB typical
Level ≤ –80 dBm to –120 dBm < ± 0.55 dB, <
± 0.30 dB typical
380 to 550 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +20 dBm to –15 dBm < ± 0.60 dB, < ± 0.35 dB typical < ± 0.60 dB, <
± 0.25 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.70 dB, < ± 0.35 dB typical < ± 0.70 dB, <
± 0.30 dB typical
Level ≤ –80 dBm to –120 dBm < ± 0.80 dB, < ± 0.40 dB typical < ± 0.80 dB, <
± 0.40 dB typical
550 to 2000 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +20 dBm to –15 dBm < ± 0.70 dB, < ± 0.40 dB typical < ± 0.60 dB, <
± 0.30 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.70 dB, < ± 0.40 dB typical < ± 0.70 dB, <
± 0.35 dB typical
Level ≤ –80 dBm to –110 dBm < ± 0.85 dB, < ± 0.50 dB typical < ± 0.75 dB, <
± 0.35 dB typical
2000 to 3900 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +20 dBm to –15 dBm < ± 0.60 dB, < ± 0.35 dB typical < ± 0.60 dB, <
± 0.30 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.80 dB, < ± 0.45 dB typical < ± 0.80 dB, <
± 0.40 dB typical
Level ≤ –80 dBm to –110 dBm < ± 1.30 dB, < ± 0.75 dB typical < ± 1.00 dB, <
± 0.50 dB typical
3900 to 5700 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +20 dBm to –15 dBm < ± 0.80 dB, < ± 0.40 dB typical < ± 0.70 dB, <
± 0.35 dB typical
Level ≤ –15 dBm to –80 dBm < ± 1.10 dB, < ± 0.60 dB typical < ± 1.10 dB, <
± 0.55 dB typical
Level ≤ –80 dBm to –100 dBm < ± 1.20 dB, < ± 0.65 dB typical < ± 1.20 dB, <
± 0.55 dB typical
5700 to 6000 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +20 dBm to –15 dBm < ± 0.80 dB, < ± 0.40 dB typical < ± 0.70 dB, <
± 0.35 dB typical
Level ≤ –15 dBm to –80 dBm < ± 1.10 dB, < ± 0.60 dB typical < ± 1.10 dB, <
± 0.55 dB typical
Level ≤ –80 dBm to –90 dBm < ± 1.20 dB, < ± 0.65 dB typical < ± 1.20 dB, <
± 0.55 dB typical
Level ≤ –90 dBm to –100 dBm < ± 1.20 dB, <
± 0.55 dB typical
绝对电平精度 (CW 模式)
条件：Delta from initial value < ± 0.10 dB nominal
Option HDX, half duplex port
380 to 550 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +5 dBm to –15 dBm < ± 0.50 dB, < ± 0.30 dB typical < ± 0.50 dB, <
± 0.25 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.75 dB, < ± 0.35 dB typical < ± 0.75 dB, <
± 0.35 dB typical
Level ≤ –80 dBm to –90 dBm < ± 0.75 dB, < ± 0.45 dB typical < ± 0.75 dB, <
± 0.35 dB typical
Level ≤ –90 dBm to –110 dBm < ± 0.75 dB, <
± 0.35 dB typical
550 to 2000 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +5 dBm to –15 dBm < ± 0.55 dB, < ± 0.35 dB typical < ± 0.55 dB, <
± 0.25 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.70 dB, < ± 0.45 dB typical < ± 0.70 dB, <
± 0.35 dB typical
Level ≤ –80 dBm to –90 dBm < ± 0.80 dB, < ± 0.55 dB typical < ± 0.80 dB, <
± 0.40 dB typical
Level ≤ –90 dBm to –110 dBm < ± 0.80 dB, <
± 0.40 dB typical
2000 to 3900 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +5 dBm to –15 dBm < ± 0.50 dB, < ± 0.30 dB typical < ± 0.60 dB, <
± 0.30 dB typical
Level ≤ –15 dBm to –80 dBm < ± 0.80 dB, < ± 0.55 dB typical < ± 0.80 dB, <
± 0.45 dB typical
Level ≤ –80 dBm to –90 dBm < ± 1.10 dB, < ± 0.75 dB typical < ± 0.90 dB, <
± 0.50 dB typical
Level ≤ –90 dBm to –100 dBm < ± 0.90 dB, <
± 0.50 dB typical
3900 to 6000 MHz Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Level ≤ +5 dBm to –15 dBm < ± 0.90 dB, < ± 0.55 dB typical < ± 0.80 dB, <
± 0.45 dB typical
Level ≤ –15 dBm to –80 dBm < ± 1.25 dB, < ± 0.80 dB typical < ± 1.15 dB, <
± 0.65 dB typical
Level ≤ –80 dBm to –90 dBm < ± 1.35 dB, <
± 0.70 dB typical
RF output port, 0 dBm output power, 1 GHz, 24 hours elapsed time without alignment
25 °C
0.01 dB
RF 输出端口
条件：380 to 4200 MHz < 1.7:1 typical, < 1.6:1 nominal < 1.8:1, < 1.6:1 typical
4200 to 5000 MHz < 1.8:1 typical, < 1.7:1 nominal < 1.7:1, < 1.6:1 typical
5000 to 6000 MHz < 1.8:1 typical, < 1.7:1 nominal < 1.9:1, < 1.7:1 typical
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
1 to 380 MHz < 1.9:1, <
1.7:1 typical
选件 HDX, half duplex 端口 (configured 至输出模式)
条件：380 to 4000 MHz < 1.7:1 nominal < 1.8:1, < 1.6:1 typical
4000 to 5000 MHz < 2.1:1 nominal < 1.8:1, < 1.6:1 typical
5000 to 6000 MHz < 2.4:1 nominal < 2.3:1, < 2.0:1 typical
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Output Voltage Standing Wave Ratio (VSWR)
条件：with Option 1EA Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
with Option 1EA Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
RF output port 0 dBm output power Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6 380 to 3000 MHz –65 dBc nominal < –43 dBc, < –55 dBc typical 3000 to 5000 MHz –55 dBc nominal < –40 dBc, < –50 dBc typical
5000 to 6000 MHz –50 dBc nominal < –35 dBc, < –45 dBc typical
RF output port 0 dBm output power Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6 1 to 10 MHz < –36 dBc typical < –32 dBc, < –36 dBc typical 10 to 380 MHz < –42 dBc typical < –38 dBc, <
–42 dBc typical
380 to 6000 MHz < –44 dBc typical < –39 dBc, <
–44 dBc typical
+10 dBm output power,
60 to 380 MHz < –38 dBc typical < –35 dBc, <
–38 dBc typical
380 to 6000 MHz < –35 dBc typical < –32 dBc, <
–35 dBc typical
Option HDX, half duplex port 0 dBm output power Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6 380 to 6000 MHz < –42 dBc typical < –42 dBc, <
–45 dBc typical
RF output port 0 dBm output power Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6 10 to 380 MHz < –50 dBc, < –60 dBc typical 380 to 6000 MHz < –65 dBc typical < –65 dBc, <
–75 dBc typical
+10 dBm output power,
60 to 380 MHz < –50 dBc, <
–60 dBc typical
380 to 6000 MHz < –65 dBc typical < –65 dBc, <
–75 dBc typical
Option HDX, half duplex port 0 dBm output power Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6 380 to 3900 MHz < –65 dBc typical < –65 dBc, < –75 dBc typical 3900 to 6000 MHz < –63 dBc typical < –65 dBc, <
–75 dBc typical
LO feedthrough
条件：100 MHz 380 to 550 MHz –55 dBc nominal
200 MHz 550 to 1310 MHz –55 dBc nominal
300 MHz 1310 to 5930 MHz –50 dBc nominal
600 MHz 1310 to 5780 MHz –50 dBc nominal
1200 MHz 2000 to 5480 MHz –50 dBc nominal
100 kHz to 1 MHz –80 dBc nominal
RF output port
–10 dBm output power
Maximum bandwidth Center frequency Serial prefix < MY6020
Maximum bandwidth Center frequency Serial prefix ≥ MY6020, with Opt. EP6
100 MHz 380 to 550 MHz –50 dBc
–55 dBc typical
200 MHz 550 to 1310 MHz –50 dBc
–55 dBc typical
300 MHz 1310 to 6000 MHz –45 dBc
–50 dBc typical
600 MHz 1310 to 6000 MHz –40 dBc
–47 dBc typical
1200 MHz 1900 to 5800 MHz –40 dBc
–45 dBc typical
RF output port, 0 dBm; Option HDX, half duplex port, 0 dBm; Option 1EA
+10 dBm
Serial prefix < MY6020
Offset
380 to 6000 MHz
1 to 100 kHz
–75 dBc nominal
1 to 10 MHz
–80 dBc nominal
Serial prefix ≥ MY6020, with Opt. EP6
Offset 20 to 380 MHz
380 to 6000 MHz
1 to 100 kHz –65 dBc, –75 dBc typical –65 dBc
–80 dBc typical
100 kHz to 10 MHz –65 dBc, –75 dBc typical –70 dBc
–80 dBc typical
RF output port, 0 dBm; Option HDX, half duplex port, 0 dBm; Option 1EA, +10 dBm; Center frequency =
1 GHz
Frequency offset Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Used with M9300A or M9300A-S01
1 kHz –113 dBc/Hz, typical –105 dBc/Hz
–113 dBc/Hz typical
10 kHz –130 dBc/Hz, typical –124 dBc/Hz
–130 dBc/Hz typical
100 kHz –137 dBc/Hz, typical –133 dBc/Hz
–137 dBc/Hz typical
1 MHz –140 dBc/Hz, typical –137 dBc/Hz
–140 dBc/Hz typical
5 MHz –139 dBc/Hz, typical –137 dBc/Hz
–139 dBc/Hz typical
相位噪声
条件：Figure 3. Nominal phase noise from 1 kHz to 10 MHz offset at 1 and 5.8 GHz
380 to 550 MHz –136 dBm/Hz, nominal –132 dBm/Hz, –135 dBm/Hz typical
550 to 1000 MHz –140 dBm/Hz, nominal –134 dBm/Hz, –136 dBm/Hz typical
1000 to 4500 MHz –141 dBm/Hz, nominal –134 dBm/Hz, –138 dBm/Hz typical
4500 to 6000 MHz –137 dBm/Hz, nominal –134 dBm/Hz, –137 dBm/Hz typical
380 to 550 MHz –146 dBm/Hz, nominal –141 dBm/Hz, –144 dBm/Hz typical
550 to 1000 MHz –149 dBm/Hz, nominal –143 dBm/Hz, –145 dBm/Hz typical
1000 to 4500 MHz –147 dBm/Hz, nominal –143 dBm/Hz, –146 dBm/Hz typical
4500 to 6000 MHz –145 dBm/Hz, nominal –143 dBm/Hz, –146 dBm/Hz typical
1. Measured at 13.1 MHz offset from the center frequency .
RF output port, output level =
0 dBm
Frequency range Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
20 to 380 MHz –129 dBm/Hz
–132 dBm/Hz typical
Option HDX, half duplex port, output level =
–10 dBm
Frequency range Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
RF output port, output level =
0 dBm
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
1 to 20 MHz +13 dBm typical +12 dBm
+13 dBm typical
20 to 380 MHz +19 dBm typical +17 dBm
+19 dBm typical
380 to 3900 MHz +28 dBm typical +26 dBm
+28 dBm typical
3900 to 4500 MHz +27 dBm typical +26 dBm
+27 dBm typical
4500 to 6000 MHz +25 dBm typical +22 dBm
+25 dBm typical
Broadband noise floor
1
Third-阶互调失真 (TOI)
Option HDX, half duplex port, output level =
–10 dBm
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
380 to 4500 MHz +18 dBm typical +16 dBm
+18 dBm typical
4500 to 6000 MHz +15 dBm typical +12 dBm
+15 dBm typical
RF output port, Option HDX, half duplex port, output level =
–10 dBm
最大值幅度误差
Maximum bandwidth Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
20 MHz ± 0.24 dB typical 1 ± 0.40 dB
± 0.26 dB typical
100 MHz ± 0.50 dB typical ± 0.65 dB
± 0.39 dB typical
200 MHz ± 0.80 dB typical ± 0.80 dB
± 0.45 dB typical
300 MHz ± 1.00 dB typical ± 0.95 dB
± 0.60 dB typical
600 MHz ± 1.00 dB typical ± 1.45 dB
± 0.80 dB typical
1200 MHz ± 1.50 dB typical ± 1.80 dB
± 1.00 dB typical
最大值相位误差
条件：Frequency Maximum bandwidth Peak-to-peak (nominal) RMS (nominal)
1. The value is typical for RF output port, or nominal for half duplex port .
Serial prefix ≥ MY6020, with Opt. EP6
1000 MHz 100 MHz 1.5°
0.3°
4000 MHz
100 MHz
300 MHz
600 MHz
1200 MHz
1.0°
2.2°
5.9°
14.1°
0.3°
0.6°
1.3°
3.4°
5000 MHz
100 MHz
300 MHz
600 MHz
1200 MHz
1.5°
6.2°
11.2°
14.8°
0.4°
2.0°
3.5°
4.2°
二、通用规格
Operating temperature
+5 to +45 °C
Storage temperature
–40 to +65 °C
Complies with European EMC Directive
2014/30/EU
• IEC/EN
61326-1
• CISPR 11, Group
1, Class A
• AS/NZS CISPR
11
• ICES/NMB-001
This ISM device complies with Canadian ICES-001
Cet appareil ISM est conforme a la norme NMB-001 du Canada
Environmental stress
条件：vibration, altitude, and power line conditions; test methods are aligned with
Samples of this product have been type tested in accordance with the
Keysight Environmental Test Manual and verified to be robust against the
environmental stresses of storage, transportation, and end-use; those
stresses include, but are not limited to, temperature, humidity, shock,
IEC 60068-2 and levels are similar to MILPRF-28800F Class
3.
M9410A
88 W nominal
M9411A
114 W nominal
M9410A
1.2 kg (2.6 lbs)
M9411A
1.5 kg (3.3 lbs)
M9410A (H x W x D) 130.1 mm x 40.6 mm x
210 mm
M9411A (H x W x D) 130.1 mm x 60.9 mm x
210 mm
The recommended calibration cycle is one year; calibration services are available through Keysight service
三、环境规格
校准周期
条件：Connector: MMPX female, 50 Ω nominal
Input amplitude: > +10 dBm, nominal
Output amplitude: > +10 dBm, nominal
Connector: MMPX female, 50 Ω nominal
Input amplitude: > +10 dBm, nominal
Output amplitude: > +12 dBm, nominal
RF Input Connector: SMA female, 50 Ω nominal
RF Output Connector: SMA female, 50 Ω nominal
Half Duplex Connector: SMA female, 50 Ω nominal
Front Panel 100 MHz In
100 MHz Out
Lock range
± 1 ppm, nominal
4.8 GHz In
4.8 GHz Out
Trigger 1, Trigger
2
连接器: MMPX female
条件：Input impedance: 1 kΩ or 50 Ω nominal
Input level range
0 to +3.3 V
Output impedance
50 Ω nominal
Output level range
3.3 V LVTTL
Connector: Micro-HDMI female
Level range
3.3 V LVTTL, LVDS
四、MIMO Timing Synchronization Specifications
信号分析仪信号 generator
条件：1. Jitter indicates measurement -to -measurement variation and applies over short time interval at room temperature without
Timing skew ≤ 200 ps ≤
200 ps
Timing jitter 1 ≤ 50 ps ≤
50 ps
Repeatability 2 ≤ 50 ps ≤
50 ps
resetting or reinitializing a driver session. 2. Repeatability indicates stability of alignment between channels across power cycles and IVI sessions, with identical cabling and hardware settings (frequency, span, sample rate, etc.)
五、Spectrum 分析仪测量 Application 主要指标
RF input port, input level from –70 dBm to +27 dBm
Frequency range Serial prefix < MY6020
380 to 660 MHz < ± 0.75 dB, <
± 0.30 dB typical
660 to 720 MHz < ± 0.80 dB, <
± 0.45 dB typical
720 to 1900 MHz < ± 0.85 dB, <
± 0.35 dB typical
1900 to 4770 MHz < ± 1.05 dB, <
± 0.65 dB typical
4770 to 4950 MHz < ± 1.30 dB, <
± 0.70 dB typical
4950 to 6000 MHz < ± 1.10 dB, <
± 0.60 dB typical
Frequency range Serial prefix ≥ MY6020, with Opt. EP6
380 to 410 MHz < ± 0.75 dB, <
± 0.45 dB typical
410 to 1900 MHz < ± 0.70 dB, <
± 0.30 dB typical
1900 to 3550 MHz < ± 0.95 dB, <
± 0.50 dB typical
3550 to 3950 MHz < ± 1.05 dB, <
± 0.70 dB typical
3950 to 4500 MHz < ± 1.05 dB, <
± 0.65 dB typical
4500 to 4570 MHz < ± 1.20 dB, <
± 0.70 dB typical
4570 to 5320 MHz < ± 0.90 dB, <
± 0.50 dB typical
5320 to 5660 MHz < ± 1.10 dB, <
± 0.60 dB typical
5660 to 6000 MHz < ± 0.95 dB, <
± 0.50 dB typical
RF 输入端口
条件：380 to 1310 MHz < 1.8:1, < 1.7:1 nominal < 1.9:1, < 1.7:1 typical
1310 to 2000 MHz < 1.6:1, < 1.5:1 nominal < 1.6:1, < 1.4:1 typical
2000 to 3500 MHz < 1.8:1, < 1.7:1 nominal < 1.9:1, < 1.6:1 typical
3500 to 4500 MHz < 1.6:1, < 1.5:1 nominal < 1.8:1, < 1.6:1 typical
4500 to 5200 MHz < 2.0:1, < 1.8:1 nominal < 1.7:1, < 1.4:1 typical
5200 to 6000 MHz < 2.3:1, < 2.0:1 nominal < 2.0:1, < 1.7:1 typical
1 kHz offset –121 dBc/Hz nominal –104 dBc/Hz, –113 dBc/Hz typical
10 kHz offset –133 dBc/Hz nominal –125 dBc/Hz, –131 dBc/Hz typical
100 kHz offset –135 dBc/Hz nominal –130 dBc/Hz, –135 dBc/Hz typical
1 MHz offset –137 dBc/Hz nominal –131 dBc/Hz, –136 dBc/Hz typical
5 MHz offset –140 dBc/Hz nominal –135 dBc/Hz, –139 dBc/Hz typical
1. Signal at the center frequency, in 40 MHz span (380 to 550 MHz) or 80 MHz span (550 to 6000 MHz). Otherwise, an additional
± 0.6 dB nominal IF flatness error must be added.
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6;
Used with M9300A or M9300A-S01
Absolute amplitude accuracy (CW mode)
1
输入电压 Standing Wave Ratio (VSWR), 典型值
Phase noise sidebands (CF =
1 GHz)
Residual responses
条件：380 to 550 MHz, 40 MHz span < –90 dBm nominal < –90 dBm, < –95 dBm typical
550 to 6000 MHz, 80 MHz span < –90 dBm nominal < –90 dBm, < –95 dBm typical
RF input port; with analyzer ranged to 0 dBm
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
输入 related spurs, 标称值
条件：Sideband spurs, nominal 1 kHz to 10 MHz offset –80 dBc
380 to 4000 MHz +27 dBm nominal +24 dBm, +28 dBm typical
4000 to 6000 MHz +23 dBm nominal +18 dBm, +22 dBm typical
1. Input terminated, log power average, SW preselection off, and normalized to 1 Hz bandwidth.
RF input port; input CW signal within span, with analyzer ranged to 0 dBm
380 to 550 MHz, 40 MHz span <
–76 dBc
550 to 6000 MHz, 80 MHz span <
–76 dBc
RF input port, with analyzer ranged to –70 dBm
Frequency range Serial prefix < MY6020
380 to 1320 MHz –155 dBm/Hz
–160 dBm/Hz typical
1320 to 2540 MHz –153 dBm/Hz
–158 dBm/Hz typical
2540 to 3070 MHz –152 dBm/Hz
–157 dBm/Hz typical
3070 to 3570 MHz –153 dBm/Hz
–157 dBm/Hz typical
3570 to 5200 MHz –152 dBm/Hz
–156 dBm/Hz typical
5200 to 5750 MHz –150 dBm/Hz
–154 dBm/Hz typical
5750 to 6000 MHz –146 dBm/Hz
–152 dBm/Hz typical
Frequency range Serial prefix ≥ MY6020, with Opt. EP6
380 to 1900 MHz –156 dBm/Hz
–160 dBm/Hz typical
1900 to 5200 MHz –152 dBm/Hz
–157 dBm/Hz typical
5200 to 6000 MHz –151 dBm/Hz
–156 dBm/Hz typical
RF input port, with analyzer ranged to 0 dBm
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
RF input port, two-tone with 100 kHz spacing, with analyzer ranged to 0 dBm
380 to 6000 MHz
+2 dBm
RF input port, relative to 0 dBm input level, with analyzer ranged to 0 dBm
−80 dBm ≤ input level ≤ 0 dBm
±0.07 dB
Spurious responses
条件：Third-order Intermodulation distortion (TOI) 1 dB gain compression point, nominal
Displayed Average Noise Floor (DANL)
1
显示刻度 fidelity, 典型值
条件：1. For M9410A and M9411A with serial prefix ≥ MY6020, with Opt. EP6.
2. Peak deviation, modulation index (“beta”), and modulation rate are related by Peak Deviation = Modulation Index × Rate.
3. This specification applies to the result labeled “(Pk -Pk)/2”.
4. rfa = Modulation Rate × frequency reference accuracy.
5. SINAD [dB] can be derived by 20 × log10(1/ Distortion). SINAD bandwidth: (Channel BW)/2.
6. 10 to 1310 MHz, 1 kHz rate, 1 kHz deviation, residual distortion < 0.11%
7. 2nd and 3 rd harmonics, Rate: 1 to 10 kHz, ModIndex: 0.2 to 100
Analog Demodulation Measurement Application Key Specifications
1
FM deviation Peak deviation
200 Hz to 400 kHz
Deviation accuracy 3 ±(0.01 × rrrrrrrrrrrrrr +
0.002 × RRrr RRrr) [HHHH]
FM rate
20 Hz to 50 kHz
Channel BW ≤
1 MHz
Rate accuracy
4
10 to 1310 MHz ±((8 × 10−6/MMMMrrMMrr rrrr MM + 2 × 1
0−6) × RRrr rrrrrrrrrr ) + rrrr rr [HHHH]
1310 to 3000 MHz ±((1. 5 × 10−5/MMMMrrMMrr rrrr MM + 3 × 1
0−6) × RRrr rrrrrrrrrr ) + rrrr rr [HHHH]
Residual distortion
6
10 to 380 MHz
0.8/(MMMMrrMMrrrrrrMM)
2 +
0.1 [%]
380 to 1310 MHz
1.7/(MMMMrrMMrr rrrrMM)
2 +
0.1 [%]
1310 to 3000 MHz
1.0/(MMMMrrMMrr rrrrMM)
2 +
0.1 [%]
Distortion Accuracy
7
Distortion (SINAD) and THD ±(0.02 × rrrrrrrrrrrrrr + DDrrDDRRRRrrDDrrrrDDrrDD) [%]
AM depth
1% to 99%
Depth accuracy
3
10 to 380 MHz ±(0.004 × rrrrrrrrrrrrrr +
0.02) [%]
380 to 1310 MHz ±(0.007 × rrrrrrrrrrrrrr +
0.02) [%]
1310 to 3000 MHz ±(0.005 × rrrrrrrrrrrrrr +
0.02) [%]
AM rate
50 Hz to 100 kHz
Channel BW
5 times of rate
Rate accuracy 4 ±((0. 8 ×
10−6 × rrrrrrrrrrrrrr) × (100%/DDrrDDRRℎ) + rrrr rr [HHHH]
Residual distortion
5
10 to 380 MHz 0 .03 × (100%/DDrrDDRRℎ) +
0 .02 [%]
380 to 3000 MHz 0 .03 × (100%/DDrrDDRRℎ) +
0 .01 [%]
PM deviation Peak deviation
0.2 to 100 rad
Deviation accuracy 3 ±(0.001 × rrrrrrrrrrrrrr + 0.007) [rrrrrr], rate ≥
100 Hz
PM rate
50 Hz to 50 kHz
Channel BW ≤
1 MHz
Beta
0.2 to 2000
相位调制
条件：1. rfa = Modulation Rate × frequency reference accuracy.
2. SINAD [dB] can be derived by 20 × log10(1/ Distortion). SINAD bandwidth: (Channel BW)/2.
1. For M9410A and M9411A with serial prefix ≥ MY6020, with Opt. EP6.
Rate accuracy
1
10 to 1310 MHz
Rate ≤
500 Hz ±(0.0005/DDrrDDrrrr RRrrMMrr) + rrrrrr [HHHH]
Rate > 500 Hz ±(0.
008/DDrrDDrrrr RRrrMMrr) + rrrr rr [HHHH]
1310 to 3000 MHz
Rate ≤ 500 Hz ±(0.
0015/DDrrDDrrrr RRrrMMrr) + rrrr rr [HHHH]
Rate > 500 Hz ±(0.
01/DDrrDDrr rrRRrrMMrr) + rrrr rr [HHHH]
Residual distortion
2
10 to 380 MHz 0 .4/DDrrDDrr rrRRrrMMrr +
0 .01 [%]
380 to 1310 MHz 0.7/DDrrDDrr rrRRrrMMrr +
0 .01 [%]
1310 to 3000 MHz 0 .4/DDrrDDrr rrRRrrMMrr +
0 .01 [%]
Analog Modulation Source Key Specifications
1
Deviation accuracy,1 kHz rate, 1 to 100 kHz deviation
0 dBm output power
1 to 3000 MHz <
1.3%
Residual distortion, 1 kHz rate, 5 to 100 kHz deviation
0 dBm output power
1 to 3000 MHz <
0.6%
FM residual
15 kHz channel bandwidth
1 to 3000 MHz <
4 Hz
Depth error, 1 kHz rate
30% to 95% depth
1 to 30 MHz, –10 dBm output power <
2.6%
30 to 60 MHz, –5 dBm output power <
1.1%
60 to 3000 MHz, 0 dBm output power <
1.4%
Residual distortion
1 kHz rate
1 to 30 MHz
–10 dBm output power
30% depth <
1.0%
50% depth <
1.0%
90% depth <
1.3%
30 to 60 MHz
–5 dBm output power
30% depth <
0.6%
50% depth <
0.5%
90% depth <
0.5%
60 to 3000 MHz
0 dBm output power
30% depth <
0.7%
50% depth <
0.7%
90% depth <
0.9%
Deviation accuracy, 1 kHz rate, rad ≥ 0.5
0 dBm output power
1 to 3000 MHz <
1.2%
Residual distortion, 1 kHz rate, rad ≥ 1
0 dBm output power
1 to 3000 MHz <
0.2% typical
相位调制
条件：Figure 4. Nominal instrument noise figure
1. For M9411A with serial prefix ≥ MY6020, with Opt. EP6 .
Absolute power accuracy ± 0.49 dB nominal at 0 dBm input power
Average floor 0.30º nominal at 0 dBm input power
Peak floor 0.85º nominal at 0 dBm input power
RMS floor 0.65% nominal at 0 dBm input power
Peak floor 2.0% nominal at 0 dBm input power
Noise figure measurement application key specifications
1
GSM/EDGE/Evo measurement application key specifications
1
Residual relative power, spectrum due to switching
条件：Offset frequency 600 kHz –72 dBc nominal at 0 dBm input power 1.2 MHz –74 dBc nominal at 0 dBm input power 1.8 MHz –75 dBc nominal at 0 dBm input power
GSM/EDGE/Evo source key specifications
2
相位误差 (GMSK)
RMS <
0.3° nominal
Peak <
2.0° nominal
RMS <
1% nominal
偏置 GSM, 标称值
Half duplext/RF output (0 dBm)
EDGE, 标称值
条件：1. For frequencies from 450 to 490 MHz, 820 to 920 MHz, and 1710 to 1910 MHz .
2. For frequencies from 380 to 490 MHz, 695 to 960 MHz, and 1425 to 2180 MHz .
Half duplext/RF output (0 dBm)
200 kHz –35 dBc
–36 dBc
400 kHz –68 dBc
–68 dBc
600 kHz –76 dBc
–76 dBc
1200 kHz –80 dBc
–80 dBc
1800 kHz –76 dBc
–76 dBc
EDGE 误差矢量幅度 (EVM)
Output RF spectrum (ORFS for GMSK and 8PSk modulation)
Signal quality (RF output port, Half duplex port
0 dBm)
Output RF spectrum (ORFS)
条件：Absolute power accuracy ±0.48 dB nominal at 0 dBm input
power ±0.40 dB nominal at 0 dBm input power
Residual EVM 0.90% nominal at –10 dBm input
power 0.70% nominal at –10 dBm input power
5 MHz offsets –65 dBc nominal at 0 dBm input power
W-CDMA/HSPA+ Measurement Application Key Specifications
1
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Residual relative power in 3.84 MHz BW
Residual 相对功率 (偏置)
条件：Downlink, nominal 2.515 to 2.715 MHz –75 dBc in a 30 kHz BW at 0 dBm input power 2.715 to 3.515 MHz –77 dBc in a 1 MHz BW at 0 dBm input power 3.515 to 4 MHz –77 dBc in a 1 MHz BW at 0 dBm input power
Uplink, nominal 2.515 to 3.485 MHz –80 dBc in a 30 kHz BW at 0 dBm input power 4 to 7.5 MHz –65 dBc in a 1 MHz BW at 0 dBm input power 7.5 to 8.5 MHz –70 dBc in a 1 MHz BW at 0 dBm input power
4 to 8 MHz –67 dBc in a
1 MHz BW at 0 dBm input power
8 to 12.5 MHz –66 dBc in a
1 MHz BW at 0 dBm input power
8.5 to 12 MHz –70 dBc in a
1 MHz BW at 0 dBm input power
Residual 相对功率 (偏置) · W-CDMA/HSPA+ 源主要指标
Composite EVM, RF output port, half duplex port, at 0 dBm output power
RMS <
1% nominal
Offset Configuration Frequency (MHz) ACLR
条件：1. For frequencies from 695 MHz to 920 MHz and from 1425 MHz to 2700 MHz.
Adjacent
5 MHz
1 DPCH
1 carrier
900
–70 dB
Adjacent 10 MHz
–71 dB
Adjacent 5 MHz 1800 to 2000
–70 dB
Adjacent 10 MHz
–72 dB
Adjacent
5 MHz
64 DPCH
1 carrier
900
–69 dB
Adjacent 10 MHz
–70 dB
Adjacent 5 MHz 1800 to 2000
–67 dB
Adjacent 10 MHz
–71 dB
Spectrum Emission Mask (SEM)
条件：Adjacent Channel Leakage Ratio (ACLR), RF output port, half duplex port, at 0 dBm output power, nominal
Absolute power accuracy ±0.65 dB nominal at 0 dBm
input power ±0.52 dB nominal at 0 dBm input power
Residual EVM 20 MHz bandwidth < 0.4% nominal at –10 dBm input power
Error Vector Magnitude (EVM)
1
LTE/LTE-Advanced FDD & LTE/LTE-Advanced TDD Measurement Application
Specifications
1
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm or 0 dBm input power
900 MHz 5 MHz bandwidth 0.17% downlink
0.17% uplink
20 MHz bandwidth 0.22% downlink
0.26% uplink
2000 MHz 5 MHz bandwidth 0.25% downlink
0.24% uplink
20 MHz bandwidth 0.29% downlink
0.31% uplink
EVM accuracy
条件：RF input port, nominal Half duplex port, nominal
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm or 0 dBm input power
EVM: 0% to 8% 2
±0.3% nominal
RF input port; Option HDX, half duplex port; at –20 dBm input power
适用型号 ≥ MY6020
条件：1. For frequencies from 695 and 3800 MHz .
2. No symbol detection error occurs
E-UTRA (Uplink and downlink) 695 to 910 MHz –58 dBc –57 dBc –57 dBc
–57 dBc
910 to 1310 MHz –55 dBc –60 dBc –54 dBc
–60 dBc
1310 to 2350 MHz –60 dBc –60 dBc –60 dBc
–60 dBc
2350 to 3800 MHz –60 dBc –60 dBc –56 dBc
–60 dBc
UTRA (Uplink and downlink) 695 to 3800 MHz –60 dBc –62 dBc –60 dBc
–62 dBc
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm or 0 dBm input power, typical
E-UTRA (Uplink and downlink)
900 MHz
2000 MHz
5 MHz bandwidth,
20 MHz bandwidth
–61 dBc
UTRA (Uplink and downlink)
900 MHz
2000 MHz
5 MHz bandwidth,
20 MHz bandwidth
–66 dBc
Adjacent 通道功率
Figure
5. LTE-FDD downlink EVM vs. input power level at 2.65 GHz with 20 MHz bandwidth
Figure
6. LTE-FDD downlink ACP vs. input power level at 2.65 GHz with 20 MHz bandwidth
六、LTE 源主要指标
RF 输出端口, half duplex 端口, FDD, 相对至 CW
条件：RMS 1, 20 MHz bandwidth < 0.3% nominal
Serial prefix < MY6020, at 0 dBm output power Adjacent, nominal Alternate, nominal
Serial prefix ≥ MY6020, with Opt. EP6, at –10 to +5 dBm output power
600 to 3800 MHz ±0.4 dB
±0.26 dB typical
Composite EVM, RF output port, half duplex port, at 0 dBm output power
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm or 0 dBm output power
FDD 900 MHz 5 MHz bandwidth < 0.3%, < 0.2% typical 20 MHz bandwidth < 0.3%, < 0.2% typical 2000 MHz 5 MHz bandwidth < 0.3%, <
0.2% typical
20 MHz bandwidth < 0.35%, <
0.25% typical
TDD 900 MHz 5 MHz bandwidth < 0.4%, < 0.25% typical 20 MHz bandwidth < 0.4%, < 0.25% typical 2000 MHz 5 MHz bandwidth < 0.4%, <
0.25% typical
20 MHz bandwidth < 0.4%, <
0.25% typical
900 MHz –64 dBc
–64 dBc
2000 MHz –65 dBc
–65 dBc
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm output
power Adjacent Alternate
条件：1. For specified frequency ranges between 695 and 3800 MHz .
FDD 900 MHz 5 MHz bandwidth –67 dBc, –70 dBc typical –68 dBc, –71 dBc typical 20 MHz bandwidth –63 dBc, –66 dBc typical –63 dBc, –66 dBc typical 2000 MHz 5 MHz bandwidth –66 dBc, –69 dBc typical –69 dBc
–73 dBc typical
20 MHz bandwidth –64 dBc, –67 dBc typical –64 dBc
–68 dBc typical
TDD 900 MHz 5 MHz bandwidth –66 dBc, –69 dBc typical –68 dBc, –71 dBc typical 20 MHz bandwidth –62 dBc, –65 dBc typical –63 dBc
–66 dBc typical
2000 MHz
5 MHz bandwidth –65 dBc, –68 dBc typical –68 dBc
–72 dBc typical
20 MHz bandwidth –63 dBc, –67 dBc typical –64 dBc
–68 dBc typical
Serial prefix ≥ MY6020, with Opt. EP6, at 0 dBm output power Adjacent Alternate
FDD 900 MHz 5 MHz bandwidth –66 dBc, –69 dBc typical –68 dBc, –72 dBc typical 20 MHz bandwidth –62 dBc, –64 dBc typical –63 dBc, –66 dBc typical 2000 MHz 5 MHz bandwidth –64 dBc, –67 dBc typical –69 dBc
–73 dBc typical
20 MHz bandwidth –63 dBc, –66 dBc typical –64 dBc
–68 dBc typical
TDD 900 MHz 5 MHz bandwidth –65 dBc, –68 dBc typical –68 dBc, –71 dBc typical 20 MHz bandwidth –62 dBc, –64 dBc typical –63 dBc
–66 dBc typical
2000 MHz
5 MHz bandwidth –64 dBc, –67 dBc typical –68 dBc
–72 dBc typical
20 MHz bandwidth –63 dBc, –66 dBc typical –64 dBc
–68 dBc typical
Adjacent 通道功率 (RF 输出端口, half duplex 端口)
Figure
7. LTE-FDD downlink EVM vs. output power level at 2.65 GHz with 20 MHz bandwidth
Figure
8. LTE-FDD downlink ACP vs. output power level at 2.65 GHz with 20 MHz bandwidth
七、WLAN 测量 Application 主要指标
绝对功率精度
条件：2400 to 2483.5 MHz ±0.29 dB nominal at 0 dBm input
power ±0.33 dB nominal at 0 dBm input power
5150 to 5185 MHz ±0.61 dB nominal at 0 dBm input
power ±0.50 dB nominal at 0 dBm input power
EVM floor conditions Phase Tracking on, Eq Smoothing on, Eq Training Seq only, RF input port, half duplex port, at –20 dBm
input power, optimized range, nominal
EVM floor conditions Phase Tracking on, Eq Smoothing on, Eq Training Seq only, 4096 QAM, RF output loopback to RF input,
at –5 dBm to –20 dBm input power, optimized range, nominal
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
802.11a, 5.8 GHz < –48 dB <
–51 dB
802.11b, 2.4 GHz < –50 dB <
–53 dB
802.11g, 2.4 GHz < –50 dB <
–53 dB
802.11n, 5.8 GHz, 20 MHz < –48 dB <
–52 dB
802.11n, 5.8 GHz, 40 MHz < –46 dB <
–51 dB
802.11ac, 5.8 GHz, 80 MHz < –46 dB <
–48 dB
802.11ac, 5.8 GHz, 160 MHz < –44 dB <
–46 dB
802.11ax, 5.8 GHz, 80 MHz < –46 dB <
–48 dB
802.11ax, 5.8 GHz, 160 MHz < –44 dB <
–46 dB
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
802.11be, 5.8 GHz, 160 MHz < –43 dB <
–47 dB
802.11be, 5.8 GHz, 320 MHz < –39 dB <
–43 dB
Figure 9. WLAN
802.11ax EVM vs. input power level at 5.8 GHz
八、WLAN 源主要指标
条件：RF output port, half duplex port, at –5 dBm to –15 dBm output power, nominal
EVM floor conditions Phase Tracking on, Eq Smoothing on, Eq Training Seq only, 4096 QAM, RF output loopback to RF input,
at –5 dBm to –20 dBm input power, optimized range, nominal
802.11a, 5.8 GHz <
–46 dB
802.11b, 2.4 GHz <
–50 dB
802.11g, 2.4 GHz <
–50 dB
802.11n, 5.8 GHz, 20 MHz <
–46 dB
802.11n, 5.8 GHz, 40 MHz <
–46 dB
802.11ac, 5.8 GHz, 80 MHz <
–47 dB
802.11ac, 5.8 GHz, 160 MHz <
–45 dB
802.11ax, 5.8 GHz, 80 MHz <
–47 dB
802.11ax, 5.8 GHz, 160 MHz <
–45 dB
Serial prefix < MY6020 Serial prefix ≥ MY6020, with Opt. EP6
802.11be, 5.8 GHz, 160 MHz < –43 dB <
–47 dB
802.11be, 5.8 GHz, 320 MHz < –39 dB <
–43 dB
Figure 10. WLAN
802.11ax EVM vs. output power level at 5.8 GHz
误差矢量幅度 (EVM)
Figure 11. WLAN
802.11be EVM vs. power level at 5.8 GHz
5G NR Measurement Application Specifications
绝对功率精度, RF 输入端口, half duplex 端口
条件：380 to 6000 MHz ±0.48 dB nominal
–56 dBc nominal, noise correction off
–63 dBc nominal, noise correction on
–54 dBc typical, –55 dBc nominal, noise correction off
–64 dBc typical, –65 dBc nominal, noise correction on
1. No symbol detection error occurs
Serial prefix < MY6020
0 dBm input power
Serial prefix ≥ MY6020, with Opt. EP6
–30 dBm to +10 dBm input power
380 to 680 MHz ±1.22 dB
±0.49 dB typical
680 to 1900 MHz ±1.37 dB
±0.54 dB typical
1900 to 2700 MHz ±1.45 dB
±0.50 dB typical
2700 to 4700 MHz ±1.55 dB
±0.55 dB typical
4700 to 5200 MHz ±1.43 dB
±0.51 dB typical
5200 to 6000 MHz ±1.58 dB
±0.60 dB typical
Residual EVM, RF input port, half duplex port, 30 kHz SCS, 100 MHz (64 QAM
256 QAM)
Serial prefix < MY6020, at –10 dBm input power
5 GHz
0.3% nominal
Serial prefix ≥ MY6020, with Opt. EP6
–10 dBm to +5 dBm input power
380 to 6000 MHz
0.38% typical
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm (0 dBm range) or 0 dBm (10 dBm range) input power
Center frequency Downlink Uplink 1.31 GHz 0.33% 0.29% 2 GHz 0.39% 0.33% 3 GHz 0.36%
0.30%
4 GHz 0.44%
0.35%
5 GHz 0.48%
0.36%
6 GHz 0.62%
0.45%
EVM accuracy, RF input port, half duplex port, 30 kHz SCS, 100 MHz (64 QAM
256 QAM)
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm or 0 dBm input power
EVM: 0% to 8% 1
±0.3% nominal
RF input port, half duplex port, 30 kHz SCS, 100 MHz (64 QAM
256 QAM)
Serial prefix < MY6020, at 0 dBm input power
5 GHz
Serial prefix ≥ MY6020, with Opt. EP6, at –10 dBm or 0 dBm input power
4 GHz
5 GHz
Adjacent 通道功率
Figure 12. 5G NR downlink EVM vs. input power level at 4 GHz and 5 GHz with 100 MHz bandwidth
30 kHz SCS
256 QAM
Figure 13. 5G NR downlink ACP vs. input power level at 5 GHz with 100 MHz bandwidth, 30 kHz SCS
256 QAM
5G NR Source Key Specifications
RF 输出端口, half duplex 端口, 相对至 CW
Serial prefix ≥ MY6020,
with Opt. EP6
–10 to +5 dBm
输出功率
–30 to –10 dBm
输出功率
–30 to –55 dBm
输出功率
–75 to –55 dBm
output power 380 to 600 MHz ± 0.50 dB, ± 0.25 dB typical
± 0.50 dB
± 0.25 dB typical
± 0.50 dB,
± 0.30 dB typical
± 0.30 dB typical
600 to 5000 MHz
± 0.35 dB
± 0.17 dB typical
± 0.50 dB,
± 0.25 dB typical
± 0.70 dB,
± 0.35 dB typical
± 0.40 dB typical
5000 to 6000 MHz
± 0.55 dB
± 0.25 dB typical
± 0.55 dB,
± 0.25 dB typical
± 0.75 dB,
± 0.45 dB typical
± 0.50 dB typical
Composite EVM, RF output port, half duplex port, 30 kHz SCS, 100 MHz (64 QAM
256 QAM)
Serial prefix < MY6020 at –10 dBm output power
4 GHz
0.4% nominal
5 GHz
0.6% nominal
Serial prefix ≥ MY6020,
with Opt. EP6 –30 dBm output power –10 dBm output power
0 dBm output power
380 to 1000 MHz 0.55% typical 0.30% typical
0.25% typical
1000 to 4500 MHz 0.45% typical 0.35% typical
0.40% typical
4500 to 5200 MHz 0.50% typical 0.35% typical
0.40% typical
5200 to 6000 MHz 0.50% typical 0.40% typical
0.40% typical
4 GHz 0.5%, 0.35% typical 0.55%
0.40% typical
5 GHz 0.5%, 0.35% typical 0.55%
0.40% typical
RF output port, half duplex port, 30 kHz SCS, 100 MHz (64 QAM
256 QAM)
Serial prefix < MY6020 at 0 dBm output power
4 GHz
–57 dBc nominal
5 GHz
–55 dBc nominal
Serial prefix ≥ MY6020, with Opt. EP6 at –10 dBm output power at 0 dBm output power
380 to 1000 MHz –54 dBc typical
–54 dBc typical
1000 to 4500 MHz –58 dBc typical
–57 dBc typical
4500 to 5200 MHz –53 dBc typical
–53 dBc typical
5200 to 6000 MHz –49 dBc typical
–49 dBc typical
4 GHz –56 dBc, –58 dBc typical –54 dBc
–57 dBc typical
5 GHz –50 dBc, –53 dBc typical –50 dBc
–53 dBc typical
Adjacent 通道功率
条件：please contact your local Keysight office. The complete list is available at:
Figure 14. 5G NR downlink EVM vs. output power level at 4 GHz and 5 GHz with 100 MHz bandwidth
30 kHz SCS
256QAM
Figure 15. 5G NR downlink ACP vs. output power level at 4 GHz and 5 GHz with 100 MHz bandwidth
30 kHz SCS
256 QAM
This information is subject to change without notice. © Keysight Technologies, 2019 - 2024, Published in USA, July 17, 20 24, 5992
-3331EN
For more information on Keysight Technologies’ products, applications, or services,
相关资料
条件：For more detailed product and specification information refer to the following literature and web pages:
• M9410A and M9411A VXT PXIe Vector Transceivers Configuration Guide (literature no. 5992-
3303EN)
• M9018B PXIe 18 slot Chassis Data Sheet (literature no.
5992-1481EN)
• M9037A PXIe High Performance Embedded Controller Data Sheet (literature no. 5991-
3661EN)
• X-Series Measurement Applications Brochure (literature no.
5989-8019EN)
• Signal Studio Software Brochure (literature no.
5989-6448EN)
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
