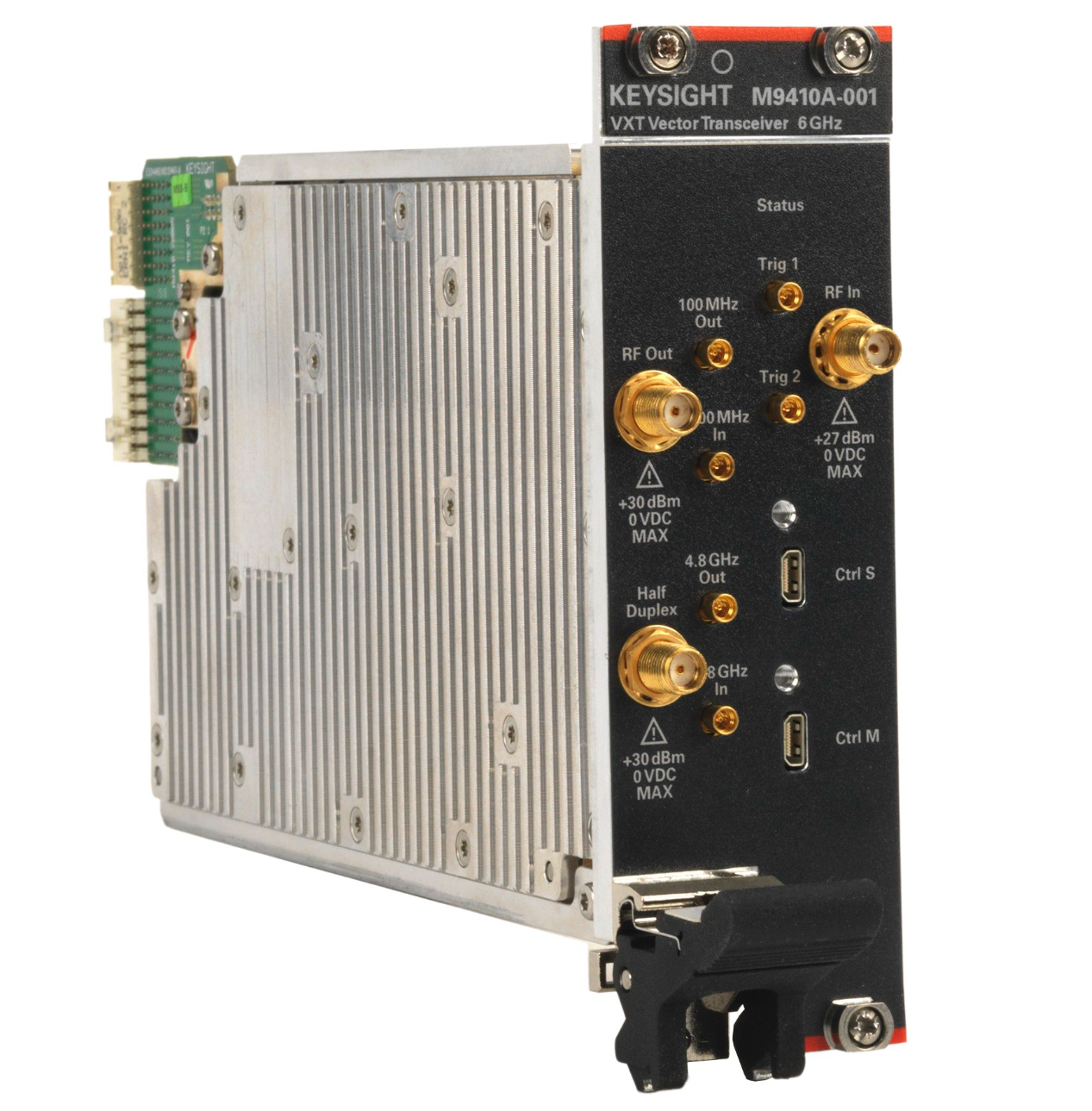

Keysight M9410A VXT PXIe 矢量收发信机在一个 2 插槽 PXIe 模块中整合了 6 GHz 矢量信号发生器和矢量信号分析仪。
拥有高达 1.2 GHz 的信号生成与分析带宽，可满足 5G 先进测试的需求。
拥有同类产品中更出色的射频性能，包括输出功率、相位噪声和幅度准确度，可以为设计验证和生产测试提供更大的测试裕量
使用与台式仪器相同的测量应用软件，包括 PathWave 信号生成软件、X 系列测量应用软件和矢量信号分析软件，能够支持广泛的应用
可在设计验证和生产阶段执行多通道（MIMO）和多站点测试
使用 S9101A 5G 多频段矢量收发信机，可将频率范围扩展到毫米波（FR2）
主要技术指标
带宽选件:
300 MHz
600 MHz
1.2 GHz
Baseband Generator Memory Size:
256MSa, 512MSa
1 GHz 时的 DANL:
-163 dBm/Hz
外观因素 :
Benchtop
频率:
6 GHz
频率选件:
6 GHz
频率转换:
<50 µs
Generator/Analyzer Bandwidth:
1.2 GHz
1 GHz 时的谐波:
<-44 dBc
最大频率:
6 GHz
模块类型:
n/a
1 GHz 时的非谐波:
<-75 dBc
1 GHz 时的输出功率:
-120 dBm to +20 dBm
Platform:
PXIe
Slots:
2
类型:
Vector
波形回放存储器:
512 MSa
X 系列测量应用软件——简化测量，提供可重复的测量结果
您可以下载并使用 X 系列应用软件，全面了解蜂窝、无线、航空航天/国防等行业所用器件及设计的性能。
从参数测量到符合最新标准的无线测量（包括 5G NR、LTE 和 WLAN），应有尽有，让您更深入地了解器件性能。
综合测量应用软件让您可以轻松地在设计、设计验证和生产阶段实施始终如一的测量，加速您的设计过程。
内置专业测量技术，帮助您迅速理解信号和器件性能
可转移许可证允许多台仪器共享使用应用软件
X 系列测量应用软件——简化测量，提供可重复的测量结果
您可以下载并使用 X 系列应用软件，全面了解蜂窝、无线、航空航天/国防等行业所用器件及设计的性能。
从参数测量到符合最新标准的无线测量（包括 5G NR、LTE 和 WLAN），应有尽有，让您更深入地了解器件性能。
综合测量应用软件让您可以轻松地在设计、设计验证和生产阶段实施始终如一的测量，加速您的设计过程。
内置专业测量技术，帮助您迅速理解信号和器件性能
可转移许可证允许多台仪器共享使用应用软件
关键词:
技术支持: M9410A VXT PXI 矢量收发信机，300 / 600 / 1200 MHz 带宽 - 是德科技Keysight
白皮书
了解和评测多信道射频系统 第 1 部分：时序同步 (.pdf 1.98 MB)
生成和分析多个同步射频系统信号可能会遇到很多挑战。本白皮书探讨了在评测多信道射频系统时对测试信号有什么要求，以及如何配置包括信号发生器等仪器来满足这些测试要求。
2019-01-11
白皮书
生成和分析多个同步射频信号可能会遇到很多挑战。本白皮书探讨了在评测多信道射频系统时对测试信号的要求，以及如何配置仪器来满足这些测试要求。
2019-01-10
技术资料
Keysight M9410A/M9411A PXI vector transceiver (VXT) integrates a vector signal generator (VSG) and analyzer (VSA) with 1.2 GHz instantaneous bandwidth.
2024-07-17
配置指南
Keysight M9410A/M9411A PXI vector transceiver (VXT) integrates a vector signal generator (VSG) and analyzer (VSA) with 1.2 GHz instantaneous bandwidth.
2024-06-20
宣传单
Buy M9471A with a VXT vector transceiver, SAVE 30%! Available NOW through December 15, 2023!
2024-06-12
安装指南
M9410A/M9411A/M9415A Service Pack and FPGA Downgrade Instructions
2022-10-28
参考指南
This MIMO measurement guide demonstrates the WLAN and 5G NR MIMO measurement (4x4) capabilities in M9410A/M9411A VXT PXIe Vector Transceiver.
2021-04-01
用户手册
Additional information on where to get software and documentation updates for the M9410A and M9411A VXT PXIe transceivers.
2020-01-31
参考指南
This document describes instrument memory types and security features. It provides a statement regarding the volatility of all memory types, and specifies the steps required to declassify an instrument through memory clearing, sanitization, or removal.
2019-07-31
快速入门指南
Information on how to start up a M9410A or M9411A VXT PXIe transceivers.
2021-08-01
用户手册
Programming information for the VXT PXIe Vector Transceiver models M9410A, M9411A, and M9415A.
2021-07-01
用户手册
User's information for the M9410A, M9411A, and M9415A VXT vector transceiver source.
2021-07-01
用户手册
M9410A/M9411A/M9415A VXT PXIe Vector Transceiver Getting Started Guide
2021-02-01
白皮书
The promise of 5G is faster and more reliable communications. To enable mobile broadband communications, 5G uses existing and new technologies to achieve extreme data throughputs. In this white paper, you will learn about the impact of the 3GPP evolution on your testing and solutions available to...
2024-02-29
白皮书
Generating and analyzing multiple synchronized RF signals are potentially challenging. This white paper discusses test signal requirements for the evaluation of multichannel RF systems and how to configure instruments for these test requirements.
2022-07-14
白皮书
Generating and analyzing multiple synchronized RF signals are potentially challenging. This white paper discusses test signal requirements for the evaluation of multi-channel RF systems and how to configure instruments for these test requirements.
2022-07-01
帮助文件
X-Series Multi-touch Signal Analyzer Spectrum Analyzer Mode help documentation that includes programming information, SCPI commands, and more.
2024-07-11
用户手册
X-Series Multi-touch Signal Analyzer Power Amplifier Mode User's & Programmer's Reference
2024-08-01
用户手册
X-Series Multi-touch Signal Analyzer 5G NR Mode User's & Programmer's Reference
2024-07-01
用户手册
X-Series Multi-touch Signal Analyzer LTE & LTE-A FDD Mode User's & Programmer's Reference
2024-04-01
用户手册
X-Series Multi-touch Signal Analyzer LTE & LTE-A TDD Mode User's & Programmer's Reference
2024-04-01
帮助文件
X-Series Multi-touch Signal Analyzer LTE & LTE-A FDD Mode help documentation that includes programming information, SCPI commands, and more.
2024-03-29
帮助文件
X-Series Multi-touch Signal Analyzer LTE & LTE-A TDD Mode help documentation that includes programming information, SCPI commands, and more.
2024-03-29
帮助文件
X-Series Multi-touch Signal Analyzer WCDMA Mode help documentation that includes programming information, SCPI commands, and more.
2021-06-03
用户手册
X-Series Multi-touch Signal Analyzer WLAN Mode User's & Programmer's Reference
2024-08-01
帮助文件
X-Series Multi-touch Signal Analyzer IQ Analyzer Mode help documentation that includes programming information, SCPI commands, and more.
2024-07-11
帮助文件
X-Series Multi-touch Signal Analyzer Vector Modulation Analyzer Mode help documentation that includes programming information, SCPI commands, and more.
2024-07-10
帮助文件
X-Series Multi-touch Signal Analyzer WLAN Mode help documentation that includes programming information, SCPI commands, and more.
2024-07-10
帮助文件
X-Series Multi-touch Signal Analyzer 5G NR Mode help documentation that includes programming information, SCPI commands, and more.
2024-07-10
用户手册
X-Series Multi-touch Signal Analyzer Vector Modulation Analyzer Mode User's & Programmer's Reference
2024-08-01
用户手册
X-Series Signal Analyzer Spectrum Analyzer Mode User's & Programmer's Reference
2024-08-01
用户手册
Status Register Diagram for A-Series & B-Series Model X-Series Signal Analyzers.
2023-04-01
用户手册
X-Series Signal Analyzer WCDMA Mode User's & Programmer's Reference
2021-10-01
用户手册
X-Series Signal Analyzer Bluetooth Mode User's & Programmer's Reference
2024-07-01
用户手册
This document contains menu descriptions and SCPI commands for the N9060C/E XSA IQ Analyzer Mode application
2024-08-01
白皮书 《生成 5G 新空口（5G NR）信号的 4 个技巧》
白皮书 卫星通信中使用的调制技术
白皮书 《如何表征宽带大功率放大器》
白皮书 《利用信号发生器了解和测试多信道射频系统》第 1 部分
白皮书 《利用信号发生器了解和测试多信道射频系统》第 2 部分
采购产品
联系我们了解价格、库存、升级信息、答疑解惑、下订单、获取订单状态或加速订单。 Keysight 可能会使用授权销售合作伙伴来更好地满足您的需求。
Functionality
| M9410A-001 | VXT PXIe Vector Transceiver, 6 GHz |
Frequency
| M9410A-F06 | Frequency Range, 380 MHz to 6 GHz |
Bandwidth
| M9410A-B3X | Bandwidth, 300 MHz | |
| M9410A-B6X | Bandwidth, 600 MHz | |
| M9410A-B12 | Bandwidth, 1.2 GHz |
Memory
| M9410A-M02 | Memory, 256 MSa | |
| M9410A-M05 | Memory, 512 MSa |
Performance
| M9410A-1EA | High output power | |
| M9410A-HDX | Half Duplex Port | |
| M9410A-EP6 | Enhanced Performance |
MIMO applications
| M9410A-MMO | Timing Synchronization for MIMO and ccEVM |
Calibration options
| M9410A-UK6 | Commercial calibration certificate with test data |
Calibration GPSA
| M9410A-SAA | Calibration for Spectrum Analyzer Application |
Accessories
| Y1810A | Cable, MMPX male to SMB male, 260 mm | |
| Y1811A | Cable, MMPX male to MMPX male, 200 mm | |
| Y1812A | Cable, MMPX male to SMB male, 500 mm | |
| Y1813A | Cable, MMPX male to SMB male, 1000 mm | |
| Y1814A | Cable, SMA male to SMA male, 1220 mm | |
| Y1815A | Cable, MMPX male to BNC male, 1500 mm | |
| Y1818A | Cable, MMPX male right angle to SMA female, 500 mm |
Application Software
| N6171A | MATLAB Software | |
| N9054EM0E | Vector Modulation Analysis Digital Demodulation Measurement Application | |
| N9054EM1E | Vector Modulation Analysis Custom OFDM Application | |
| N9060EM3E | Spectrum Analyzer Measurement Application | |
| N9063EM0E | Analog Demodulation Measurement Application | |
| N9067EM0E | Pulse Analysis Measurement Application | |
| N9068EM0E | Phase Noise Measurement Application | |
| N9069EM0E | Noise Figure Measurement Application | |
| N9071EM0E | GSM/EDGE/Evo Measurement Application | |
| N9073EM0E | W-CDMA/HSPA+ Measurement Application | |
| N9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | |
| N9077EM1E | WLAN 802.11ac/ax Measurement Application | |
| N9080EM0E | LTE and LTE-Advanced FDD Measurement Application | |
| N9080EM3E | NB-IoT and eMTC FDD Measurement Application | |
| N9081EM0E | Bluetooth (TM) Measurement Application | |
| N9084EM0E | Short Range Communications and IoT Measurement Application | |
| N9085EM0E | 5G NR Measurement Application | |
| N9082EM0E | LTE and LTE-Advanced TDD Measurement Application | |
| Y9073EM0E | W-CDMA/HSPA/HSPA+ Waveform and Measurement Applications | |
| Y9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Waveform and Measurement Application | |
| Y9077EM1E | WLAN 802.11ac/ax Waveform and Measurement Application | |
| Y9080EM0E | LTE and LTE-Advanced FDD Waveform and Measurement Applications | |
| Y9082EM0E | LTE and LTE-Advanced TDD Waveform and Measurement Application | |
| Y9085EM0E | 5G NR Non-Signaling Waveform and Measurement Application | |
| 89601200C | Basic vector signal analysis and hardware connectivity | |
| 89601301C | Multi-vendor hardware connectivity | |
| 89601AYAC | Digital demodulation analysis | |
| 89601B7NC | 3G modulation analysis | |
| 89601B7RC | Wireless connectivity modulation analysis | |
| 89601BHFC | Custom OFDM modulation analysis | |
| 89601BHGC | LTE/LTE-A FDD modulation analysis | |
| 89601BHHC | LTE/LTE-A TDD modulation analysis | |
| 89601BHMC | DOCSIS modulation analysis | |
| 89601BHNC | 5G NR modulation analysis | |
| 89601BHPC | FMCW radar analysis | |
| 89601BHQC | Pulse analysis | |
| 89601BHTC | IoT modulation analysis | |
| 89601BHXC | High throughput WLAN modulation analysis | |
| N9077EM2E | WLAN 802.11be Measurement Application | |
| Y9071EM0E | GSM/EDGE/Evo Waveform and Measurement Application | |
| Y9080EM3E | NB-IoT and eMTC FDD Waveform and Measurement Application | |
| Y9080EM4E | LTE V2X Waveform and Measurement Application | |
| Y9081EM0E | Bluetooth TM Waveform and Measurement Application | |
| N9080EM4E | LTE V2X measurement application | |
| N9093EM0E | Radio Test: Basic Analog Measurement Application | |
| N9055EM0E | Power Amplifier Measurement Application | |
| E9081EM0E | Bluetooth (TM) Measurement Application | |
| E9080EM0E | LTE and LTE-Advanced FDD Measurement Application | |
| E9054EM0E | Vector Modulation Analysis Digital Demodulation Measurement Application | |
| E9069EM0E | Noise Figure Measurement Application | |
| E9077EM1E | WLAN 802.11ac/ax Measurement Application | |
| E9077EM2E | WLAN 802.11be Measurement Application | |
| E9063EM0E | Analog Demodulation Measurement Application | |
| E9055EM0E | Power Amplifier Measurement Application | |
| E9080EM4E | LTE V2X Measurement Application | |
| E9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | |
| E9073EM0E | W-CDMA/HSPA+ Measurement Application | |
| E9085EM0E | 5G NR Measurement Application | |
| E9080EM3E | NB-IoT and eMTC FDD Measurement Application | |
| E9054EM1E | Vector Modulation Analysis Custom OFDM Application | |
| E9071EM0E | GSM/EDGE/Evo Measurement Application | |
| E9082EM0E | LTE and LTE-Advanced TDD Measurement Application | |
| N9077EM3E | WLAN 802.11ac/ax Measurement Application, limited | |
| N90EMQAMA | WLAN 4096QAM modulation | |
| Y9077EM3E | WLAN 802.11ac/ax Signal Generation and Measurement Application, limited | |
| Y9077EM4E | WLAN 802.11be Signal Generation and Measurement Application, limited | |
| N9077EM4E | WLAN 802.11be Measurement Application, limited | |
| Y9054EM0E | General Purpose Digital Radio Test Bundle | |
| N9056EM0E | Channel Quality Measurement Application |
Signal Studio Applications
| N7600EMBC | Signal Studio for W-CDMA/HSPA+, waveform playback | |
| N7602EMBC | Signal Studio for GSM/EDGE/Evo, waveform playback | |
| N7606EMBC | Signal Studio for Bluetooth, waveform playback | |
| N7608APPC | PathWave Signal Generation for Custom Modulations, Embedded application | |
| N7608EMBC | Signal Studio Pro for Custom Modulation, waveform playback | |
| N7608RAWC | Signal Studio Pro for Custom Modulation, raw data export | |
| N7609EMBC | Signal Studio for Global Navigation Satellite System (GNSS), waveform playback | |
| N7610EMBC | Signal Studio for IoT, waveform playback | |
| N7614EMBC | Signal Studio for power amplifier test, waveform playback | |
| N7617EMBC | Signal Studio for WLAN 802.11, waveform playback | |
| N7624EMBC | Signal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback | |
| N7625EMBC | Signal Studio for LTE/LTE-Advanced TDD, waveform playback | |
| N7631APPC | PathWave signal generation for 5G NR, Embedded application | |
| N7631EMBC | Signal Studio Pro for 5G NR, waveform playback | |
| N7650B | Signal Studio Waveform Licenses | |
| N7626EMBC | Signal Studio for LTE V2X, waveform playback | |
| N76EMQAMC | WLAN 4096QAM modulation |
关键词:
0条提问
X
提问
X
回答
关键词:
0条口碑
X
发表口碑
粤公网安备44030902003758
