    Bipolar high-voltage output, dual-channel benchtop power supply

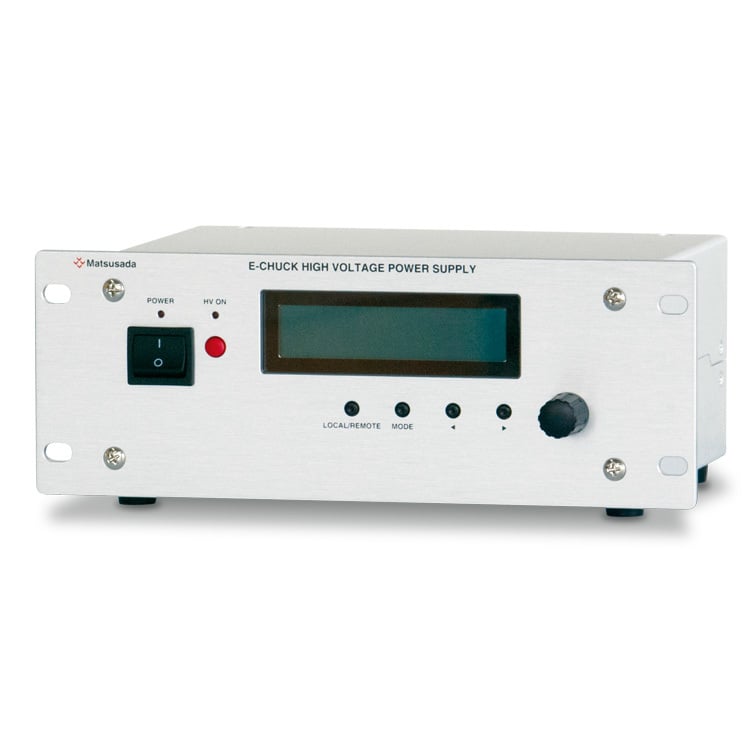

    The ECA series is a high-voltage power supply engineered specifically for electrostatic chuck (E-Chuck) applications. It enables wafer holding and releasing via DC output control, with smooth release achieved through polarity reve。
    The EC series is a high-voltage power supply specifically designed for electrostatic chuck (E-Chuck) applications. It features two output channels, allowing a single unit to support both unipolar and bipolar systems. The polarity 。
    • «
    • 1

    CZE 电泳 电源|松田精密 (在产)

    The CZE series comes standard with CV/CC modes, bipolar output, and output monitoring—essential features for capillary zone electrophoresis. This compact benchtop unit provides a complete solution for high-precision analysis.

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    CZE 电泳电源

    0 to +30 / 0 to -30 kV · 0 to 250 μA · 7.5 W
    0 to +30 / 0 to -30 kV
    输出电压
    0 to 250 μA
    输出电流
    7.5 W
    输出功率
    产品定位

    The CZE series comes standard with CV/CC modes, bipolar output,

    and output monitoring—essential features for capillary zone electrophoresis. This compact benchtop unit provides a complete solution for high-precision analysis.

    核心参数
    · ：Model ｜Rated Output
    ·
    – Voltage [kVdc]
    – Current [µA]
    – Power [W]
    · CZE-30PN0.25：0 to ±30/0 to -30 kVdv；0 to 250 µA；7.5 W
    ·
    – Standard ｜CABLE TYPE1 ｜125 V / 10 A ｜2.5 meters Fixed length
    · Sold separately Available at 200 V input
    – CABLE TYPE3
    – 250 V / 10 A
    – 2.5 meters Fixed length
    · Sold separately Available at 200 V input
    – CABLE TYPE4
    – 250 V / 10 A
    – 2.5 meters Fixed length
    功能与特点
    · Reversible output polarity
    · Standard Constant Voltage (CV) and Constant Current (CC) modes
    · High stability
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 CZE-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    CZE 电泳电源 · 详细指标

    0 to +30 / 0 to -30 kV · 0 to 250 μA · 7.5 W
    产品简介

    The CZE series comes standard with CV/CC modes, bipolar output,

    and output monitoring—essential features for capillary zone electrophoresis. This compact benchtop unit provides a complete solution for high-precision analysis.

    完整技术指标
    · ：Model ｜Rated Output
    ·
    – Voltage [kVdc]
    – Current [µA]
    – Power [W]
    · CZE-30PN0.25：0 to ±30/0 to -30 kVdv；0 to 250 µA；7.5 W
    ·
    – Standard ｜CABLE TYPE1 ｜125 V / 10 A ｜2.5 meters Fixed length
    · Sold separately Available at 200 V input
    – CABLE TYPE3
    – 250 V / 10 A
    – 2.5 meters Fixed length
    · Sold separately Available at 200 V input
    – CABLE TYPE4
    – 250 V / 10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
