    The DOM series is a four-quadrant bipolar power supply featuring a high-efficiency switching design and power regeneration capability. Despite its high power output, the unit is housed in a compact chassis, made possible by our ad。
    The DOL series is a four-quadrant bipolar amplifier featuring fast response and high power output. It operates in both Constant Voltage (CV) and Constant Current (CC) modes. By utilizing an aluminum frame, the series achieves half。
    The DOKF series is a four-quadrant power supply capable of both sourcing and sinking current. It features a high-speed response of DC to 120 kHz (CV mode) and an integrated function generator, making it ideal for transient respons。
    • «
    • 1

    DOEF 双极性 电源|松田精密 (在产)

    High-speed DC to 200 kHz response. Precision sequence operation for advanced testing. High-fidelity reproduction of programmed waveforms. The DOEF series is no longer available as we stopped the production and sales of this model 。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录2330个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 放大器

    DOEF 双极性电源

    ±40 V；±10 A；400 W · ±60 V；±10 A；600 W · ±60 V；±20 A；1200 W
    ±40 V；±10 A；400 W
    DOEF40-10
    ±60 V；±10 A；600 W
    DOEF60-10
    ±60 V；±20 A；1200 W
    DOEF60-20
    产品定位

    High-speed DC to 200 kHz response. Precision sequence operation for advanced testing. High-fidelity reproduction of programmed waveforms.

    The DOEF series is no longer available as we stopped the production and sales of this model in April 2026. Meanwhile,

    we support. DOKF series is available as the successor model,

    and more information on the series can be found here.

    核心参数
    ·

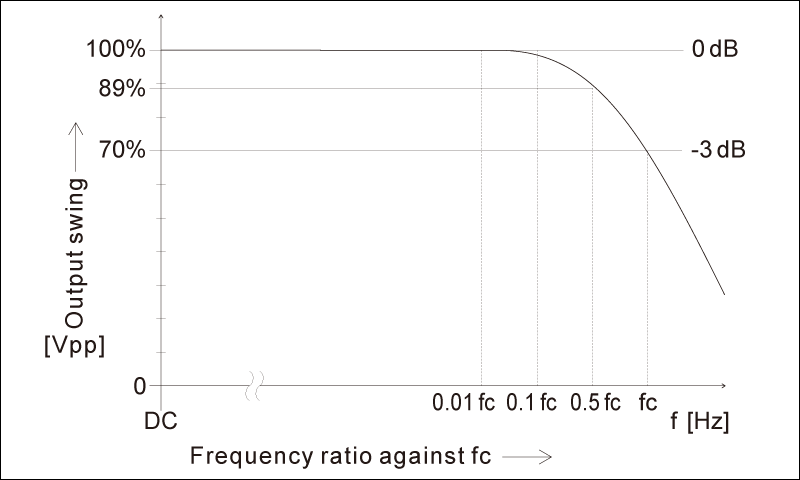

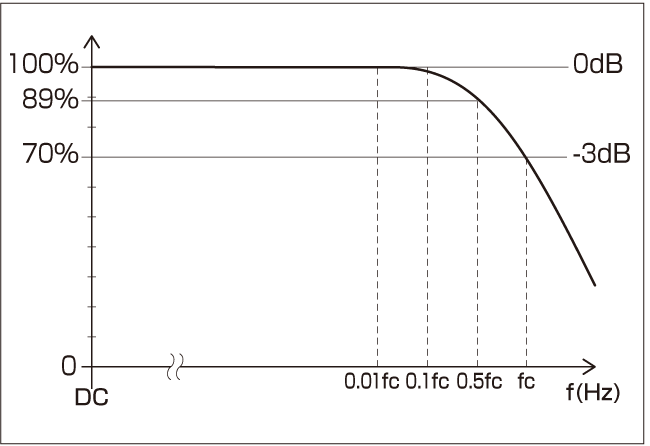

    – Model ｜Maximum output ｜Frequency Bandwidth (-3 dB)
    · ：Voltage；Current；Power；CV mode；CC mode
    · DOEF20-20：±20 V；±20 A；400 W；DC to 200 kHz；DC to 100 kHz
    · DOEF40-10：±40 V；±10 A；400 W
    · DOEF60-10：±60 V；±10 A；600 W
    · DOEF60-20：±60 V；±20 A；1200 W
    ·
    – Standard 400 W model ｜CABLE TYPE8 ｜125 V/125 A ｜2.5 meters Fixed length
    · Standard more than 600 W model
    – CABLE TYPE5
    – 300 V/25 A
    – 2.5 meters
    · Sold separately 400 W model
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately 400 W model
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    功能与特点
    · High-Speed Response: Achieves DC to 200 kHz response speed.
    · Four-Quadrant Operation: Capable of both sourcing and sinking current.
    · Built-in Function Generator: Generates distortion-free waveforms, including sine, square, and arbitrary waves.

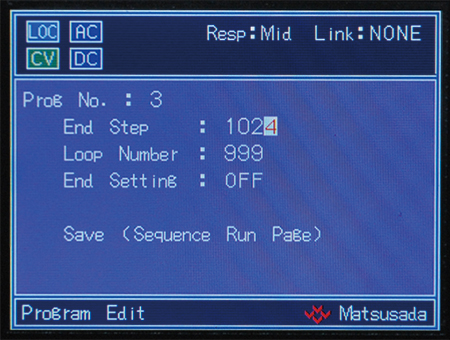

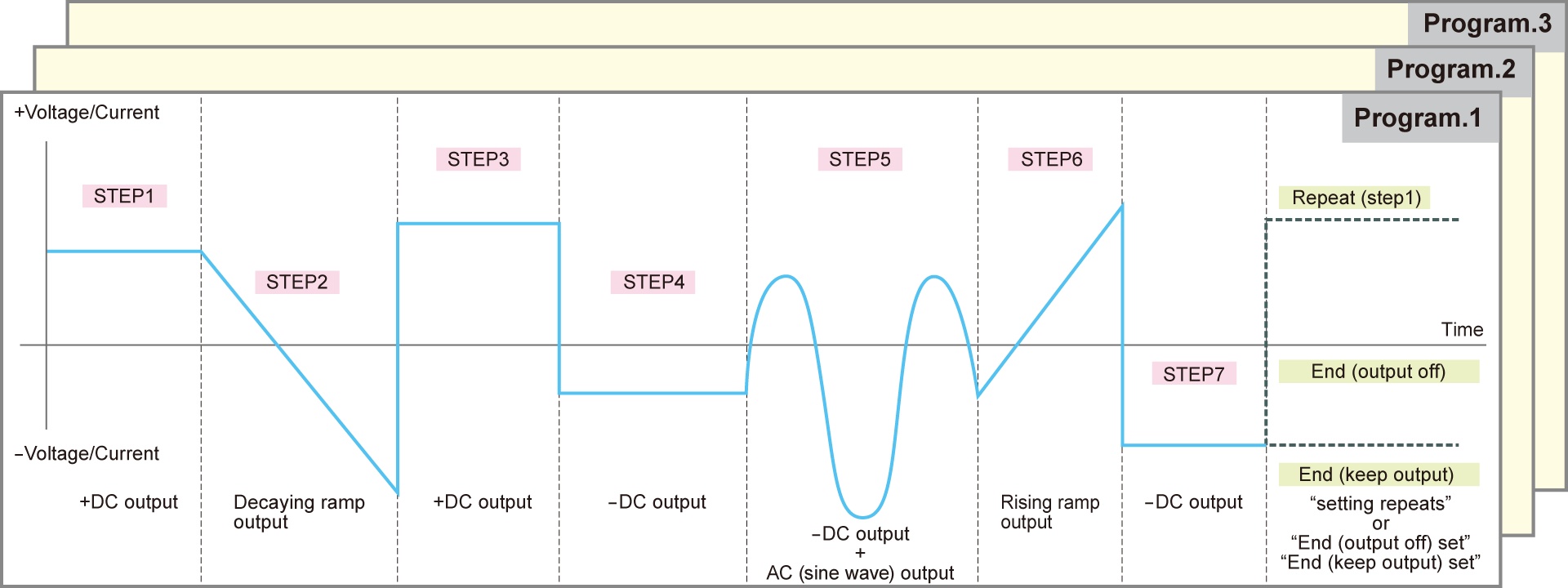

    · Advanced Sequence Programming: Supports highly accurate programs with up to 1024 steps.

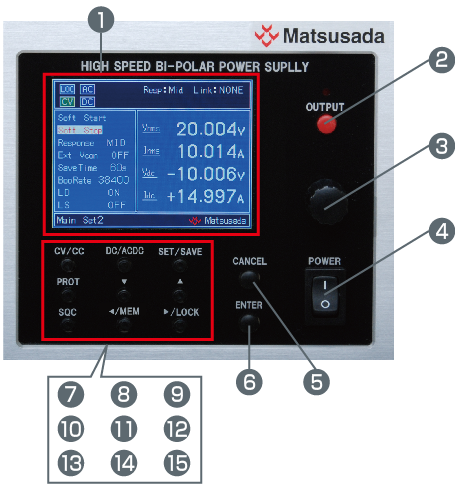

    · Easy Operation: Independent settings for DC and AC parameters via a user-friendly front panel.
    · CV/CC Modes: Supports both Constant Voltage (CV) and Constant Current (CC) operations.
    · Synchronized Operation: Supports parallel connection of up to 3 units with synchronized trigger and clock for increased power or multi-phase applications.
    · Digital Control: External digital control options available.
    典型应用
    · 信号放大
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 DOEF-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 放大器

    DOEF 双极性电源 · 详细指标

    ±40 V；±10 A；400 W · ±60 V；±10 A；600 W · ±60 V；±20 A；1200 W
    产品简介

    High-speed DC to 200 kHz response. Precision sequence operation for advanced testing. High-fidelity reproduction of programmed waveforms.

    完整技术指标
    ·
    – Model ｜Maximum output ｜Frequency Bandwidth (-3 dB)
    · ：Voltage；Current；Power；CV mode；CC mode
    · DOEF20-20：±20 V；±20 A；400 W；DC to 200 kHz；DC to 100 kHz
    · DOEF40-10：±40 V；±10 A；400 W
    · DOEF60-10：±60 V；±10 A；600 W
    · DOEF60-20：±60 V；±20 A；1200 W
    ·
    – Standard 400 W model ｜CABLE TYPE8 ｜125 V/125 A ｜2.5 meters Fixed length
    · Standard more than 600 W model
    – CABLE TYPE5
    – 300 V/25 A
    – 2.5 meters
    · Sold separately 400 W model
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately 400 W model
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
