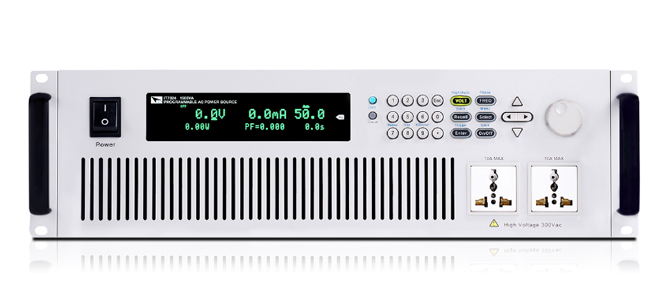

    为满足输入交流电更大范围及更复杂的变动特性，工程师需要功能丰富且稳定之交流电源供应器来仿真产品的实际工作环境， IT7300系列就是这方面的解决方案，可提供模拟多种正常及异常的交流电输入情况，并量测待测物的重要电性能参数。

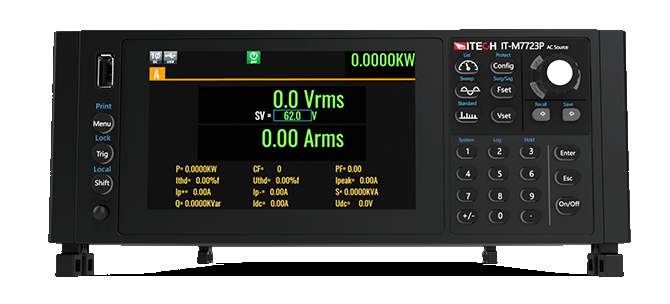

    IT-M7700系列高性能可编程交流电源很好地结合了智能和灵活两大特点，改善了传统交流电源体积庞大的缺陷，将体积缩小到仅½ 1U（600VA）或½ 2U（1500VA），很好的增加空间利用率。
    APP5005可编程变频电源，具有反应速度快，性能稳定，操作方便外形美观，四窗口五位数码显示，电压、频率快捷按键组合等特点，数字编码器调节更方便耐用
    1 2

    同厂商产品

    The DRS series is a high-performance programmable AC power source that delivers high power density in an exceptionally compact form factor. Designed for R&D, testing, and production lines, the DRS series combines high-quality outp。
    The DRK series is a versatile, well-regulated AC power source designed for high performance in a compact form factor. Despite delivering high power up to 4 kVA, the unit fits into a standard 4U 19-inch rack space. By adopting our 。
    The DRJE series offers precision sine wave output in an ultra-compact form factor, combining benchtop convenience with the reliability of our rack-mount AC power sources. This series is designed to meet the demands of testing, eva。

    DRJ 0 至 150 V交流电源|松田精密 (在产)

    The DRJ series is an ultra-compact programmable AC power source providing high-precision, stable sine wave output. Engineered for space-constrained environments, it delivers high-quality power for R&D experiments, evaluation testi。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 交流电源

    DRJ 交流电源

    0 to 150 V / 0 to 300 V · 1 Hz to 550 Hz · 500 VA
    0 to 150 V / 0 to 300 V
    AC 电压
    1 Hz to 550 Hz
    AC 频率
    500 VA
    AC 最大输出功率
    0 to +212 V/-212 V / 0 to +424 V/-424 V
    DC 电压
    330 W
    DC 最大输出功率
    产品定位

    The DRJ series is an ultra-compact programmable AC power source providing high-precision,

    stable sine wave output. Engineered for space-constrained environments,

    it delivers high-quality power for R&D experiments, evaluation testing,

    and production lines. Despite its compact footprint,

    the DRJ series features worldwide voltage input and a front-panel universal outlet,

    making it an ideal choice for global applications. The intuitive interface ensures simple operation,

    even for first-time users. Additionally, the series supports optional momentary power interruption testing,

    allowing for the evaluation of devices under unstable power conditions.

    核心参数
    · ：Model ｜AC ｜DC
    ·
    – Lo (0 to 150 V) range
    – Hi (0 to 300 V) range
    – Lo (0 to +212 V/-212 V) range
    – Hi (0 to +424 V/-424 V) range
    · DRJ500：Maximum output power；500 VA；330 W
    ·
    – Maximum output current
    – 5.00 A
    – 2.50 A
    – 2.25 A
    – 1.10 A
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    功能与特点

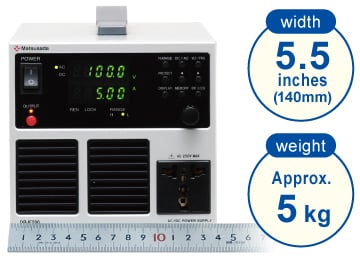

    · Compact design with only 5.5 inches (140 mm) width and approximately 5 kg weight
    · With the worldwide input feature, DRJ can be used anywhere in the world.
    · Wide range of output voltage and frequency
    · AC: 0 to 150 V, 0 to 300 V/1 Hz to 550 Hz
    · DC: 0 to ±212 V, 0 V to ±424 V
    · Output terminals on front and back
    · DRJ series is also capable of implementing momentary outage tests on AC input devices.
    典型应用
    · 家电测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 DRJ-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 交流电源

    DRJ 交流电源 · 详细指标

    0 to 150 V / 0 to 300 V · 1 Hz to 550 Hz · 500 VA
    产品简介

    The DRJ series is an ultra-compact programmable AC power source providing high-precision,

    stable sine wave output. Engineered for space-constrained environments,

    完整技术指标
    · ：Model ｜AC ｜DC
    ·
    – Lo (0 to 150 V) range
    – Hi (0 to 300 V) range
    – Lo (0 to +212 V/-212 V) range
    – Hi (0 to +424 V/-424 V) range
    · DRJ500：Maximum output power；500 VA；330 W
    ·
    – Maximum output current
    – 5.00 A
    – 2.50 A
    – 2.25 A
    – 1.10 A
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
