    Matsusada Precision Inc. · 交流电源

    DRK 交流电源

    2.4 kVA；12 A/48 A；6 A/24 A · 3 kVA；15 A/60 A；7.5 A/30 A
    2.4 kVA；12 A/48 A；6 A/24 A
    DRK1.2k-L1p3wm/-L1p3ws
    3 kVA；15 A/60 A；7.5 A/30 A
    DRK1.5k-L1p3wm/-L1p3ws
    4 kVA；20 A/80 A；10 A/40 A
    DRK2k-L1p3wm/-L1p3ws
    Range；Low；Low；Low；Low；High
    产品定位

    The DRK series is a versatile,

    well-regulated AC power source designed for high performance in a compact form factor. Despite delivering high power up to 4 kVA,

    the unit fits into a standard 4U 19-inch rack space. By adopting our proprietary switching amplifier system,

    we have achieved a compact, lightweight,

    and highly efficient design that maintains high-quality output comparable to linear amplifier systems. This replaces the need for large,

    heavy traditional AC power sources. Their compact design, versatile functions,

    and reliable operation make them ideal for development and production line inspection.

    核心参数
    ·

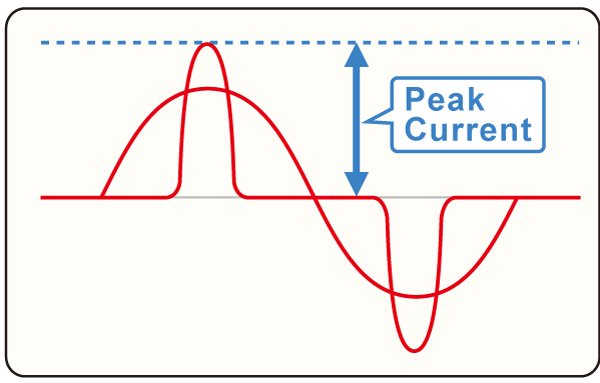

    – Model ｜Output Wiring Connection ｜Maximum output power ｜AC output Maximum current [Arms]/Peak current [Apeak] Crest factor=4 ｜DC output Maximum output peak current
    ·
    – AC；DC；Lo range @100 Vac；Hi range @200 Vac；Lo range (0～+212 V/-212 V)；Hi range (0～+424 V/-424 V)
    · DRK500
    – 1-Phase；500 VA；325 W；5 A/20 A；2.5 A/10 A；2.3 A；1.2 A
    · DRK1.2k：1.2 kVA；780 W；12 A/48 A；6 A/24 A；5.4 A；2.7 A
    · DRK1.5k：1.5 kVA；975 W；15 A/60 A；7.5 A/30 A；6.8 A；3.4 A
    · DRK2k：2 kVA；1300 W；20 A/80 A；10 A/40 A；9 A；4.5 A
    · DRK4k：4 kVA；-；40 A/160 A；20 A/80 A；-；-
    ·
    – Model ※ ｜Output Wiring Connection ｜Maximum output power ｜Total Q'ty ｜AC output Maximum current [Arms]/Peak current [Apeak] Crest factor=4
    · ：AC；Lo range @100 Vac；Hi range @200 Vac
    · DRK2k-LMsm/-LMss：1-phase；4 kVA；2；40 A/160 A；20 A/80 A
    功能与特点
    · Original switching method for high-quality output
    · Cutoff and limiting functions useful for testing AC input operation
    · Single-phase and three-phase models are available
    典型应用
    · 家电测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 DRK-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 交流电源

    DRK 交流电源 · 详细指标

    2.4 kVA；12 A/48 A；6 A/24 A · 3 kVA；15 A/60 A；7.5 A/30 A
    产品简介

    The DRK series is a versatile,

    well-regulated AC power source designed for high performance in a compact form factor. Despite delivering high power up to 4 kVA,

    完整技术指标
    ·
    – Model ｜Output Wiring Connection ｜Maximum output power ｜AC output Maximum current [Arms]/Peak current [Apeak] Crest factor=4 ｜DC output Maximum output peak current
    ·
    – AC；DC；Lo range @100 Vac；Hi range @200 Vac；Lo range (0～+212 V/-212 V)；Hi range (0～+424 V/-424 V)
    · DRK500
    – 1-Phase；500 VA；325 W；5 A/20 A；2.5 A/10 A；2.3 A；1.2 A
    · DRK1.2k：1.2 kVA；780 W；12 A/48 A；6 A/24 A；5.4 A；2.7 A
    · DRK1.5k：1.5 kVA；975 W；15 A/60 A；7.5 A/30 A；6.8 A；3.4 A
    · DRK2k：2 kVA；1300 W；20 A/80 A；10 A/40 A；9 A；4.5 A
    · DRK4k：4 kVA；-；40 A/160 A；20 A/80 A；-；-
    ·
    – Model ※ ｜Output Wiring Connection ｜Maximum output power ｜Total Q'ty ｜AC output Maximum current [Arms]/Peak current [Apeak] Crest factor=4
    · ：AC；Lo range @100 Vac；Hi range @200 Vac
    · DRK2k-LMsm/-LMss：1-phase；4 kVA；2；40 A/160 A；20 A/80 A
    · DRK2k-LMsm/-LMss × 2-unit：6 kVA；3；60 A/240 A；30 A/120 A
    · DRK2k-LMsm/-LMss × 3-unit：8 kVA；4；80 A/320 A；40 A/160 A
    · DRK500-L1p3wm/-L1p3ws：1-phase 3-wire；1 kVA；2；5 A/20 A；2.5 A/10 A
    · DRK1.2k-L1p3wm/-L1p3ws
    – 2.4 kVA
    – 12 A/48 A
    – 6 A/24 A
    · DRK1.5k-L1p3wm/-L1p3ws：3 kVA；15 A/60 A；7.5 A/30 A
    · DRK2k-L1p3wm/-L1p3ws：4 kVA；20 A/80 A；10 A/40 A
    ·
    – Model ※ ｜Output Wiring Connection ｜Maximum output power ｜Total Q'ty ｜AC output Maximum current [Arms]/Peak current [Apeak] Crest factor=4
    ·
    – AC；Line voltage；200 Vac；220 Vac；230 Vac；240 Vac；400 Vac
    ·
    – Phase voltage
    – 115.5 Vac
    – 127.0 Vac
    – 132.8 Vac
    – 138.6 Vac
    – 230.9 Vac
    · ：Range；Low；Low；Low；Low；High
    · DRK500-LPhu/-LPhv/-LPhw
    – 3-phase；1.5 kVA；3；1.5 kVA；4.3 A/17.3 A；3.9 A/15.7 A；3.7 A/15.0 A；3.6 A/14.4 A；2.1 A/8.6 A
    · DRK1.2k-LPhu/-LPhv/-LPhw
    – 3.6 kVA
    – 3.6 kVA
    – 10.3 A/41.5 A
    – 9.4 A/37.7 A
    – 9.0 A/36.1 A
    – 8.6 A/34.6 A
    – 5.1 A/20.7 A
    · DRK1.5k-LPhu/-LPhv/-LPhw
    – 4.5 kVA
    – 4.5 kVA
    – 12.9 A/51.9 A
    – 11.8 A/47.2 A
    – 11.2 A/45.1 A
    – 10.8 A/43.3 A
    – 6.4 A/25.9 A
    · DRK2k-LPhu/-LPhv/-LPhw
    – 6 kVA；6 kVA；17.3 A/69.2 A；15.7 A/62.9 A；15.0 A/60.2 A；14.4 A/57.7 A；8.6 A/34.6 A
    Input Cable for Single Phase AC (3 cores type)
    ·
    – Sold separately [Input voltage 200 V] ｜CABLE TYPE5 ｜Rated voltage 300 V Maximum current 25 A ｜2.5 meters
    · Sold separately [Input voltage 100 V]
    – CABLE TYPE2
    – Rated voltage 125 V Maximum current 15 A
    – 2.5 meters Fixed length
    ·
    – Sold separately [Input voltage 200 V] ｜CABLE TYPE5 ｜Rated voltage 300 V Maximum current 25 A ｜2.5 meters
    · Sold separately [Input voltage 100 V]
    – CABLE TYPE5
    – Rated voltage 300 V Maximum current 25 A
    – 2.5 meters
    ·
    – Sold separately [Input voltage 200 V] ｜CABLE TYPE5 ｜Rated voltage 300 V Maximum current 25 A ｜2.5 meters
    · Sold separately [Input voltage 100 V]
    – CABLE TYPE11
    – Rated voltage 600 V Maximum current 30 A
    – 2.5 meters
    ·
    – Sold separately [Input voltage 200 V] ｜CABLE TYPE11 ｜Rated voltage 600 V Maximum current 30 A ｜2.5 meters
    · Sold separately [Input voltage 100 V]
    – CABLE TYPE12
    – Rated voltage 600 V Maximum current 60 A
    – 2.5 meters
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
