    Matsusada Precision Inc. · 交流电源

    DRS 交流电源

    Model ｜AC ｜DC
    产品定位

    The DRS series is a high-performance programmable AC power source that delivers high power density in an exceptionally compact form factor. Designed for R&D,

    testing, and production lines,

    the DRS series combines high-quality output with a space-saving footprint. Despite its compact size,

    it features a universal AC input and a universal output terminal on the front panel,

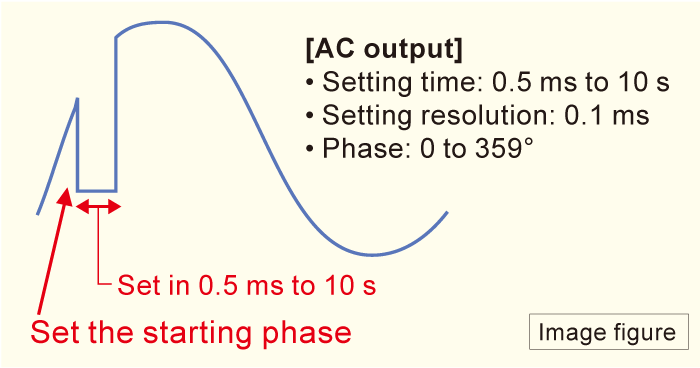

    allowing for seamless global operation. Standard features include a momentary power interruption function,

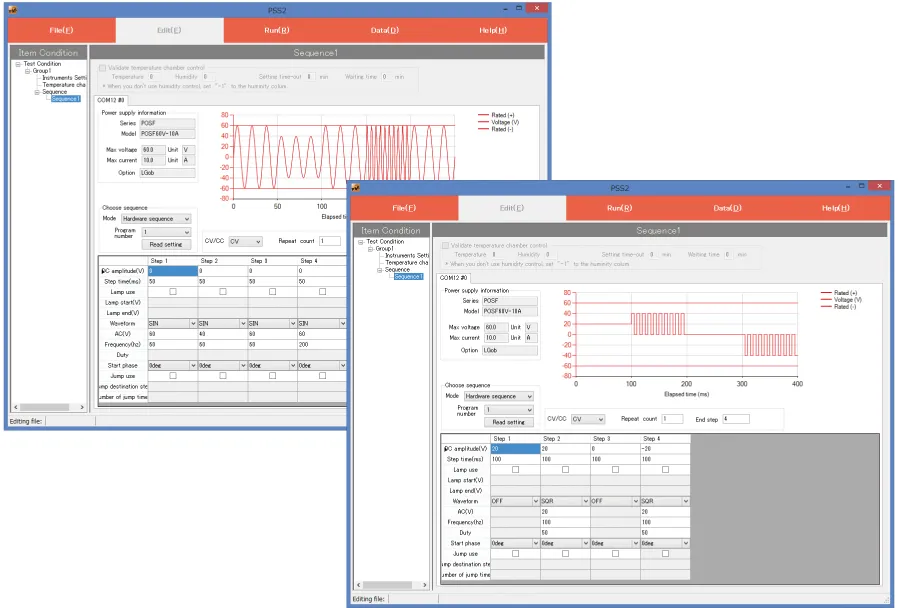

    a 32-step programmable sequence function,

    and comprehensive measurement capabilities. This makes the DRS series ideal for testing and evaluating AC input devices under unstable power conditions or momentary power failures.

    核心参数
    · ：Model ｜AC ｜DC
    ·
    – Lo range (0 to 155 V)
    – Hi range (0 to 310 V)
    – Lo range (0 to +219 V/0 to -219 V)
    – Hi range (0 to +438 V/0 to -438 V)
    · DRS500：Maximum Output Power；500 VA；500 VA；330 W；330 W
    ·
    – Maximum Output Current
    – 5.00 A
    – 2.50 A
    – 2.25 A
    – 1.10 A
    · DRS1000
    – Maximum Output Power；1000 VA；1000 VA；660 W；660 W
    ·
    – Maximum Output Current
    – 10.00 A
    – 5.00 A
    – 4.50 A
    – 2.20 A
    · DRS2000
    – Maximum Output Power
    – 2000 VA
    – 2000 VA
    – 1320 W
    – 1320 W
    ·
    – Maximum Output Current
    – 20.00 A
    – 10.00 A
    – 9.50 A
    – 4.40 A
    Additional accessories
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    功能与特点
    · High power density: Up to 2 kVA in a compact half-rack width (210 mm) chassis (DRS2000).
    · Compact and lightweight: significantly smaller and lighter than linear amplifier models due to advanced switching technology.
    · Advanced functions standard: Includes momentary power interruption, sequence programming, and measurement functions.
    · Wide output range: Supports output voltages up to 155 V / 310 V.
    · High peak current capability: Supports peak currents up to four times the rated current (Crest Factor = 4).

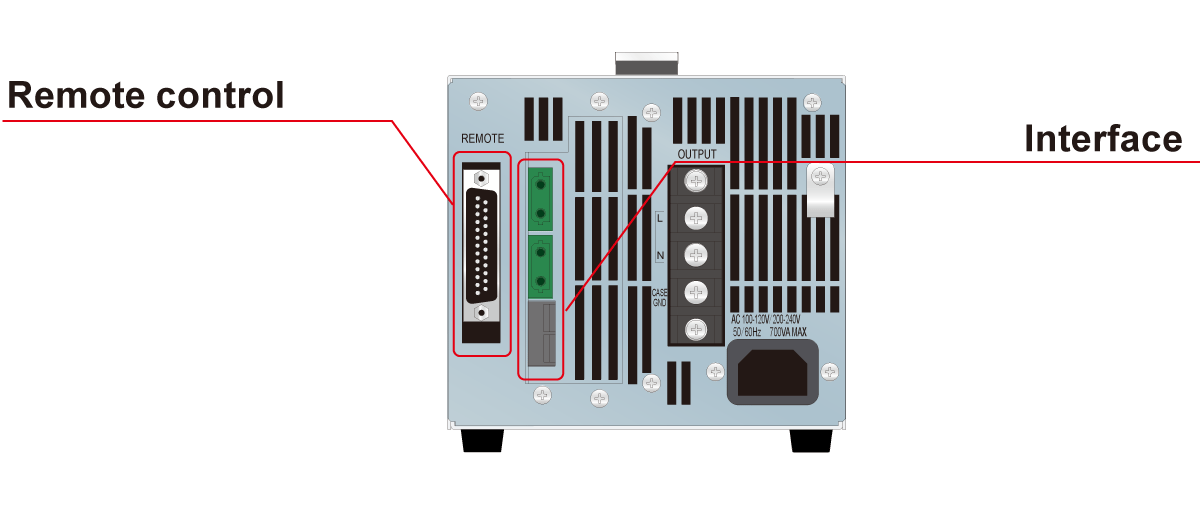

    · Standard interfaces: Equipped with analog remote control and USB interface (optional interfaces available).
    典型应用
    · 交流供电测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 DRS-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 交流电源

    DRS 交流电源 · 详细指标

    Model ｜AC ｜DC
    产品简介

    The DRS series is a high-performance programmable AC power source that delivers high power density in an exceptionally compact form factor. Designed for R&D,

    testing, and production lines,

    完整技术指标
    · ：Model ｜AC ｜DC
    ·
    – Lo range (0 to 155 V)
    – Hi range (0 to 310 V)
    – Lo range (0 to +219 V/0 to -219 V)
    – Hi range (0 to +438 V/0 to -438 V)
    · DRS500：Maximum Output Power；500 VA；500 VA；330 W；330 W
    ·
    – Maximum Output Current
    – 5.00 A
    – 2.50 A
    – 2.25 A
    – 1.10 A
    · DRS1000
    – Maximum Output Power；1000 VA；1000 VA；660 W；660 W
    ·
    – Maximum Output Current
    – 10.00 A
    – 5.00 A
    – 4.50 A
    – 2.20 A
    · DRS2000
    – Maximum Output Power
    – 2000 VA
    – 2000 VA
    – 1320 W
    – 1320 W
    ·
    – Maximum Output Current
    – 20.00 A
    – 10.00 A
    – 9.50 A
    – 4.40 A
    Additional accessories
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    ·
    – Standard ｜CABLE TYPE8 ｜125 V/15 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    ·
    – Sold separately ｜CABLE TYPE5 ｜250 V/25 A ｜2.5 meters
    · Sold separately
    – CABLE TYPE11
    – 250 V/30 A
    – 2.5 meters
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
