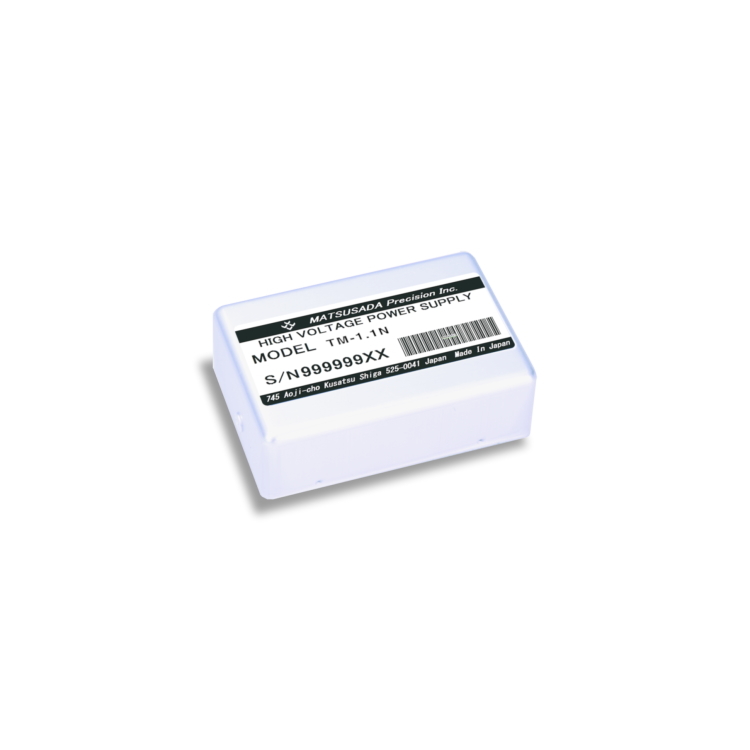

    The TM series is a compact, high-stability high-voltage power supply module ideal for OEM integration and laboratory applications. With ultra-low ripple and well-regulated output, it ensures precision performance for sensitive equ。

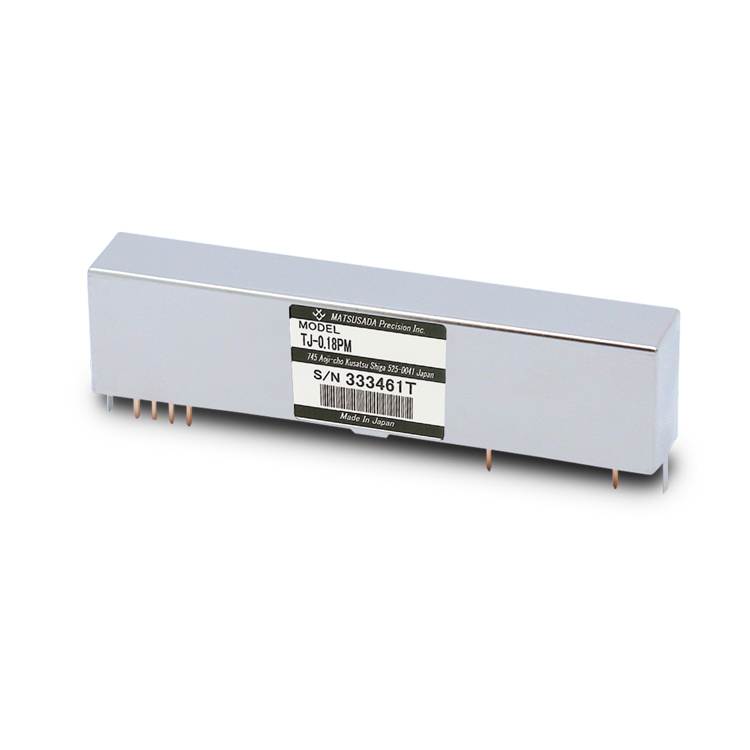

    The TJ series is an ultra-compact, PCB-mountable high voltage power supply featuring a space-saving Single In-line Package (SIP) design. Despite its small footprint, it delivers a robust 3W output, making it powerful enough to bia。

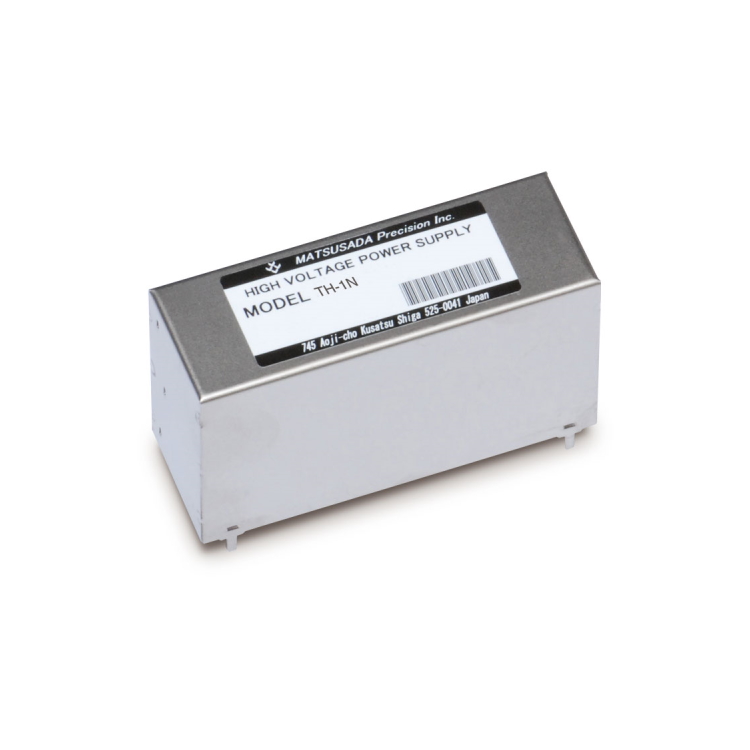

    The TH series is a compact, well-regulated high-voltage power supply module designed for Photomultiplier Tube (PMT) applications. Delivering up to 5 W of output power in a compact footprint, the TH series is ideal for driving mult。
    • «
    • 1

    TG 0 至 0.2 kV高压电源|松田精密 (在产)

    The Matsusada Precision TG series is a high-performance, compact high-voltage power supply module engineered specifically for Photomultiplier Tubes (PMT), Microchannel Plates (MCP), and radiation detection applications. Ideally su。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    TG 高压电源

    0.2 to 2 kV · 0.7 to 7.5 mA
    产品定位

    The Matsusada Precision TG series is a high-performance,

    compact high-voltage power supply module engineered specifically for Photomultiplier Tubes (PMT),

    Microchannel Plates (MCP), and radiation detection applications. Ideally suited for OEM integration,

    the TG series offers low ripple noise and high stability in a space-saving footprint. The output voltage is linearly variable from 0 V to the maximum rated voltage via an external potentiometer or control voltage,

    allowing for flexible system integration.

    核心参数
    · ：Model ｜Output ｜Input Voltage ｜Ripple
    · ：Voltage；Current
    · TG-0.2P-5：0 to +0.2 kV；7.5 mA；5 V；10 mVp-p
    · TG-0.5P-5：0 to +0.5 kV；3 mA；10 mVp-p
    · TG-1P-5
    – 0 to +1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25P-5
    – 0 to +1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-0.2P-12：0 to +0.2 kV；7.5 mA；12 V；10 mVp-p
    · TG-0.5P-12：0 to +0.5 kV；3 mA；10 mVp-p
    · TG-1P-12
    – 0 to +1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25P-12
    – 0 to +1.25 kV
    – 1.2 mA
    – 7 mVp-p
    功能与特点
    · Ultra-compact footprint: Designed for high-density PCB mounting.
    · Low ripple noise: Achieves as low as 5 mVp-p (1 kV output models), ensuring high signal integrity for sensitive detectors.
    · Wide output range: Linearly variable output from 0 V to maximum voltage (0.2 kV to 2 kV options available).
    · Versatile integration: Supports external potentiometer or voltage control programming.
    · Multiple configurations: Available in positive or negative polarity with 5 V, 12 V, or 15 V input options.
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 TG-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    TG 高压电源 · 详细指标

    0.2 to 2 kV · 0.7 to 7.5 mA
    产品简介

    The Matsusada Precision TG series is a high-performance,

    compact high-voltage power supply module engineered specifically for Photomultiplier Tubes (PMT),

    完整技术指标
    · ：Model ｜Output ｜Input Voltage ｜Ripple
    · ：Voltage；Current
    · TG-0.2P-5：0 to +0.2 kV；7.5 mA；5 V；10 mVp-p
    · TG-0.5P-5：0 to +0.5 kV；3 mA；10 mVp-p
    · TG-1P-5
    – 0 to +1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25P-5
    – 0 to +1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-0.2P-12：0 to +0.2 kV；7.5 mA；12 V；10 mVp-p
    · TG-0.5P-12：0 to +0.5 kV；3 mA；10 mVp-p
    · TG-1P-12
    – 0 to +1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25P-12
    – 0 to +1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-1.5P-12：0 to +1.5 kV；1 mA；10 mVp-p
    · TG-2P-12
    – 0 to +2 kV
    – 0.7 mA
    – 20 mVp-p
    · TG-0.2P-15：0 to 0.2 kV；7.5 mA；15 V；10 mVp-p
    · TG-0.5P-15：0 to +0.5 kV；3 mA；10 mVp-p
    · TG-1P-15
    – 0 to +1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25P-15
    – 0 to +1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-1.5P-15：0 to +1.5 kV；1 mA；10 mVp-p
    · TG-2P-15
    – 0 to +2 kV
    – 0.7 mA
    – 20 mVp-p
    · ：Model ｜Output ｜Input Voltage ｜Ripple
    · ：Voltage；Current
    · TG-0.2N-5：0 to -0.2 kV；7.5 mA；5 V；10 mVp-p
    · TG-0.5N-5：0 to -0.5 kV；3 mA；10 mVp-p
    · TG-1N-5
    – 0 to -1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25N-5
    – 0 to -1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-0.2N-12：0 to -0.2 kV；7.5 mA；12 V；10 mVp-p
    · TG-0.5N-12：0 to -0.5 kV；3 mA；10 mVp-p
    · TG-1N-12
    – 0 to -1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25N-12
    – 0 to -1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-1.5N-12：0 to -1.5 kV；1 mA；10 mVp-p
    · TG-2N-12
    – 0 to -2 kV
    – 0.7 mA
    – 20 mVp-p
    · TG-0.2N-15：0 to -0.2 kV；7.5 mA；15 V；10 mVp-p
    · TG-0.5N-15：0 to -0.5 kV；3 mA；10 mVp-p
    · TG-1N-15
    – 0 to -1 kV
    – 1.5 mA
    – 5 mVp-p
    · TG-1.25N-15
    – 0 to -1.25 kV
    – 1.2 mA
    – 7 mVp-p
    · TG-1.5N-15：0 to -1.5 kV；1 mA；10 mVp-p
    · TG-2N-15
    – 0 to -2 kV
    – 0.7 mA
    – 20 mVp-p
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
