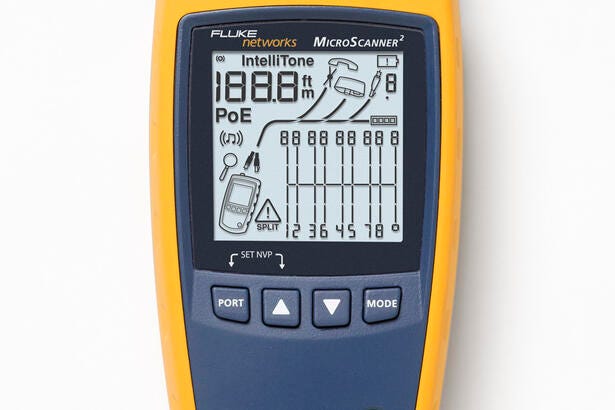

    The Fluke Networks MicroScanner2 Industrial Ethernet Cable Verifier performs continuity tests on RJ45, M12X, M12D, and M8D terminated cables in seconds and displays results graphically so you can see opens, shorts, and crossed wir。
    The Fluke Networks MicroScanner PoE Industrial Ethernet Cable Verifier performs continuity tests on RJ45, M12X, M12D, and M8D terminated cables in a few seconds and displays results graphically so you can see opens, shorts, and cr。

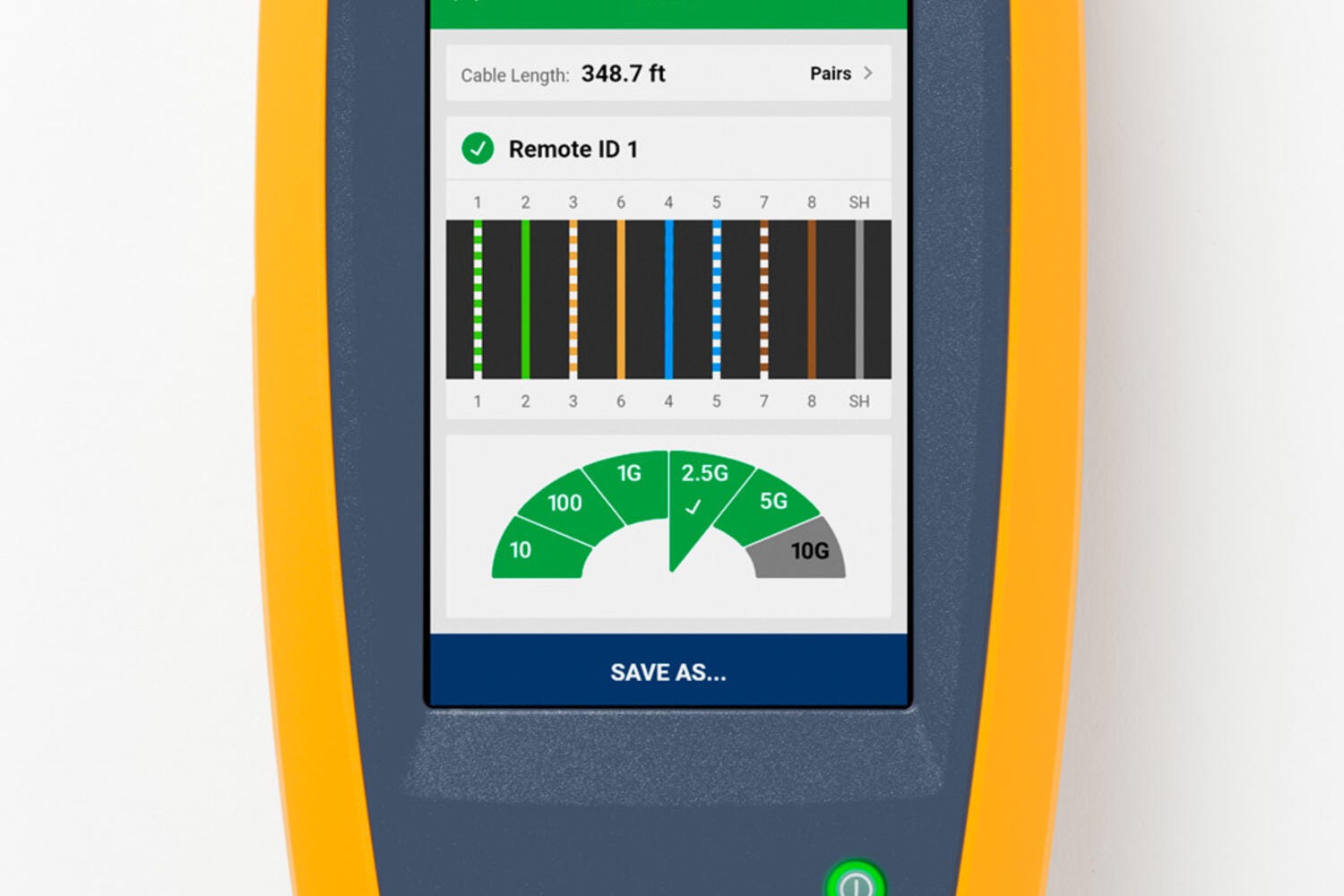

    The LinkIQ Industrial Ethernet Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-bas。

    MS-PoE-IE-KIT 工业以太网线缆验证仪组合套件|福禄克 (在产)

    The Fluke Networks MicroScanner PoE Industrial Ethernet cable verifier performs continuity tests on RJ45, M12X, M12D, and M8D terminated cables in a few seconds and displays results graphically so you can see opens, shorts, and cr。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 以太网测试仪

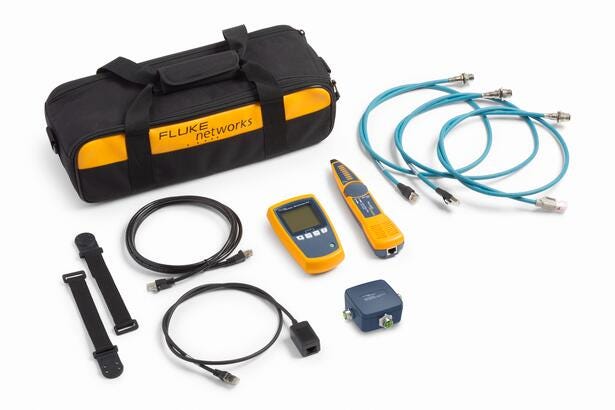

    MS-PoE-IE-KIT 工业以太网线缆验证仪组合套件

    IEC 61010-1 3rd Edition · IEC 61326-1
    产品定位

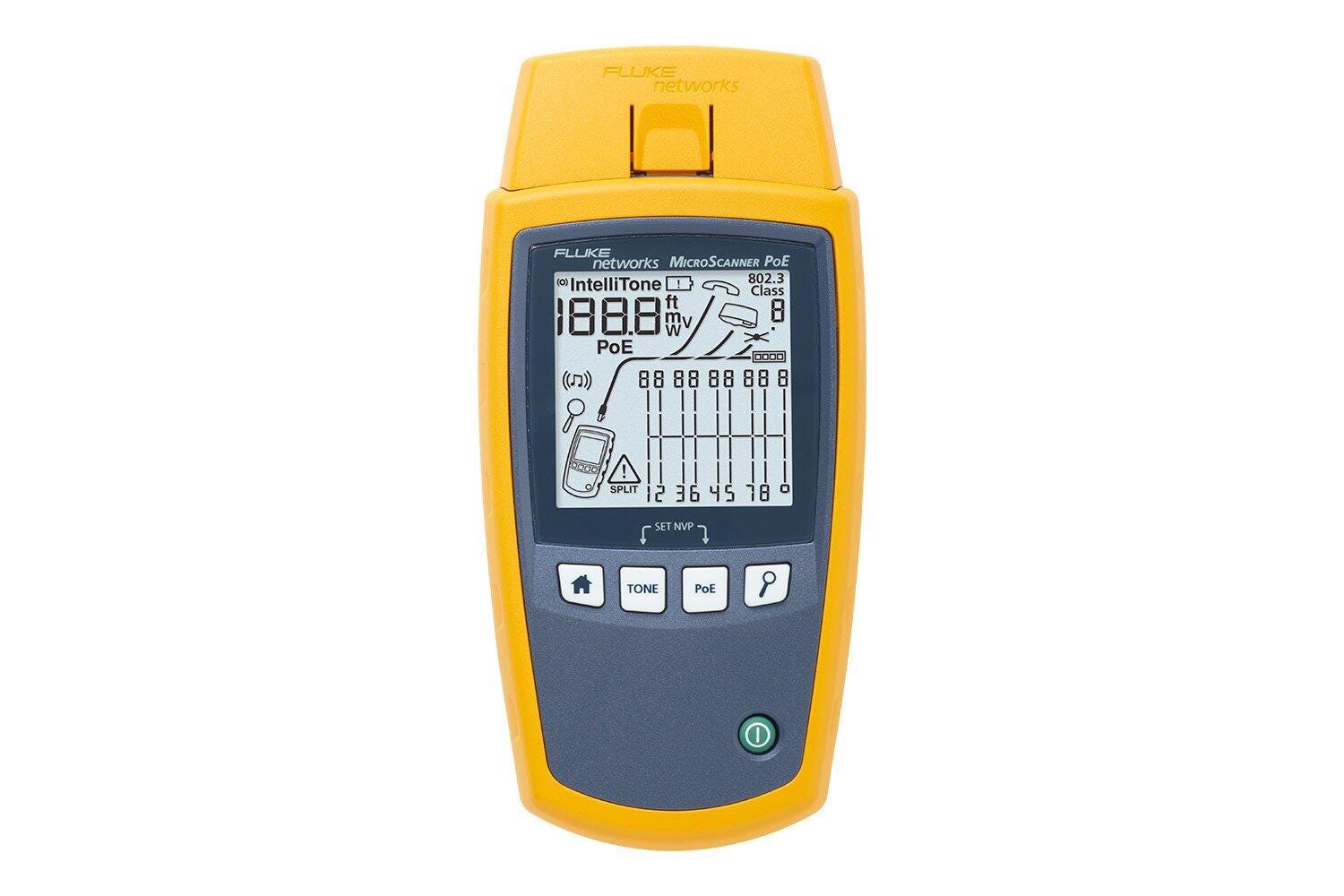

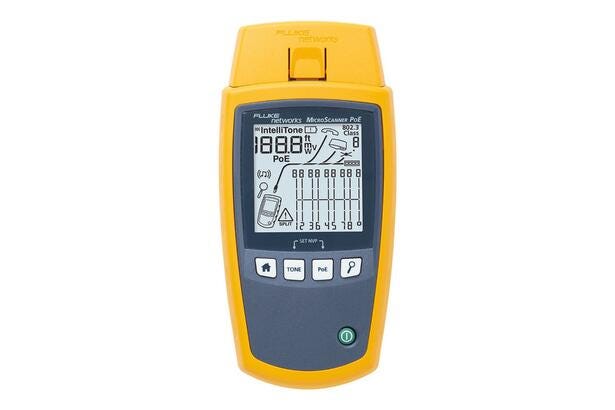

    The Fluke Networks MicroScanner PoE Industrial Ethernet cable verifier performs continuity tests on RJ45, M12X,

    M12D, and M8D terminated cables in a few seconds and displays results graphically so you can see opens, shorts,

    and cross wires.

    The MS-POE also quickly determines if a problem is caused by insufficient power or the powered device. Cable and power failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired.

    核心参数
    环境条件
    · Operating temperature：32 °F to 113 °F (0 °C to 45 °C)
    · Storage temperature：-4 °F to +140 °F (-20 °C to +60 °C)
    · Operating relative humidity (% RH without condensation)
    – 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
    · Shock and Vibration
    – Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
    · Safety：IEC 61010-1 3rd Edition
    · Altitude：4, 000 m; Storage: 12, 000 m
    · EMC：IEC 61326-1
    一般规格
    · Power
    – Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
    功能与特点
    · Perform Cable Testing on Industrial Ethernet Networks (including Ethernet/IP, Profinet, EtherCat based systems)
    · Display cable length, wiremap and distance to fault
    · Display network switch speeds up to 10G and PoE
    · Locate and trace cable with IntelliTone(TM) and Remote ID
    · Report PoE class (0-8)
    典型应用
    · 以太网性能测试
    · 链路认证测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 ms-poe-ie-kit-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 以太网测试仪

    MS-PoE-IE-KIT 工业以太网线缆验证仪组合套件 · 详细指标

    IEC 61010-1 3rd Edition · IEC 61326-1
    产品简介

    The Fluke Networks MicroScanner PoE Industrial Ethernet cable verifier performs continuity tests on RJ45, M12X,

    M12D, and M8D terminated cables in a few seconds and displays results graphically so you can see opens, shorts,

    完整技术指标
    环境条件
    · Operating temperature：32 °F to 113 °F (0 °C to 45 °C)
    · Storage temperature：-4 °F to +140 °F (-20 °C to +60 °C)
    · Operating relative humidity (% RH without condensation)
    – 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
    · Shock and Vibration
    – Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
    · Safety：IEC 61010-1 3rd Edition
    · Altitude：4, 000 m; Storage: 12, 000 m
    · EMC：IEC 61326-1
    一般规格
    · Power
    – Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
    · Dimensions and weight (with batteries installed and wiremap adapter attached)
    – 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner PoE: 10.6 oz (300 g)
    · Display：Monochrome LCD with backlight
    Test modes
    · Cable test
    – Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
    · PoE
    – MicroScanner PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices
    Performance specifications
    · Length test
    – Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair. Can determine actual NVP with known length of cable.
    · Wiremap test
    – Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
    · Ethernet port detection
    – MicroScanner PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps.
    · Tone generator
    – Supports toning and cable mapping with a Fluke Networks digital IntelliTone probe. Generates four tones compatible with typical analog probes. SmartTone feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
