    MS2-IE 工业以太网线缆验证仪

    IEC 61010-1 3rd Edition · IEC 61326-1
    产品定位

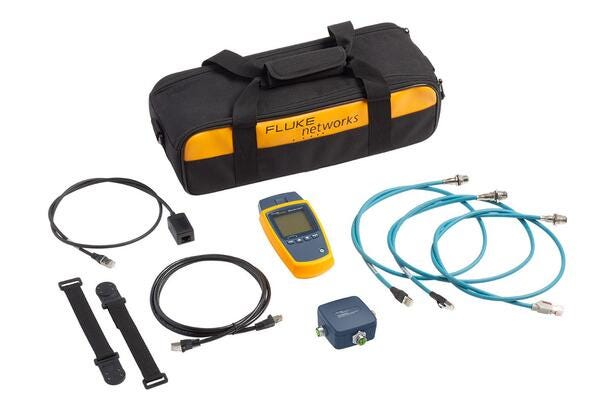

    The Fluke Networks MicroScanner2 Industrial Ethernet Cable Verifier performs continuity tests on RJ45, M12X,

    M12D, and M8D terminated cables in seconds and displays results graphically so you can see opens, shorts,

    and crossed wires.

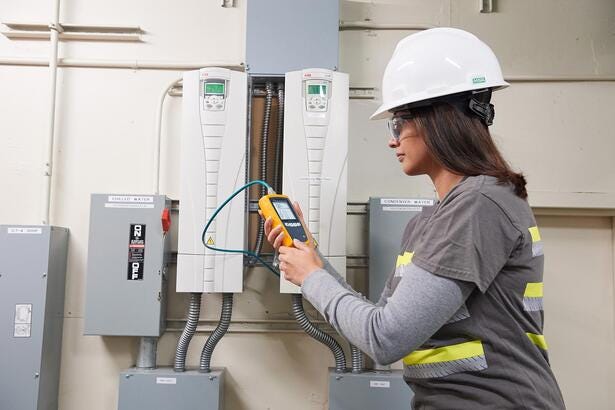

    It also reports which end of the cable has a problem and reports the distance to an open connection within the cable. Cable failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired.

    核心参数
    环境条件
    · Operating temperature：32 °F to 113 °F (0 °C to 45 °C)
    · Storage temperature：-4 °F to +140 °F (-20 °C to +60 °C)
    · Operating relative humidity (% RH without condensation)
    – 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
    · Shock and Vibration
    – Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
    · Safety：IEC 61010-1 3rd Edition
    · Altitude：4, 000 m; Storage: 12, 000 m
    · EMC：IEC 61326-1
    一般规格
    · Test connectors
    – Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner 2 : F-connector for coaxial cable.
    功能与特点
    · Graphical wire map, length, cable ID, and distance to fault
    · Test RJ11, RJ45, Coax, and Industrial Ethernet connector types
    · Locate cables with IntelliTone digital and analog toning
    · Verify 10/100/1000 Ethernet and detects PoE
    · Work in any enviroment with backlit LCD screen
    典型应用
    · 以太网性能测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 ms2-ie-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 以太网测试仪

    MS2-IE 工业以太网线缆验证仪 · 详细指标

    IEC 61010-1 3rd Edition · IEC 61326-1
    产品简介

    The Fluke Networks MicroScanner2 Industrial Ethernet Cable Verifier performs continuity tests on RJ45, M12X,

    M12D, and M8D terminated cables in seconds and displays results graphically so you can see opens, shorts,

    完整技术指标
    环境条件
    · Operating temperature：32 °F to 113 °F (0 °C to 45 °C)
    · Storage temperature：-4 °F to +140 °F (-20 °C to +60 °C)
    · Operating relative humidity (% RH without condensation)
    – 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
    · Shock and Vibration
    – Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
    · Safety：IEC 61010-1 3rd Edition
    · Altitude：4, 000 m; Storage: 12, 000 m
    · EMC：IEC 61326-1
    一般规格
    · Test connectors
    – Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner 2 : F-connector for coaxial cable.
    · Power
    – Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
    · Dimensions and weight (with batteries installed and wiremap adapter attached)
    – 3 in x 6.4 in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner 2 : 10.6 oz (300 g)
    · Display：Monochrome LCD with backlight
    Test modes
    · Cable test
    – Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. Displays results on one screen.
    · PoE
    – MicroScanner 2 : Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
    Performance specifications
    · Length test
    – Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner 2 ). Can determine actual NVP with known length of cable.
    · Wiremap test
    – Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
    · Ethernet port detection
    – MicroScanner 2 : Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps.
    · Tone generator
    – Supports toning and cable mapping with a Fluke Networks digital IntelliTone probe. Generates four tones compatible with typical analog probes. SmartTone feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
