    Fluke Corporation · 以太网测试仪

    LinkIQ-100-IE 工业以太网线缆与网络测试仪

    1 lbs 6 oz (624g) · USB type C · Random, 2 g, 5 Hz-500 Hz · 1 m drop, 6 sides
    1 lbs 6 oz (624g)
    Weight
    USB type C
    Host Interface
    Random, 2 g, 5 Hz-500 Hz
    Vibration
    1 m drop, 6 sides
    Drop
    305 m (1000 ft)
    Length (Maximum)
    User settable
    Nominal Velocity of Propagation (NVP)
    产品定位

    The LinkIQ Industrial Ethernet Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-based measurements and a wire map of the cable under test. It also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration - eliminating the need for another device. The LinkIQ Duo model adds Wi-Fi analysis to Wi-Fi 6E (where approved),

    including networks, channels,

    and access points plus warning of common configuration issues. The IE models allow identification of miswired and split pairs on RJ45,

    M12X, M12D, and M8D terminated cables supporting EtherNet/IP, PROFINET,

    EtherCAT and other Industrial Ethernet protocols. Additional features include Analog and Digital Toning,

    Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC.

    LinkIQ ensures that tested links meet performance requirements. It can measure lengths up to 1,

    000 feet (305 m) and provide distance to faults such as opens, shorts,

    and unterminated cable. The included remote ID provides a complete wire map of the cable pairs to identify miswired and split pairs.

    核心参数
    技术规格
    · Languages supported in UI
    – English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish
    · Weight：1 lbs 6 oz (624g)
    · Battery
    – Type：Lithium-ion, 3.6 V, 6400 mAh
    – Life：8 hours typical
    – Charge time：4.5 hours，Charging temperature range: 0 °C to 40 °C
    · Power Adapter
    – Input：100 to 240 V ac ±10%, 50/60Hz
    – Output：15 V dc, 2 A maximum，Class II
    · Host Interface：USB type C
    · Display：800 x 480 pixels color capacitive multi-touch
    · Dimensions：22 cm x 11 cm (8.5 in x 4.5 in)
    · Operating Temperature：0 °C to 45 °C (32 °F to 113 °F)
    · Storage Temperature：-10 °C to 60 °C (-14 °F to 140 °F)
    功能与特点
    · Performance testing of Industrial Ethernet cabling
    · Switch IP address, name, port / VLAN number, data rates + ping
    · Detect and test PoE power under load to Class 8
    · Wi-Fi analysis to Wi-Fi 6E：networks, channels, and access points (Duo Models Only)
    · Manage results and print reports from LinkWare PC
    典型应用
    · 以太网性能测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 linkiq-100-ie-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 以太网测试仪

    LinkIQ-100-IE 工业以太网线缆与网络测试仪 · 详细指标

    1 lbs 6 oz (624g) · USB type C · Random, 2 g, 5 Hz-500 Hz · 1 m drop, 6 sides
    产品简介

    The LinkIQ Industrial Ethernet Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-based measurements and a wire map of the cable under test. It also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration - eliminating the need for another device. The LinkIQ Duo model adds Wi-Fi analysis to Wi-Fi 6E (where approved),

    including networks, channels,

    完整技术指标
    技术规格
    · Languages supported in UI
    – English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish
    · Weight：1 lbs 6 oz (624g)
    · Battery
    – Type：Lithium-ion, 3.6 V, 6400 mAh
    – Life：8 hours typical
    – Charge time：4.5 hours，Charging temperature range: 0 °C to 40 °C
    · Power Adapter
    – Input：100 to 240 V ac ±10%, 50/60Hz
    – Output：15 V dc, 2 A maximum，Class II
    · Host Interface：USB type C
    · Display：800 x 480 pixels color capacitive multi-touch
    · Dimensions：22 cm x 11 cm (8.5 in x 4.5 in)
    · Operating Temperature：0 °C to 45 °C (32 °F to 113 °F)
    · Storage Temperature：-10 °C to 60 °C (-14 °F to 140 °F)
    · Operating Relative Humidity
    – 0 % to 90 %, 0 °C to 35 °C 0 % to 70 %, 35 °C to 45 °C
    · Operating Altitude：4, 000 m 3, 200 m with ac adapter
    · Vibration：Random, 2 g, 5 Hz-500 Hz
    · Drop：1 m drop, 6 sides
    · Diagnostic Protocols
    – Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)
    · IP Address Setup
    – LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
    · IP Ping Test Results
    – Four response time results for target, DNS Server(s), Gateway, plus average and number lost
    · Nearest Device Diagnostics (If available through diagnostic protocols)
    – Switch Name / IP + MAC Address, Port Number, VLAN Name, Advertised Data Rates, Advertised Duplex
    · Power Over Ethernet Compatibility
    – Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP
    · Power Over Ethernet Diagnostics
    – Advertised Power Class (0-8), Advertised Available Power, Powered Pairs, Diagnostics for both Single and Dual signatures
    · Power Over Ethernet Measurements：Loaded Voltage (V), Loaded Power (W)
    · Port Blink：Blink the light of the connected port
    · Test Port
    – Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs
    · Commissioning Autotests
    – 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m
    · Cable Types
    – Balanced twisted-pair cabling
    – Unshielded twisted-pair
    – Screened twisted-pair
    – 2-pair and/or 4-pair
    – Adapter cables for M8D, M12D, M12X

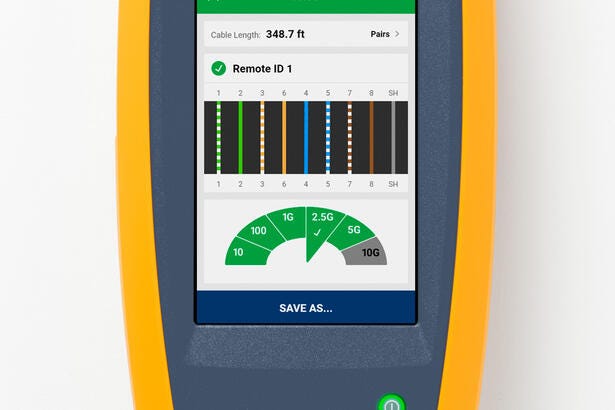

    · Wire Map-Only Tests
    – Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed: 1 second for lengths < 120 m
    · Length (Maximum)：305 m (1000 ft)
    · Nominal Velocity of Propagation (NVP)：User settable
    · Tone Generator
    – Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analog probes.

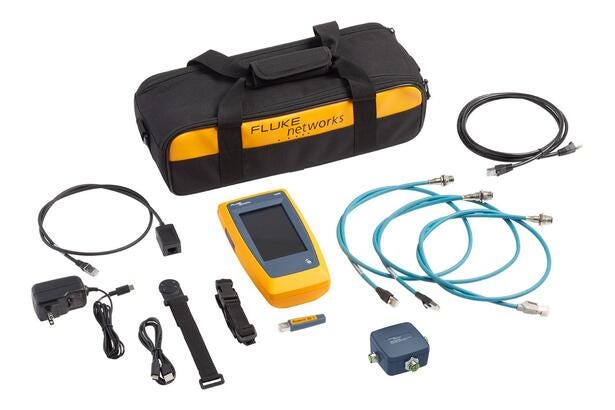

    · Remote ID Locators
    – Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets.
    · Supported Wireless Standards
    – 802.11b, 802.11a, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6/6E). Additionally, the tester will report the presence of future standards, such as 802.11be, if the standard's presence can be decoded in a supported beacon.
    · Frequencies Supported
    – Frequencies of channels received and transmitted (where allowed by country regulations): 2.4 GHz band: 2.402 to 2.482 GHz (channel 1 to channel 13)
    – 5 GHz band：5.170 to 5.330 GHz, 5.490 to 5.730 GHz, 5.735 to 5.835 GHz (channel 36 to channel 165)
    – 6 GHz band：5.945 to 7.125 GHz (channel 1 to channel 233). NOTE: The tester transmits only on the frequencies allowed in the country where it is sold.
    · Country certifications
    – AE, AU, AR, BR, CA, CL, CN, IN, JP, KR, KW, MY, MX, NZ, PH, SG, TH, TW, UK, US, ZA, plus the European Union (Completed or in process. Contact your local Fluke representative for details.)
    · Network Tests
    – Number and name (BSSID) of available access points, signal strength, security type, IEEE 802.11 standard supported
    · Access Point Tests
    – Networks supported / country code, BSSID, signal strength, band/channel/bandwidth, IEEE 802.11 standards supported, security types, TX/RX rates
    · Channel Tests
    – Utilization, Number / signal strength of access points, overlap
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
