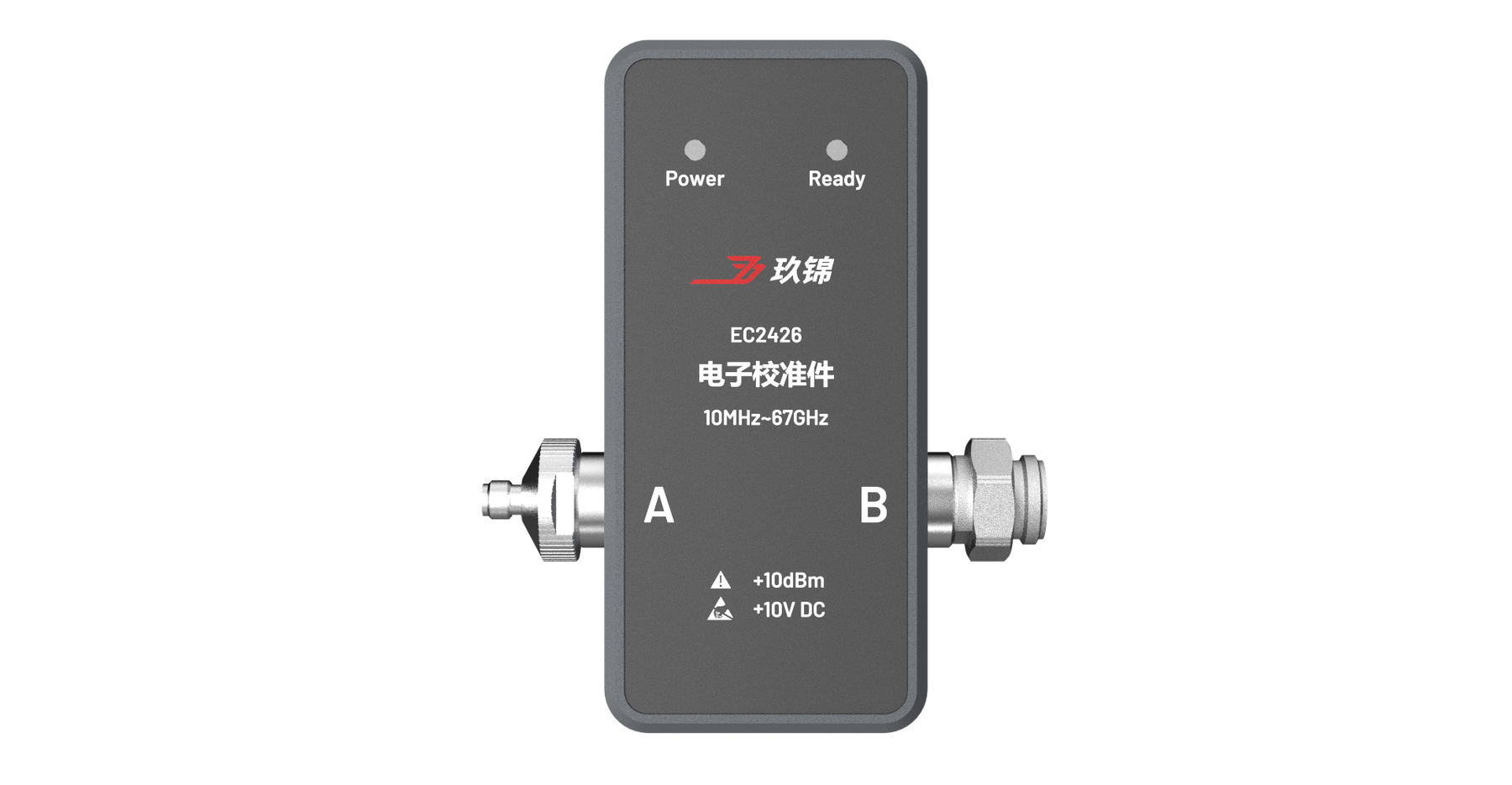

    9 kHz 至 67 GHz 电子校准件 · N 型 / 3.5 / 2.92 / 2.4 / 1.85 mm 接口 · 2 端口 / 4 端口可选

    同厂商产品

    The Fluke MDA 550 Motor-Drive Analyzer saves time and eliminates the hassle of setting up complex measurements, while simplifying motor-drive troubleshooting. Simply select a test and the step-by-step guided measurements show you 。
    As the first two-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V, the Fluke ScopeMeter 190-102/S combines an unprecedented level of performance, ruggedness, and portability with 100 MHz bandwidth and real-time sa。
    Fluke 190 Series III ScopeMeter Test Tools are engineered to go where you go, and tackle just about any troubleshooting job along the way. These CAT III 1000 V/CAT IV 600V rated test tools combine rugged portability with the high 。

    120B 10 kHz手持式示波表|福禄克 (在产)

    The compact ScopeMeter 120B Series, is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It’s a truly integrated test tool, putting the functi。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 示波器

    120B 手持式示波表

    5 mV to 200 V/div · 10 kHz · A, -A, B, -B · Normal, Single, Roll · A, B
    5 mV to 200 V/div
    Sensitivity
    10 kHz
    Analog bandwidth limiter
    A, -A, B, -B
    Display modes
    Normal, Single, Roll
    Scope modes
    A, B
    Source
    0.5 divisions or 5 mV
    Sensitivity A and B @ DC to 5 MHz
    产品定位

    The compact ScopeMeter 120B Series,

    is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It’s a truly integrated test tool,

    putting the functions of an oscilloscope, multimeter, and high-speed recorder into one,

    easy-to-use instrument. The ScopeMeter 120B Series also integrates with Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration,

    data analysis, and archiving of critical test information.

    Troubleshoot faster and get the answers you need to keep systems up and running. Display waveforms with Connect and View trigger and setup technology. Automatically view related numerical measurements using Fluke IntellaSet technology,

    all without making manual measurement adjustments. With Recorder Event Detect capabilities,

    elusive intermittent events are captured and logged for easy viewing and analysis.

    核心参数
    Vertical
    · Frequency response - dc coupled
    – With STL120-IV 1:1：Without probes and test leads (with BB120)；DC to 12.5 MHz (-3：123B: dc to 20 MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB)
    · Frequency response - dc coupled
    – With STL120-IV 1:1：With VP41 10:1 Probe；DC to 12.5 MHz (-3：123B: dc to 20MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB)
    · Frequency response - ac coupled (lf roll off)
    – With STL120-IV 1:1：Without probes and test leads；DC to 12.5 MHz (-3：< 10 Hz (-3 dB)
    · Frequency response - ac coupled (lf roll off)
    – With STL120-IV 1:1：With STL120-IV 1:1 shielded test leads；DC to 12.5 MHz (-3：< 10 Hz (-3 dB)
    · Frequency response - ac coupled (lf roll off)
    – With STL120-IV 1:1：With VP41 10:1 Probe；DC to 12.5 MHz (-3：< 10 Hz (-3 dB)
    · Rise time, excluding probes, test leads：123B < 17.5 ns 124B and 125B < 8.75 ns
    · Input impedance
    – With STL120-IV 1:1：Without probes and test leads；DC to 12.5 MHz (-3：1 MΩ//20 pF
    · Input impedance
    – With STL120-IV 1:1：With BB120；DC to 12.5 MHz (-3：1 MΩ//24 pF
    · Input impedance
    – With STL120-IV 1:1：With STL120-IV 1:1 shielded test leads；DC to 12.5 MHz (-3：1 MΩ//230 pF
    功能与特点
    · Dual-input digital oscilloscope and multimeter in a ScopeMeter test tool
    · Available with a 40 MHz or 20 MHz oscilloscope bandwidth
    · Features Connect-and-View trigger simplicity for hands-off operation
    · Includes IntellaSet technology to automatically and intelligently adjust numerical readout based on measured signal
    · Provides a dual-input waveform and meter reading recorder for trending data over extended periods
    典型应用
    · 嵌入式调试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 120b-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 示波器

    120B 手持式示波表 · 详细指标

    5 mV to 200 V/div · 10 kHz · A, -A, B, -B · Normal, Single, Roll · A, B
    产品简介

    The compact ScopeMeter 120B Series,

    is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It’s a truly integrated test tool,

    完整技术指标
    Vertical
    · Frequency response - dc coupled
    – With STL120-IV 1:1：Without probes and test leads (with BB120)；DC to 12.5 MHz (-3：123B: dc to 20 MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB)
    · Frequency response - dc coupled
    – With STL120-IV 1:1：With VP41 10:1 Probe；DC to 12.5 MHz (-3：123B: dc to 20MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB)
    · Frequency response - ac coupled (lf roll off)
    – With STL120-IV 1:1：Without probes and test leads；DC to 12.5 MHz (-3：< 10 Hz (-3 dB)
    · Frequency response - ac coupled (lf roll off)
    – With STL120-IV 1:1：With STL120-IV 1:1 shielded test leads；DC to 12.5 MHz (-3：< 10 Hz (-3 dB)
    · Frequency response - ac coupled (lf roll off)
    – With STL120-IV 1:1：With VP41 10:1 Probe；DC to 12.5 MHz (-3：< 10 Hz (-3 dB)
    · Rise time, excluding probes, test leads：123B < 17.5 ns 124B and 125B < 8.75 ns
    · Input impedance
    – With STL120-IV 1:1：Without probes and test leads；DC to 12.5 MHz (-3：1 MΩ//20 pF
    · Input impedance
    – With STL120-IV 1:1：With BB120；DC to 12.5 MHz (-3：1 MΩ//24 pF
    · Input impedance
    – With STL120-IV 1:1：With STL120-IV 1:1 shielded test leads；DC to 12.5 MHz (-3：1 MΩ//230 pF
    · Input impedance
    – With STL120-IV 1:1：With VP41 10:1 Probe；DC to 12.5 MHz (-3：5 MΩ//15.5 pF
    · Sensitivity：5 mV to 200 V/div
    · Analog bandwidth limiter：10 kHz
    · Display modes：A, -A, B, -B
    · Max. input voltage A and B
    – With STL120-IV 1:1：Direct, with test leads, or with VP41 Probe；DC to 12.5 MHz (-3：600 Vrms Cat IV, 750 Vrms maximum voltage.
    · Max. input voltage A and B
    – With STL120-IV 1:1：With BB120；DC to 12.5 MHz (-3：600 Vrms
    · Max. floating voltage, from any terminal to ground：600 Vrms Cat IV, 750 Vrms up to 400Hz
    Horizontal
    · Scope modes：Normal, Single, Roll
    · Ranges (normal)
    – With STL120-IV 1:1：Equivalent sampling；DC to 12.5 MHz (-3：123B: 20 ns to 500 ns/div,
    · Ranges (normal)
    – With STL120-IV 1:1：Equivalent sampling；DC to 12.5 MHz (-3：124B and 125B: 10 ns to 500 ns/div
    · Ranges (normal)
    – With STL120-IV 1:1：Real time sampling；DC to 12.5 MHz (-3：1 μs to 5 s/div
    · Ranges (normal)
    – With STL120-IV 1:1：Single (real time)；DC to 12.5 MHz (-3：1 μs to 5 s/div
    · Ranges (normal)
    – With STL120-IV 1:1：Roll (real time)；DC to 12.5 MHz (-3：1s to 60 s/div
    · Sampling rate (for both channels simultaneously)
    – With STL120-IV 1:1：Equivalent sampling (repetitive signals)；DC to 12.5 MHz (-3：Up to 4 GS/s
    · Sampling rate (for both channels simultaneously)
    – With STL120-IV 1:1：Real time sampling 1 μs to 60 s/div；DC to 12.5 MHz (-3：40 MS/s
    Trigger
    · Source：A, B
    · Sensitivity A and B @ DC to 5 MHz：0.5 divisions or 5 mV
    · Sensitivity A and B @ 40 MHz：123B: 4 divisions
    · Sensitivity A and B @ 40 MHz：124B and 125B: 1.5 divisions
    · Sensitivity A and B @ 60 MHz：123B: N/A
    · Sensitivity A and B @ 60 MHz：124B and 125B: 4 divisions
    · Slope：Positive, negative
    Advanced scope functions
    · Display modes
    – Normal：Smooth；Captures up to 25 ：Suppresses noise from a waveform
    · Display modes
    – Normal：Glitch off；Captures up to 25 ：Does not capture glitches between samples
    · Display modes
    – Normal：Envelope；Captures up to 25 ：Records and displays the minimum and maximum of waveforms over time
    · Auto set (Connect-and-View)
    – Continuous fully automatic adjustments of amplitude, time base, trigger levels, trigger gap, and hold-off. Manual override by user adjustment of amplitude, time base, or trigger level.
    DC voltage (VDC)
    · Ranges：500 mV, 5 V, 50 V, 500 V, 750 V
    · Accuracy：±(0.5% +5 counts)
    · Common mode rejection (CMRR)：>100 dB @ dc, >60 dB @ 50, 60, or 400 Hz
    · Full scale reading：5000 counts
    True-rms voltages (V ac and V ac+dc)
    · Ranges：500 mV, 5 V, 50 V, 500 V, 750 V
    · Accuracy for 5% to 100% of range (DC coupled) DC to 60 Hz (V ac+dc)：±(1% +10 counts)
    · Accuracy for 5% to 100% of range (DC coupled)：1 Hz to 60 Hz (V ac)；±(1% +10 counts)
    · Accuracy for 5% to 100% of range (AC or dc coupled)：60 Hz to 20 kHz；±(2.5% +15 counts)
    · DC rejection (only VAC)：>50 dB
    · Common mode rejection (CMRR)：>100 dB @ dc
    · Common mode rejection (CMRR)：>60 dB @ 50, 60, or 400 Hz
    · Full scale reading
    – 5000 counts, reading is independent of any signal crest factor.
    Peak
    · Modes：Max peak, Min peak, or pk-to-pk
    · Ranges：500 mV, 5 V, 50 V, 500 V, 2200 V
    · Accuracy Accuracy Max peak or Min peak：5% of full scale
    · Accuracy Accuracy Peak-to-Peak：10% of full scale
    · Full scale reading：500 counts
    Frequency (Hz)
    · Ranges
    – 123B: 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 10 MHz, and 50 MHz
    · Ranges
    – 124B and 125B: 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 10 MHz, and 70 MHz
    · Frequency range：15 Hz (1 Hz) to 50 MHz in continuous autoset
    · Accuracy @1 Hz to 1 MHz：±(0.5% +2 counts)
    · Full scale reading：10, 000 counts
    RPM
    · Max reading：50.00 kRPM
    · Accuracy：±(0.5% +2 counts)
    Duty cycle (PULSE)
    · Range：2% to 98%
    · Frequency range：15 Hz (1 Hz) to 30 MHz in continuous autoset
    Pulse width (PULSE)
    · Frequency range：15 Hz (1 Hz) to 30 MHz in continuous autoset
    · Full scale reading：1000 counts
    Amperes (AMP)
    · With current clamp Ranges：Same as V dc, V ac, V ac+dc, or PEAK
    · With current clamp Scale factors
    – 0.1 mV/A, 1 mV/A, 10 mV/A, 100 mV/A, 400 mV/A, 1 V/A, 10 mV/mA
    · With current clamp Accuracy
    – Same as V dc, V ac, V ac+dc, or PEAK (add current clamp uncertainty)
    Temperature (TEMP) with optional temperature probe
    · Range：200 °C/div (200 °F/div)
    · Scale factor：1 mV/°C and 1 mV/°F
    · Accuracy：As V dc (add temp. probe uncertainty)
    Decibel (dB)
    · 0 dBV：1 V
    · 0 dBm (600 Ω /50 Ω)：1 mW referenced to 600 Ω or 50 Ω
    · dB on：V dc, V ac, or Vac+dc
    · Full scale reading：1000 counts
    Crest factor (CREST)
    · Range：1 to 10
    · Full scale reading：90 Counts
    Phase
    · Modes：A to B, B to A
    · Range：0 to 359 degrees
    · Resolution：1 degree
    Power (125B only)
    · Configurations
