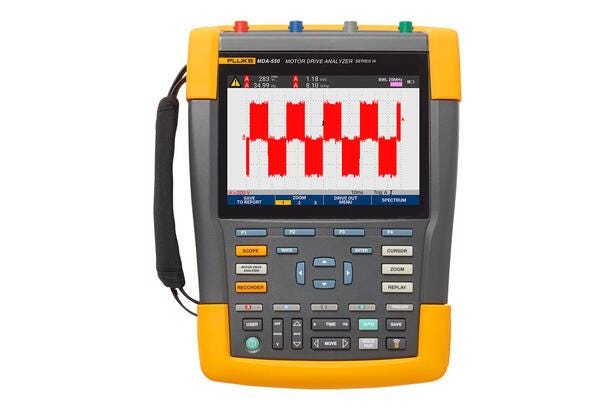

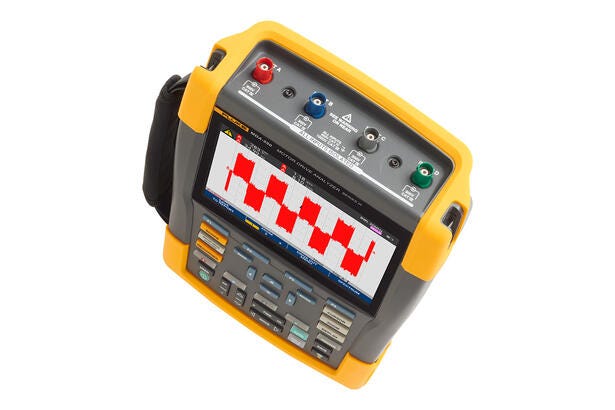

    MDA-550 电机驱动分析仪|福禄克 (在产)

    The Fluke MDA 550 Motor-Drive Analyzer saves time and eliminates the hassle of setting up complex measurements, while simplifying motor-drive troubleshooting. Simply select a test and the step-by-step guided measurements show you 。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 示波器

    MDA-550 电机驱动分析仪

    V ac+dc；A ac+dc；Hz · V ac+dc；A ac+dc；Hz · V pk-to-pk；V peak max
    V ac+dc；A ac+dc；Hz
    Phase-phase V-A-Hz
    V ac+dc；A ac+dc；Hz
    Phase-ground V-A-Hz
    V pk-to-pk；V peak max
    DC V dc
    V pk-to-pk；Hz
    Ripple V ac
    V pk-to-pk
    Shaft voltage Events off
    1000 V
    Maximum voltage with 10:1 or 100:1 probe
    产品定位

    The Fluke MDA 550 Motor-Drive Analyzer saves time and eliminates the hassle of setting up complex measurements,

    while simplifying motor-drive troubleshooting. Simply select a test and the step-by-step guided measurements show you where to make voltage and current connections,

    while the preset measurement profiles ensure you will capture all the data you need for each critical motor-drive section—from the input to the output,

    the DC bus, and the motor itself. From basic to advanced measurements, the MDA-550 has you covered,

    and with a built-in report generator you can quickly and easily generate as-found,

    and as-left reports with confidence.

    The MDA-550 is the ideal portable motor-drive analysis test tool and can help safely locate and troubleshoot typical problems on inverter type motor-drive systems.

    核心参数
    Voltage and current
    · Phase-phase V-A-Hz：V ac+dc；A ac+dc；Hz
    · Phase-phase
    – Sub group：V peak
    – Reading 1：V peak max
    – Reading 2：V peak min
    – Reading 3：V pk-to-pk
    – Reading 4：Crest factor
    · Phase-phase
    – Sub group：A peak
    – Reading 1：A peak max
    – Reading 2：A peak min
    – Reading 3：A pk-to-pk
    – Reading 4：Crest factor
    · Phase-ground V-A-Hz：V ac+dc；A ac+dc；Hz
    · Phase-ground
    – Sub group：V peak
    – Reading 1：V peak max
    – Reading 2：V peak min
    – Reading 3：V pk-to-pk
    – Reading 4：Crest factor
    · Phase-ground
    – Sub group：A peak
    – Reading 1：A peak max
    – Reading 2：A peak min
    – Reading 3：A pk-to-pk
    – Reading 4：Crest factor
    · Voltage unbalance
    – Sub group：Unbalance
    – Reading 1：V ac+dc
    – Reading 2：V ac+dc
    – Reading 3：V ac+dc
    – Reading 4：Unbalance
    · Voltage unbalance Peak
    – V pk-to-pk
    – V pk-to-pk
    – V pk-to-pk
    · Current unbalance
    – Sub group：Unbalance
    – Reading 1：A ac+dc
    – Reading 2：A ac+dc
    – Reading 3：A ac+dc
    – Reading 4：Unbalance
    功能与特点
    · Guided testing with graphical step-by-step connection diagrams
    · Preset measurement profiles reduce setup complexity
    · Built-in report writing capabilities
    · Easily produce as-found and as-left troubleshooting reports
    典型应用
    · 功率器件测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 mda-550-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 示波器

    MDA-550 电机驱动分析仪 · 详细指标

    V ac+dc；A ac+dc；Hz · V ac+dc；A ac+dc；Hz · V pk-to-pk；V peak max
    产品简介

    The Fluke MDA 550 Motor-Drive Analyzer saves time and eliminates the hassle of setting up complex measurements,

    while simplifying motor-drive troubleshooting. Simply select a test and the step-by-step guided measurements show you where to make voltage and current connections,

    完整技术指标
    Voltage and current
    · Phase-phase V-A-Hz：V ac+dc；A ac+dc；Hz
    · Phase-phase
    – Sub group：V peak
    – Reading 1：V peak max
    – Reading 2：V peak min
    – Reading 3：V pk-to-pk
    – Reading 4：Crest factor
    · Phase-phase
    – Sub group：A peak
    – Reading 1：A peak max
    – Reading 2：A peak min
    – Reading 3：A pk-to-pk
    – Reading 4：Crest factor
    · Phase-ground V-A-Hz：V ac+dc；A ac+dc；Hz
    · Phase-ground
    – Sub group：V peak
    – Reading 1：V peak max
    – Reading 2：V peak min
    – Reading 3：V pk-to-pk
    – Reading 4：Crest factor
    · Phase-ground
    – Sub group：A peak
    – Reading 1：A peak max
    – Reading 2：A peak min
    – Reading 3：A pk-to-pk
    – Reading 4：Crest factor
    · Voltage unbalance
    – Sub group：Unbalance
    – Reading 1：V ac+dc
    – Reading 2：V ac+dc
    – Reading 3：V ac+dc
    – Reading 4：Unbalance
    · Voltage unbalance Peak
    – V pk-to-pk
    – V pk-to-pk
    – V pk-to-pk
    · Current unbalance
    – Sub group：Unbalance
    – Reading 1：A ac+dc
    – Reading 2：A ac+dc
    – Reading 3：A ac+dc
    – Reading 4：Unbalance
    · Current unbalance Peak
    – A pk-to-pk
    – A pk-to-pk
    – A pk-to-pk
    Motor drive DC bus
    · DC V dc：V pk-to-pk；V peak max
    · Ripple V ac：V pk-to-pk；Hz
    Motor drive output
    · Voltage and current (filtered)
    – Sub group：V-A-Hz
    – Reading 1：V PWM
    – Reading 2：A ac+dc
    – Reading 3：Hz
    – Reading 4：V/Hz
    · Voltage and current (filtered)
    – Sub group：V peak
    – Reading 1：V peak max
    – Reading 2：V peak min
    – Reading 3：V pk-to-pk
    – Reading 4：Crest factor
    · Voltage and current (filtered)
    – Sub group：A peak
    – Reading 1：A peak max
    – Reading 2：A peak min
    – Reading 3：A pk-to-pk
    – Reading 4：Crest factor
    · Voltage unbalance
    – Sub group：Unbalance
    – Reading 1：V PWM
    – Reading 2：V PWM
    – Reading 3：V PWM
    – Reading 4：Unbalance
    · Voltage unbalance Peak
    – V pk-to-pk
    – V pk-to-pk
    – V pk-to-pk
    · Current unbalance
    – Sub group：Unbalance
    – Reading 1：A ac+dc
    – Reading 2：A ac+dc
    – Reading 3：A ac+dc
    – Reading 4：Unbalance
    · Current unbalance Peak
    – A pk-to-pk
    – A pk-to-pk
    – A pk-to-pk
    Voltage modulation
    · Phase-phase
    – Sub group：Zoom 1
    – Reading 1：V PWM
    – Reading 2：V pk-to-pk
    – Reading 3：Hz
    – Reading 4：V/Hz
    · Phase-phase Zoom 2
    – V peak max
    – V peak min
    – Delta V
    · Phase-phase
    – Sub group：Zoom 3 peak
    – Reading 1：V peak max
    – Reading 2：Delta V/s
    – Reading 3：Risetime peak
    – Reading 4：Overshoot
    · Phase-phase
    – Sub group：Zoom 3 level
    – Reading 1：Delta V
    – Reading 2：Delta V/s
    – Reading 3：Risetime level
    – Reading 4：Overshoot
    · Phase-ground
    – Sub group：Zoom 1
    – Reading 1：V PWM
    – Reading 2：V pk-to-pk
    – Reading 3：V peak max
    – Reading 4：V peak min
    · Phase-ground
    – Sub group：Zoom 2
    – Reading 1：V Peak max
    – Reading 2：V peak min
    – Reading 3：Delta V
    – Reading 4：Hz
    · Phase-ground
    – Sub group：Zoom 3 peak
    – Reading 1：V Peak max
    – Reading 2：Delta V/s
    – Reading 3：Risetime peak
    – Reading 4：Overshoot
    · Phase-ground
    – Sub group：Zoom 3 level
    – Reading 1：Delta V
    – Reading 2：Delta V/s
    – Reading 3：Risetime level
    – Reading 4：Overshoot
