    Fluke Corporation · 示波器

    190-102/S 手持式示波表

    100 MHz · 100 MHz: 2 channels · 1.25 GS/s · 2 scope plus DMM input
    100 MHz
    Bandwidth
    100 MHz: 2 channels
    Number of channels
    1.25 GS/s
    Real-time sample rate
    2 scope plus DMM input
    Inputs
    5 ns - 2 min/div
    Timebase range
    2 mV-100 V/div
    Input sensitivity
    产品定位

    As the first two-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V,

    the Fluke ScopeMeter 190-102/S combines an unprecedented level of performance, ruggedness,

    and portability with 100 MHz bandwidth and real-time sampling rates up to 1.25 GS/s and 200 ps resolution to capture noise and other disturbances. This model features deep memory up to 10,

    000 samples per channel; so you can examine very small parts of the waveform in detail,

    and it is IP-51 rated to withstand dust, drips, humidity,

    and wide temperature variations. Fluke ScopeMeter test tools are hand-held battery operated,

    designed to meet the demands of field service professionals.

    The Fluke ScopeMeter 190-102/S portable scope is double-insulated two-channel floating oscilloscopes safety rated for measurements in CAT III 1000 V/CAT IV 600 V environments.

    核心参数
    技术规格
    · Bandwidth：100 MHz
    · Number of channels：100 MHz: 2 channels
    · Real-time sample rate：1.25 GS/s
    · Inputs：2 scope plus DMM input
    · Independently floating isolated inputs
    – Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
    · Timebase range：5 ns - 2 min/div
    · Input sensitivity：2 mV-100 V/div
    · Trigger types
    – Connect-and-View, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
    · Trigger source：Any scope input channel
    功能与特点
    · Two electrically isolated inputs
    · CAT III 1000 V / CAT IV 600 V safety rated
    · 100 MHz bandwidth model
    · Deep memory：10,000 samples per channel waveform capture so you can zoom in on the details
    · Dedicated 5000 Count digital multimeter in 2-channel models
    · Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
    · ScopeRecord roll mode, capture waveform sample data for up to 48 hours
    · TrendPlot, trend measurement readings for up to 22 days
    典型应用
    · 嵌入式调试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-190-ii-190-102-s-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 示波器

    190-102/S 手持式示波表 · 详细指标

    100 MHz · 100 MHz: 2 channels · 1.25 GS/s · 2 scope plus DMM input
    产品简介

    As the first two-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V,

    the Fluke ScopeMeter 190-102/S combines an unprecedented level of performance, ruggedness,

    完整技术指标
    技术规格
    · Bandwidth：100 MHz
    · Number of channels：100 MHz: 2 channels
    · Real-time sample rate：1.25 GS/s
    · Inputs：2 scope plus DMM input
    · Independently floating isolated inputs
    – Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
    · Timebase range：5 ns - 2 min/div
    · Input sensitivity：2 mV-100 V/div
    · Trigger types
    – Connect-and-View, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
    · Trigger source：Any scope input channel
    · Glitch capture：8 ns
    · Scope measurements：Cursor: 7
    · Scope measurements：Automatic: 30
    · Maximum record length：ScopeRecord mode: 30, 000 pts
    · Maximum record length：Scope mode: 10, 000 pts per input
    · Persistence
    – Digital persistence giving analog oscilloscope-like waveform decay
    · Waveform compare
    – Waveform reference with automatic Pass/Fail testing
    DMM Specification
    · Meter inputs (also used as External Trigger Input for the Oscilloscope Mode)
    – 4 mm banana inputs, fully isolated from scope inputs and from scope ground
    · Maximum resolution：5000 counts
    · Measurements
    – VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
    · Memory：Screen + Setup: 30
    · Memory：> Recording: 10
    · Display：153 mm full color LCD with fast update rate
    环境条件
    · Operating temperature：0 °C to 40 °C Including Batteries
    · Operating temperature：0 °C to 50 °C Excluding Batteries
    · Storage temperature：-20 °C to +60 °C
    · Operating altitude
    – Up to 2, 000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
    · Operating altitude
    – Up to 3, 000 m (10, 000 ft) for CAT III 600 V, CAT II 1000 V
    安全规格
    · Electrical safety：1, 000 V CAT III/600 V CAT IV (EN61010-1)
    机械与一般规格
    · Size：270 x 190 x 70 mm
    · Weight：2.2 kg
    · Warranty
    – 3-years on main instrument, 1-year on accessories
    · Li-Ion battery
    – BP290 2400 mAh battery up to 4 hours included standard
    随机附件
    · Two channel models：VPS410 Voltage Probe Sets (one red, one blue)
    · Two channel models
    – TL175 TwistGuard safety designed Test Lead Set (red and black)
    · Two channel models：BC190 Battery Charger/mains Adapter
    · Two channel models：BP290 2400 mAh Li-ion Battery
    · Two channel models：> Handstrap (affixed to instrument)
    · Two channel models：Hangstrap
    · Two channel models：Multi-Language User Manuals on CD-Rom
    · Two channel models
    – FlukeView ScopeMeter demo package (restricted functionality)

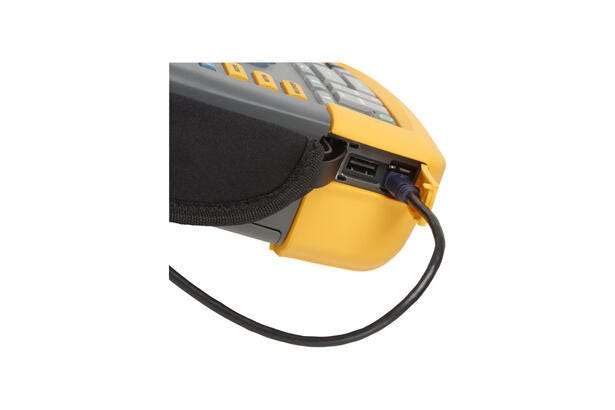

    · Two channel models：USB Interface Cable
    · Warranty
    – Three years on main instrument, one year on accessories
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
